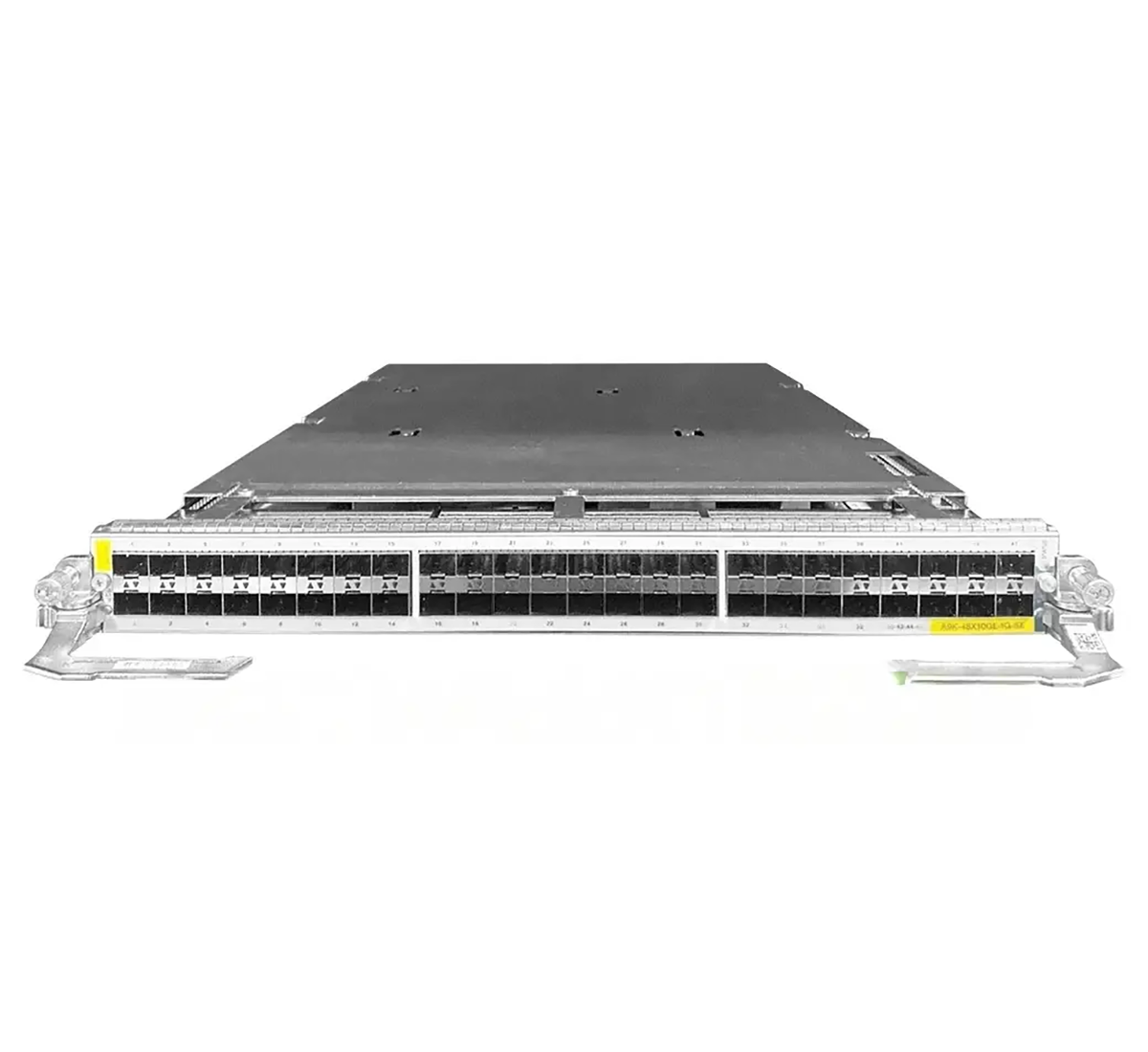

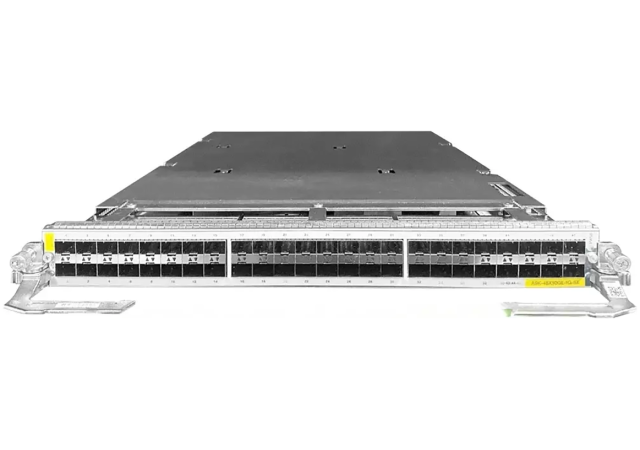

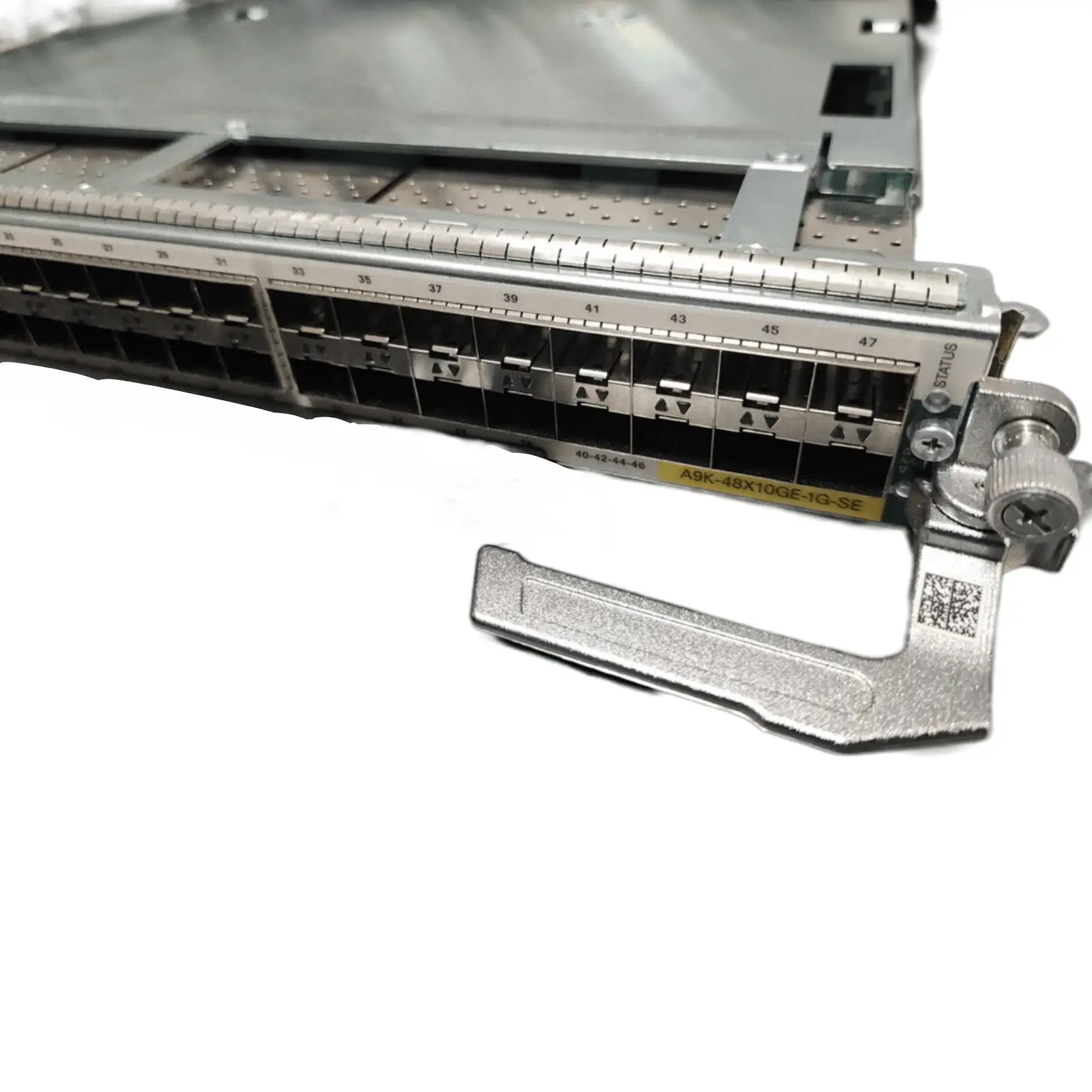

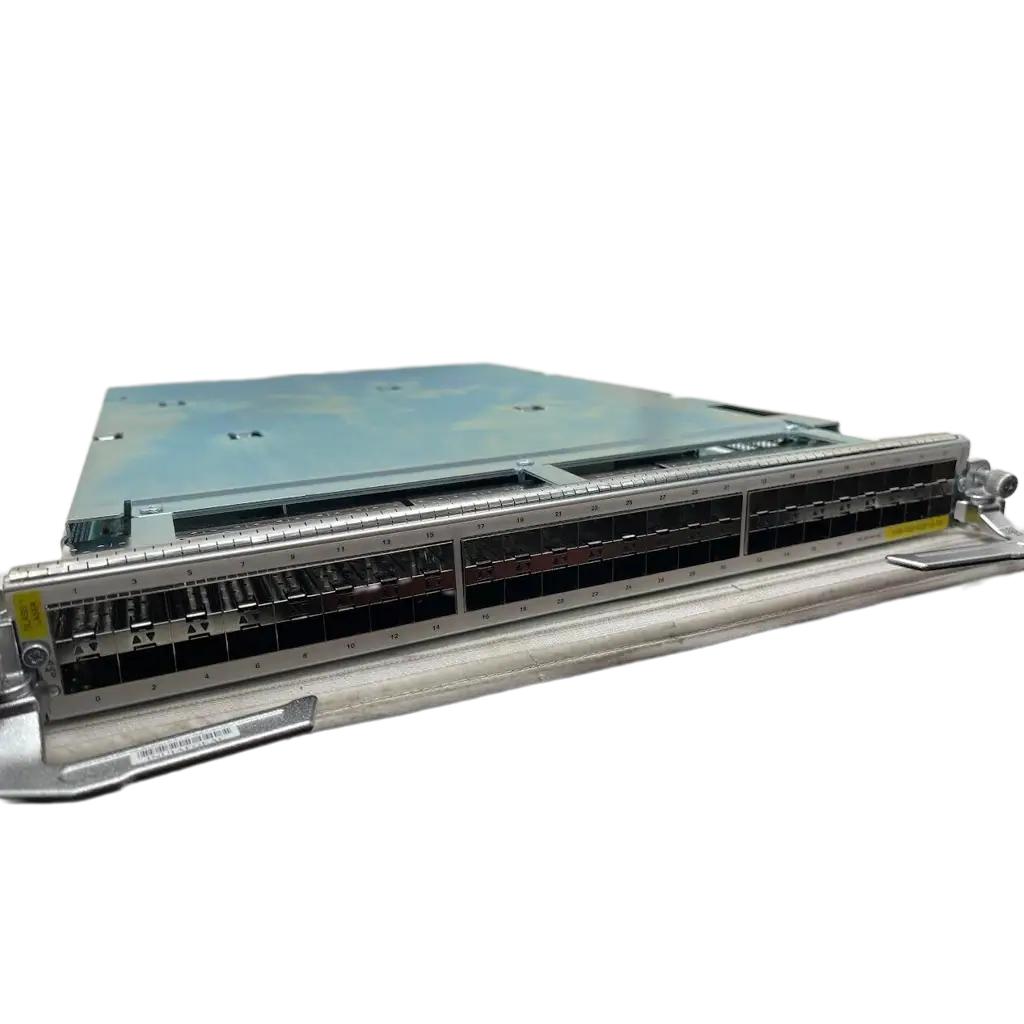

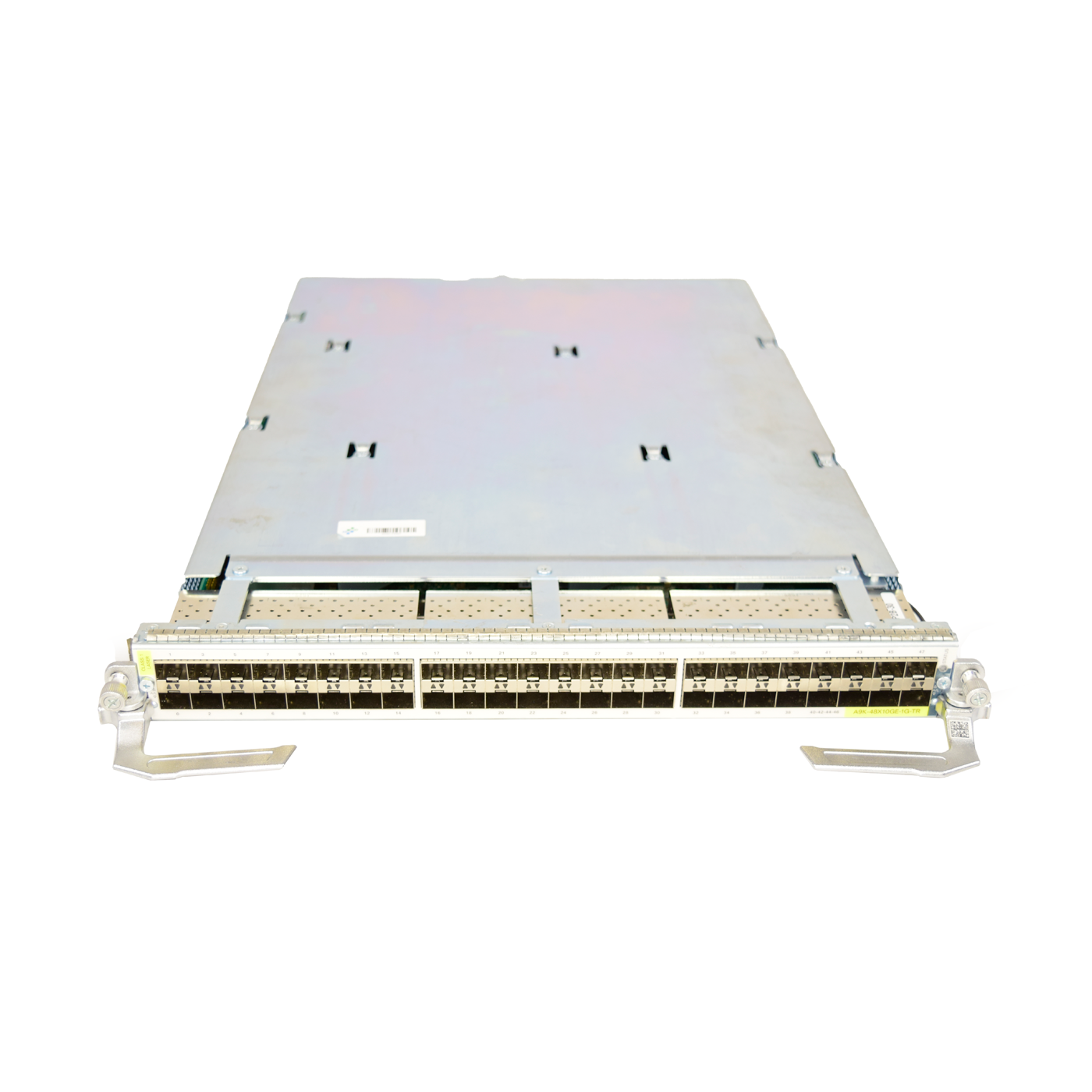

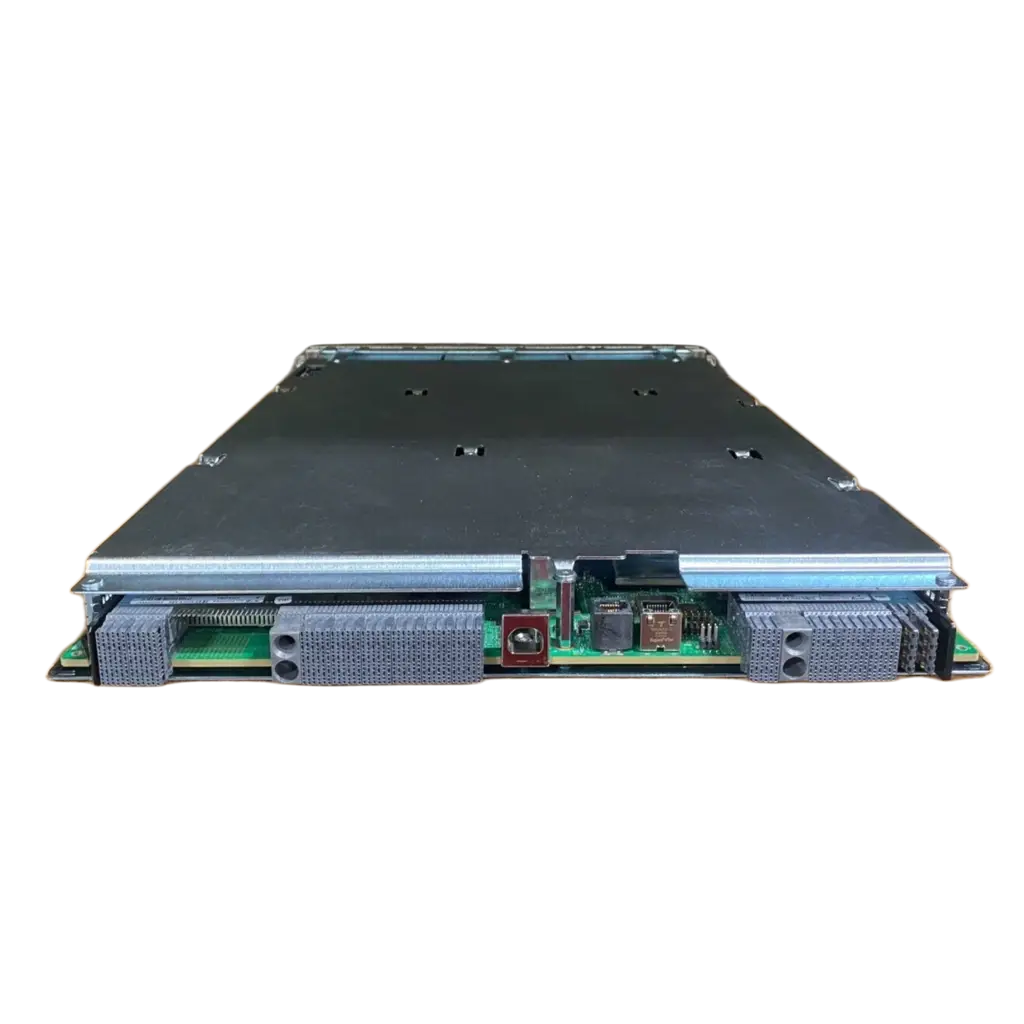

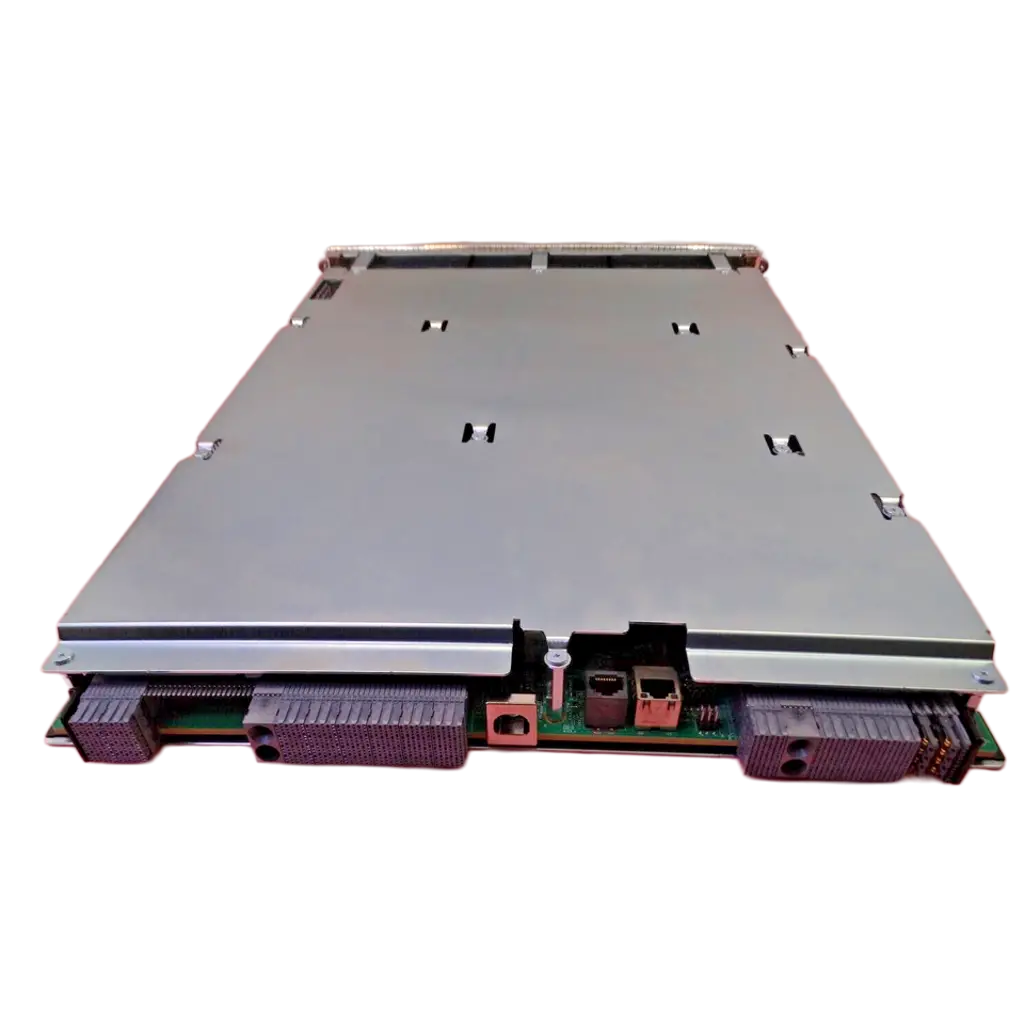

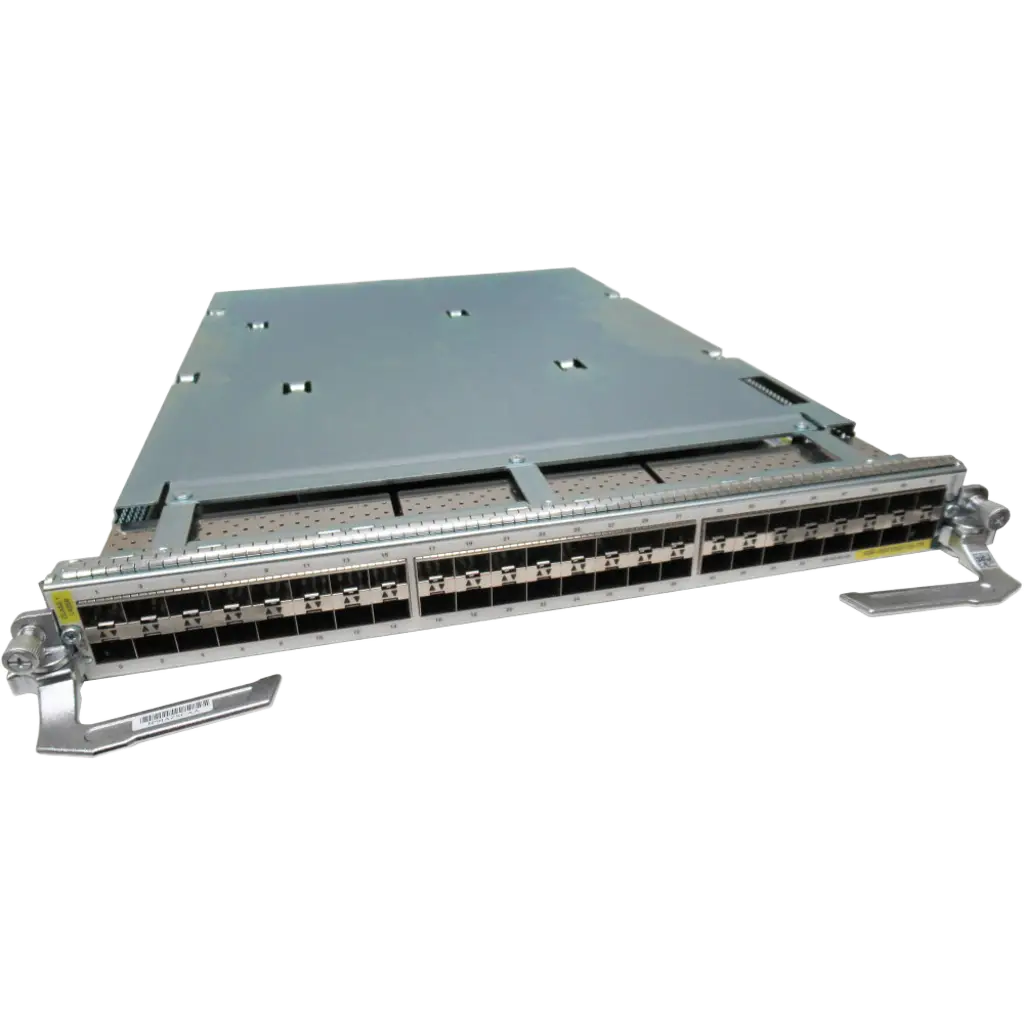

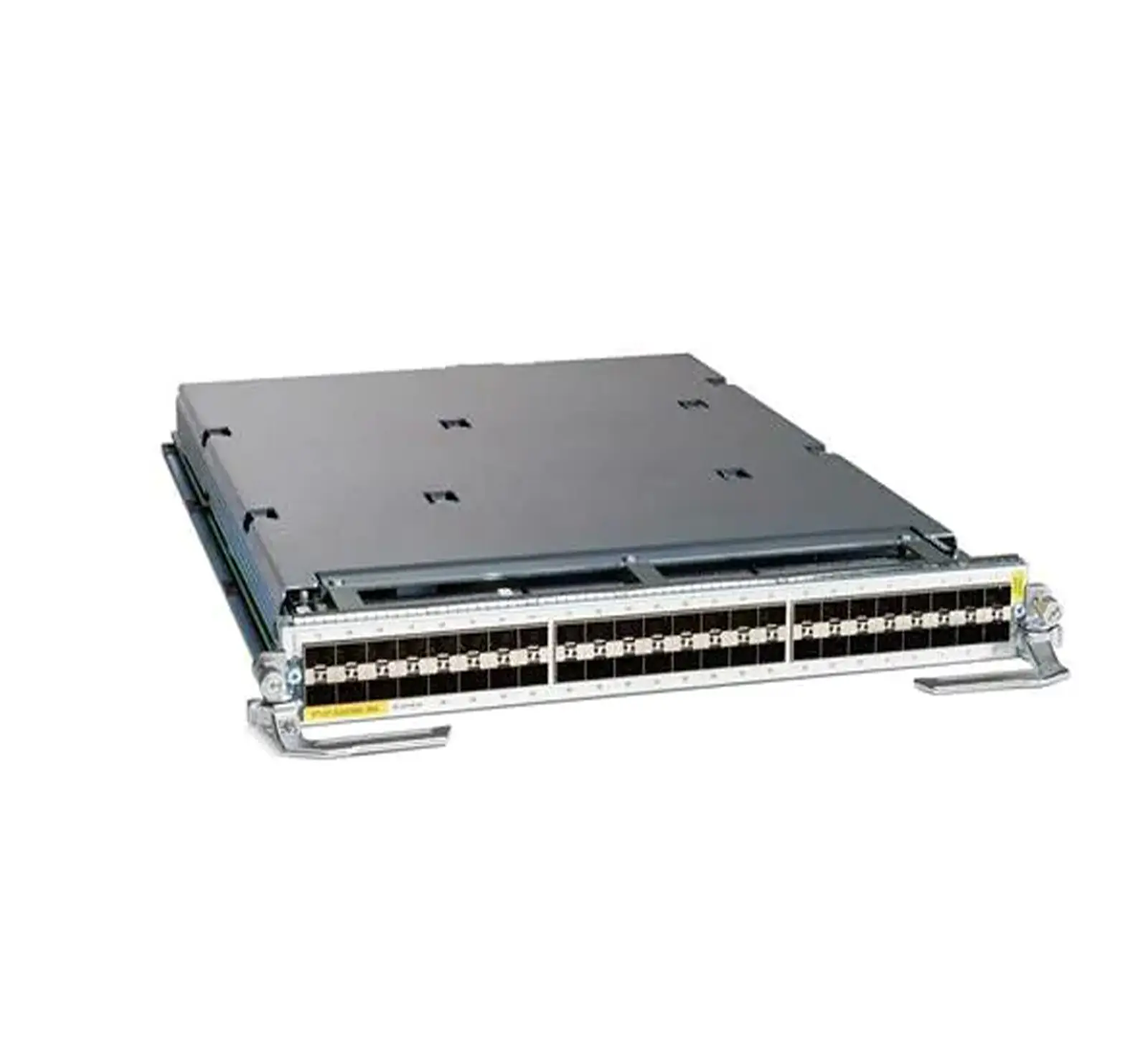

Cisco Part Number: A9K-48X10GE-1G-TR= ASR 9000 48
The Cisco® ASR 9000 Series 24-port and 48-port dual-rate 10 Gigabit and 1 Gigabit Ethernet line cards deliver industry-leading high density and high 10 Gigabit/1 Gigabit Ethernet performance to any slot of a Cisco ASR 9000 Series Aggregation Services Router. These high-capacity line cards are designed to remove bandwidth bottlenecks in the network that are caused by a large increase in Video-on-Demand (VoD), IPTV, point-to-point video, Internet video, and cloud services traffic, all with an incredibly low power profile.
Fully populating an ASR 9922 chassis with the 48-port line card delivers 960 ports of 10 Gigabit Ethernet or 960 ports of 1 Gigabit Ethernet in a single chassis. Such configurations are ideal for networks in which density, performance, and low-latency operations are critical. The 24-port and the 48-port line cards are designed for throughput of 200G and 400G, respectively, but can operate in oversubscription mode up to 240G for the 24-port card and 480G for the 48-port card. There will be a graceful redistribution of packets across all ports in case of oversubscription. All the ports on the line card can be configured to be all in 10G or all in 1G mode. The line card also offers the flexibility to support certain mixed 1G and 10G configurations.
