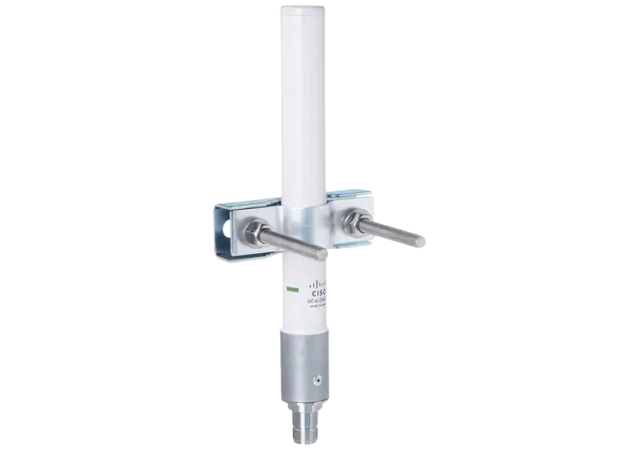

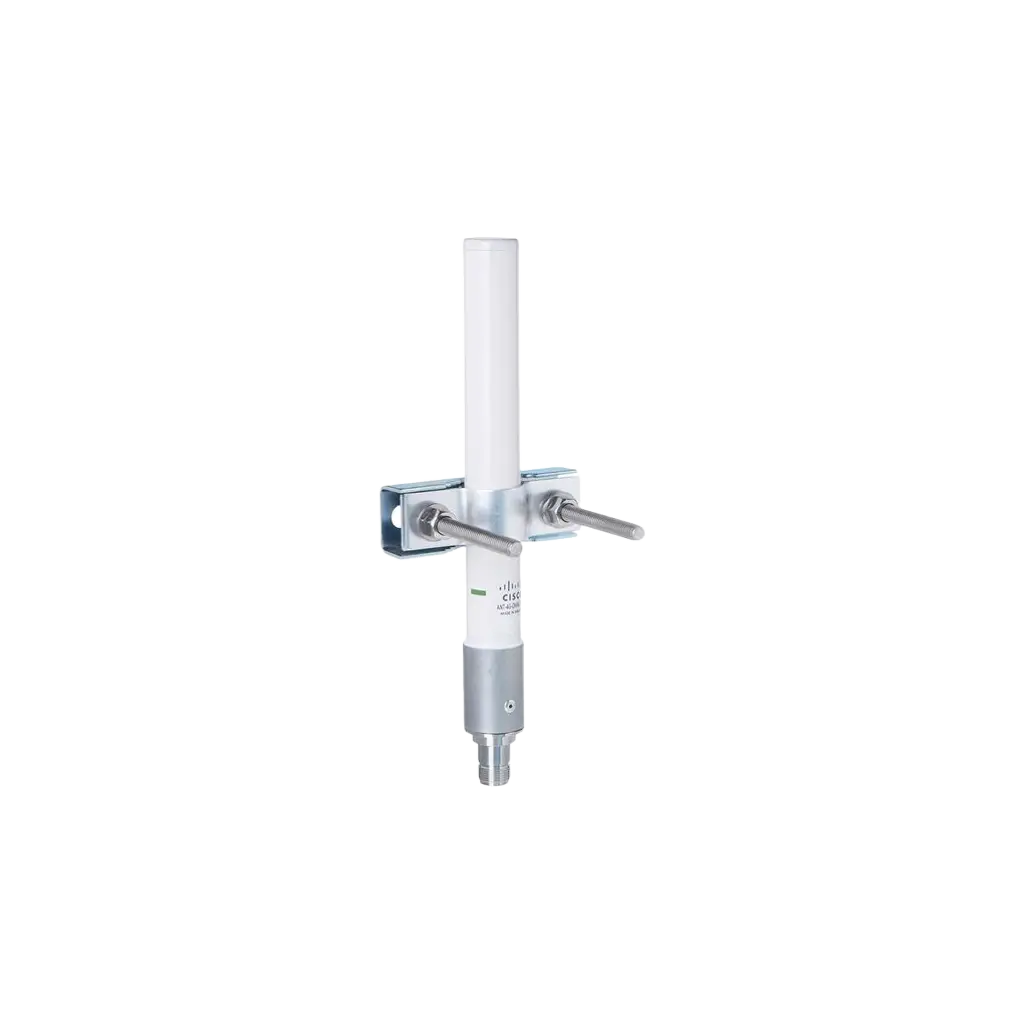

Cisco Part Number: ANT-4G-OMNI-OUT-N is a Cisco Outdoor Omnidirectional Antenna for 2G/3G/4G Cellular

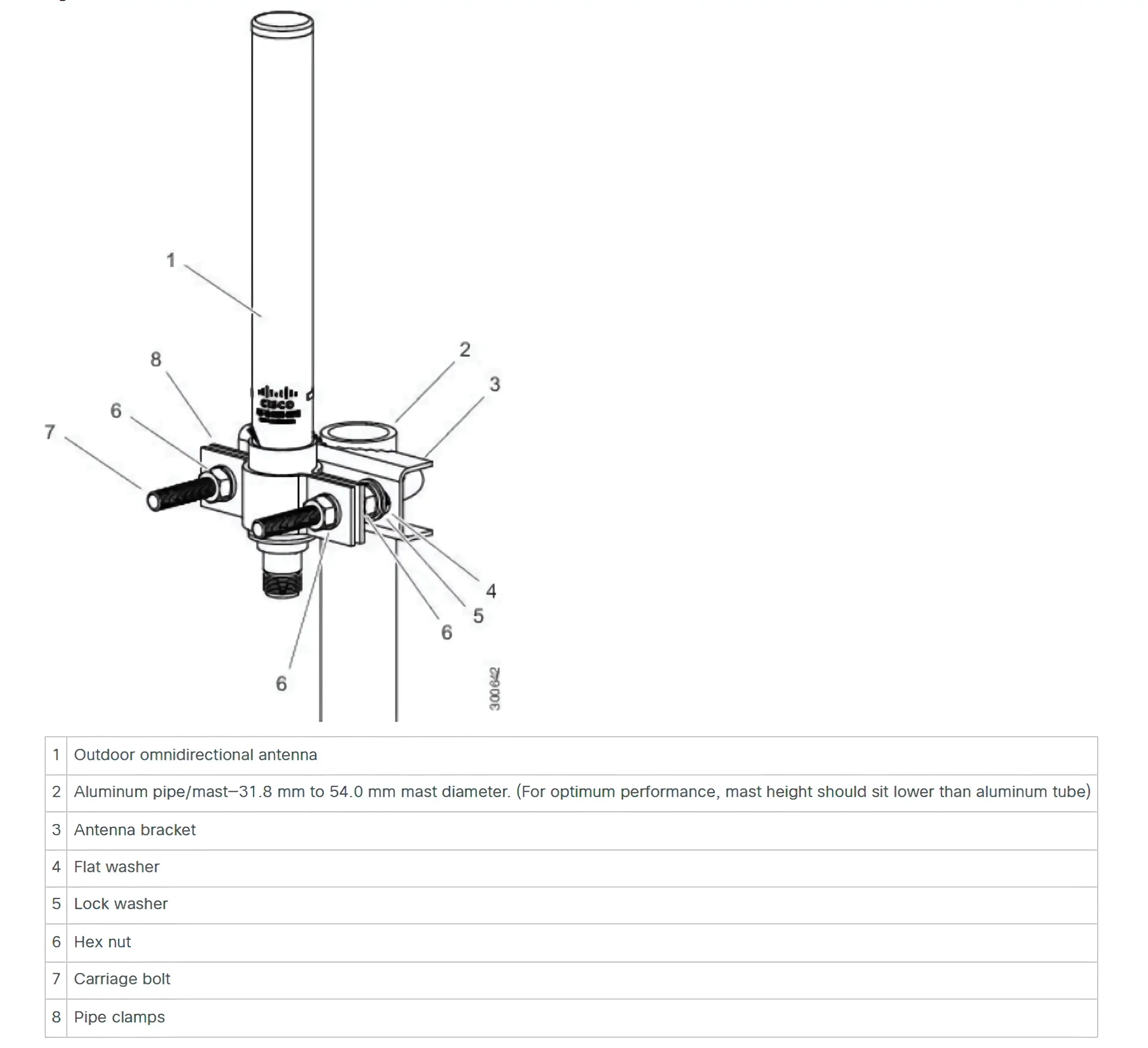

The Cisco Outdoor Omnidirectional Antenna for 2G/3G/4G Cellular antenna is designed to cover domestic LTE700/Cellular/PCS/AWS/MDS, WiMAX 2300/2500, and GSM900/GSM1800/UMTS/CBRS/LTE2600 bands. This document provides the antenna specifications and mounting instructions.
The Outdoor Omnidirectional antenna features the following:
UV stable radome
Mast mount bracket
Multiple frequency ranges.
Specification |
Description |
---|---|
Frequency ranges |
698 to 862 MHz 824 to 894MHz 880 to 960MHz 1710 to 1880Mhz 1850 to 1990MHz 1920 to 2170MHz 2300 to 2400MHz 2400 to 2500MHz 2500 to 2690MHz 3400 to 3800 MHz |
Peak gain (dBi) |
1.5 dBi (698 to 960MHz) 3.5 dBi (1710 to 2690MHz) 5.2 dBi (3400 to 3800MHz) |
Efficiency |
Antennas were designed and tested to high RF efficiency in all supported cellular bands. Detailed technical specifications can be obtained through your Cisco authorized partner or Cisco account representative. |
Polarization |
Vertical, Omnidirectional Radiation Pattern |
Normal impedance |
50 ohms |
VSWR |
< 2.5:1 (698 to 960 MHz) < 2:1 (1710 to 2690 MHz) < 2.5:1 (3400 to 3800 MHz) |
Power |
20 Watts |
