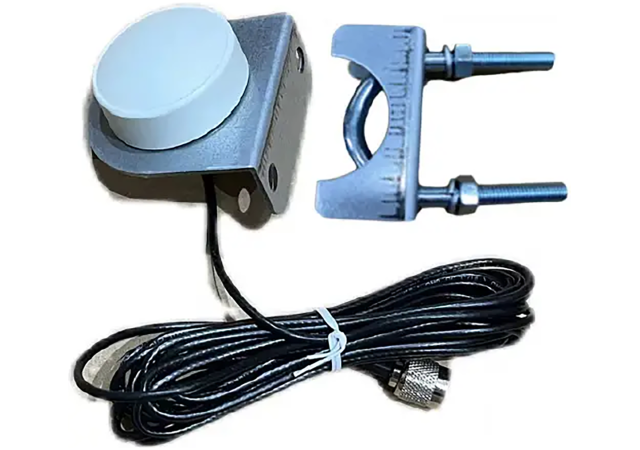

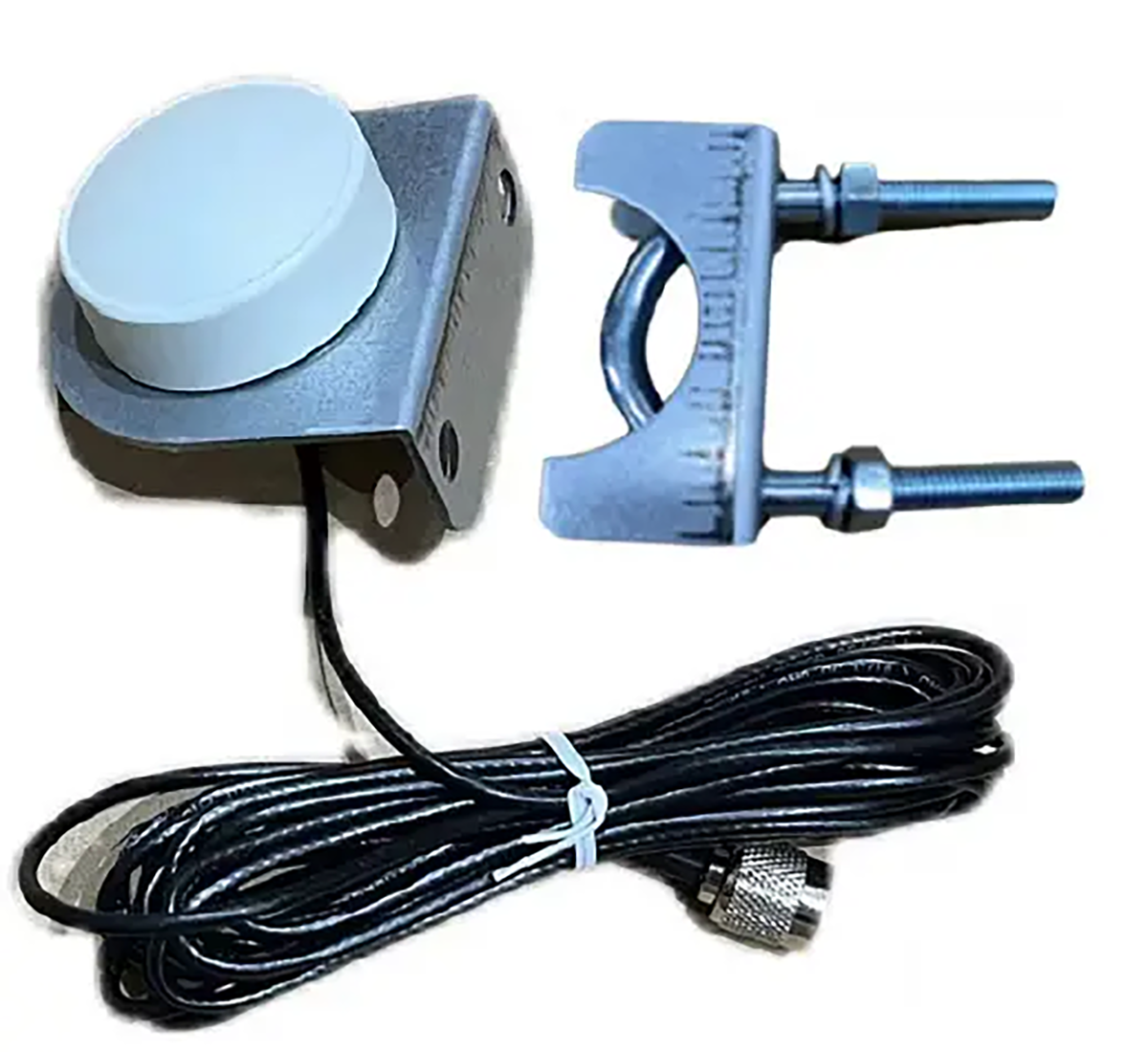

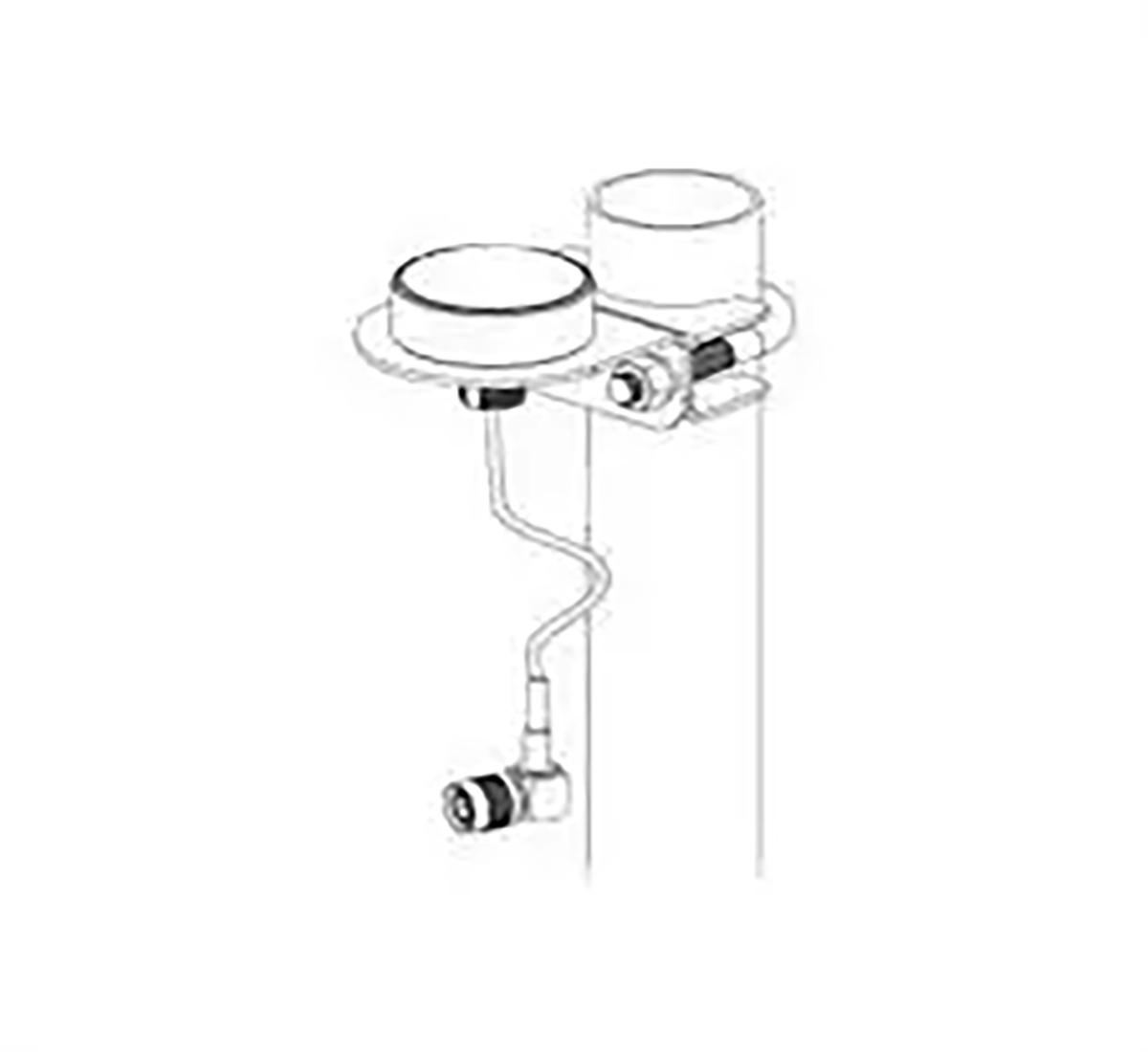

Cisco Part Number: ANT-GPS-OUT-TNC is a Cisco GPS Antenna
The Cisco GPS Antenna is designed to cover a domestic frequency of 1575 MHz.
This antenna is compatible with any Cisco device that uses GPS, and is compatible with active GPS antennas with DC specifications given below. Connector adapters may be required from TNC(m) to the required interface. The antenna is a rugged outdoor antenna, and is IP67 rated.
Specification |
Cisco GPS Antenna (ANT-GPS-OUT-TNC) |
---|---|
Type |
Patch, active |
Operating frequency range |
1575.42 MHz +/- 5 MHz |
Impedance |
50 ohm, nominal |
VSWR |
2.0 max. in band |
Gain |
4.0 dBi min. @ Zenith |
Minimum gain |
1 dBi @ 10-degrees elevation |
Pattern type |
Hemispherical |
Polarization |
Circular RHCP |
LNA gain |
25 dB +/-2 dB |
Front end GPS filter |
This antenna features a GPS RF filter in front of the LNA to enable co-location with other radios. |
Out-of-band attenuation |
20 dB min. at 1575 +/- 50 MHz |
DC voltage |
3 to 5 VDC |
Current draw |
20 mA max. @ 3.3 VDC +/- .3 VDC |
