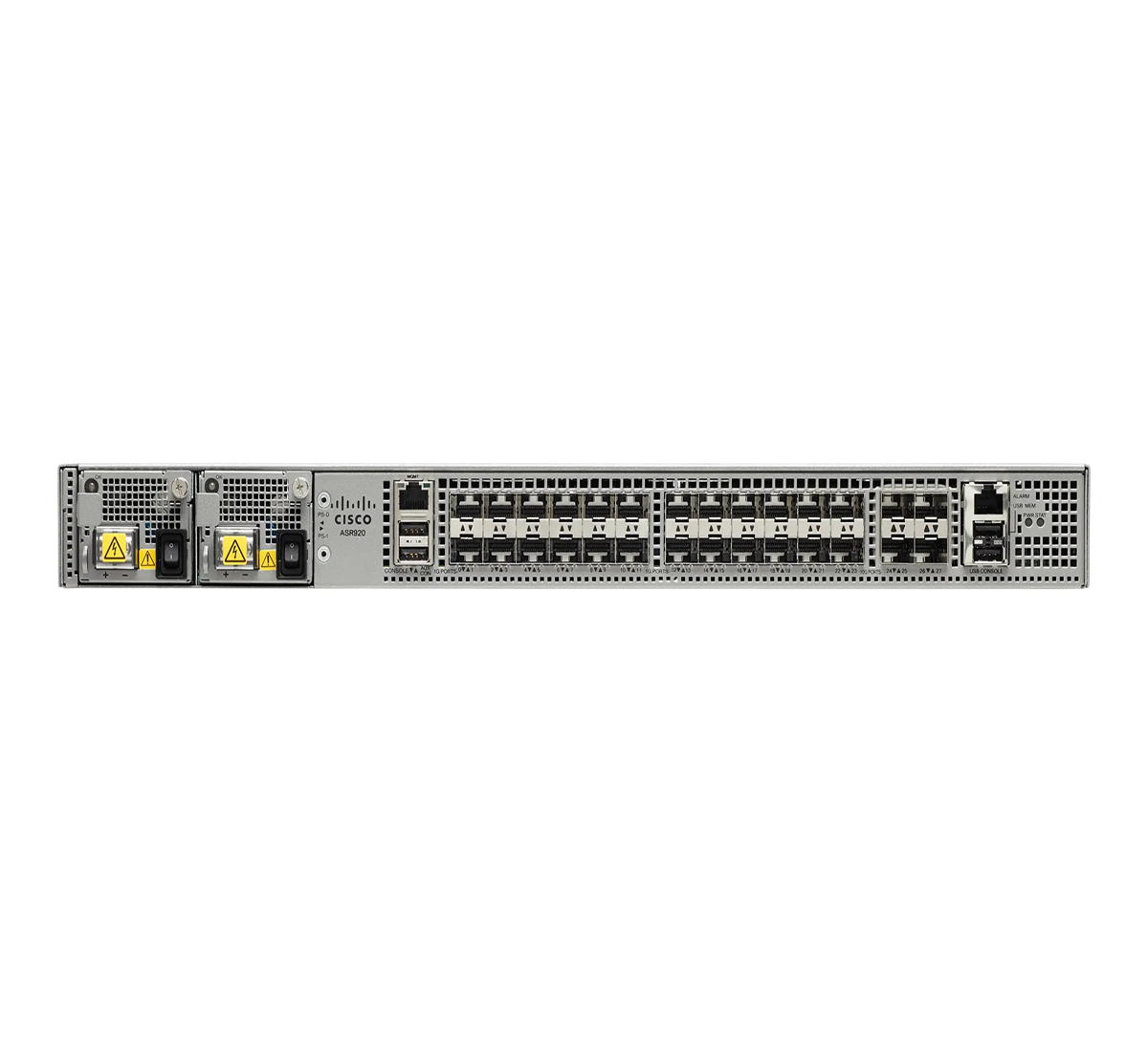

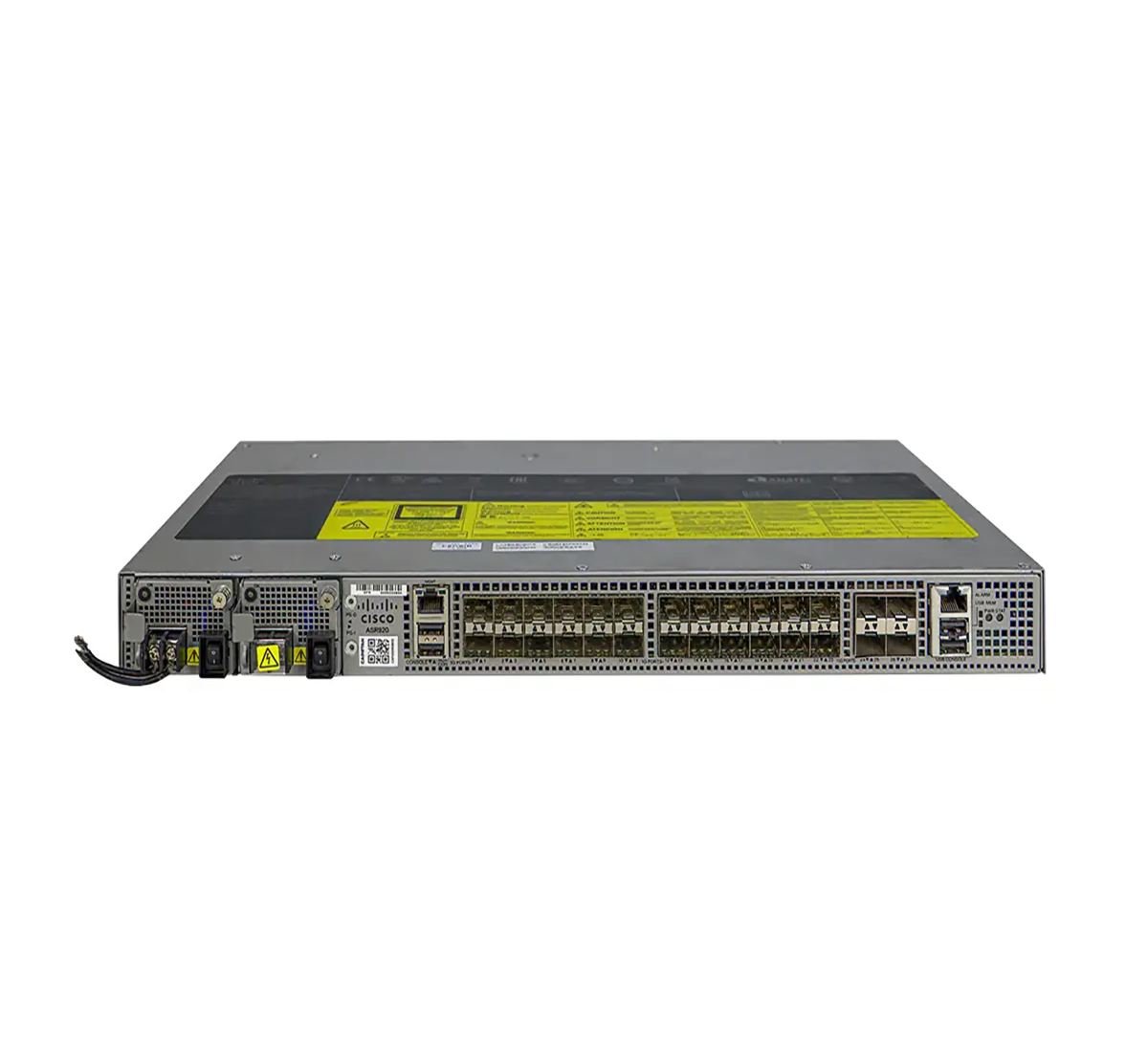

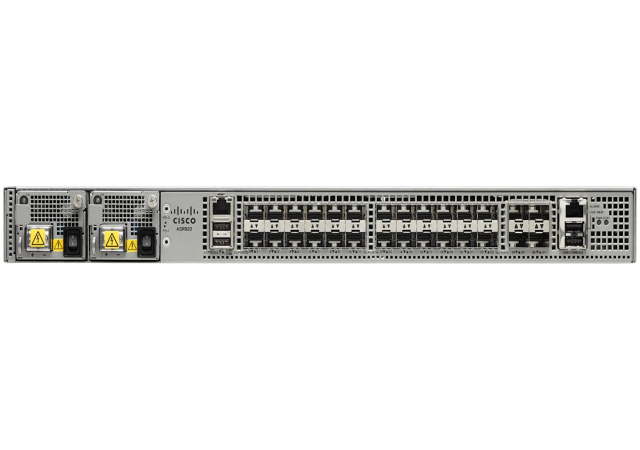

Cisco Part Number: ASR-920-24SZ-M is a Cisco ASR920 Series Router - 24GE Fiber and 4-10GE : Modular PSU
The Cisco ASR 920 Series Aggregation Services Router stands as a robust converged access platform engineered to efficiently deliver wireline and wireless services at an affordable cost. These routers are engineered to withstand extreme temperatures, offering high throughput while maintaining a small form factor and low power consumption. Ideal for mobile backhaul and business applications, the ASR 920 routers boast a rich array of features, including support for both Layer 2 VPN (L2VPN) and Layer 3 VPN (L3VPN) services, all within a compact design. Furthermore, they empower service providers to implement Multiprotocol Label Switching (MPLS)-based VPN services directly from the access layer, enhancing versatility and scalability.
Highly adaptable and economical VPN solutions are at your disposal. Crafted with essential Carrier Ethernet functionalities, these routers streamline network management tasks. Elevate your service offerings with advanced SLA capabilities, ensuring premium service delivery. Opt for the optional pay-as-you-grow feature and service activation model for a dynamic and budget-friendly solution.
The ASR 920 Series offers the capability to provide voice, video, data, and mobility services seamlessly. Engineered to accommodate thousands of subscribers, it supports a diverse range of broadband applications, such as IPTV and video on demand.
Cisco ASR-920-24SZ-M Router Specifications
| Specification | ASR-920-24SZ-M, ASR-920-24TZ-M |
|---|---|
| Dimension Width x Depth x Height | 17.5 x 9.43 x 1.72 inches |
| Weight | ASR-920-24SZ-M: 5.53 kg |
| ASR-920-24TZ-M: 4.90 kg | |
| (inclusive of rack brackets, twenty-four SFP (only for ASR-920-24SZ-M) and four SFP+ optics and two AC PSUs) | |
| Rack Unit | One RU |
| Airflow | Front to back |
| Cable access | Front cable access |
| System throughput | 64 Gbps |
| Modularity | None |
| Power Supply | |
| Redundant | Yes |
| AC | Yes |
| Power Specification | 250 W Maximum |
| DC | Yes |
| Power Specification | 250 W Maximum |
| System Power Consumption | ASR-920-24SZ-M: 145 W Maximum, 110 W Typical
ASR-920-24TZ-M: 130 W Maximum, 100 W Typical |
| Mounting option | Front or rear rail 19 inches or 23 inches |
| ETSI 300 mm cabinet | |
| Wall Mount (with only side mount option). | |
| Port Configuration | 24x1G and 4x10G ports |
| Port Numbering | 24x1G SFP (Fiber) – Port [0:23](ASR-920-24SZ-M) |
| 24x1G SFP (Copper) – Port [0:23](ASR-920-24TZ-M) | |
| 4x10G SFP+ – Port [24:27] | |
| Combo Ports | No combo ports |
| LEDs | System Status LED |
| Management Port LED | |
| PSU LED | |
| Fan Tray LED | |
| Temperature Sensors | Five temperature sensors for Board |
| Two temperature sensors for each PSU | |
| Timing Interfaces | No external timing ports |
| 1588v2 and SyncE feature supported | |
