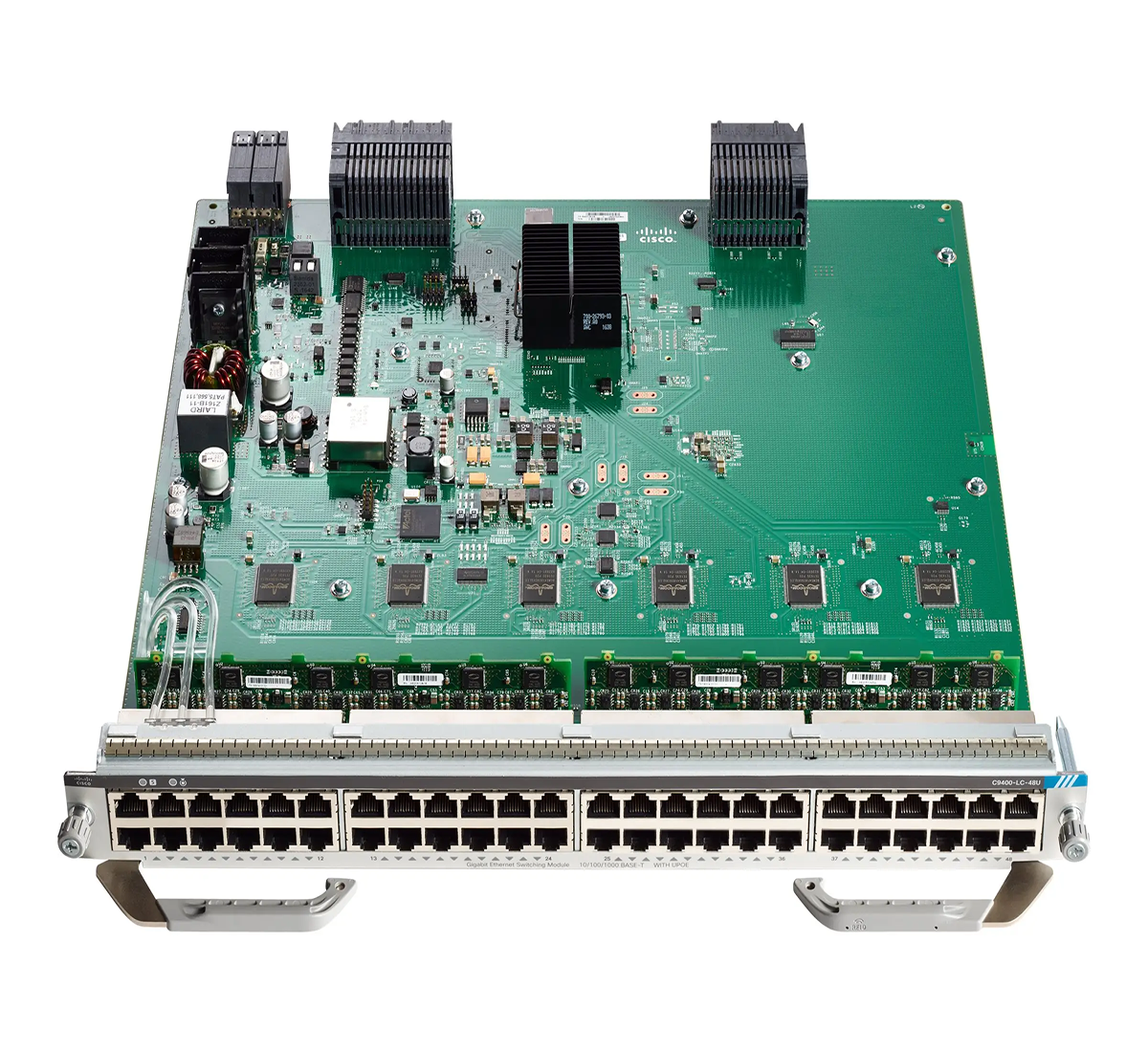

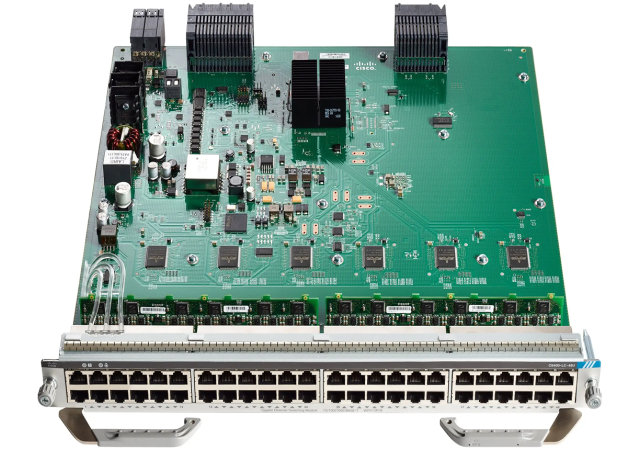

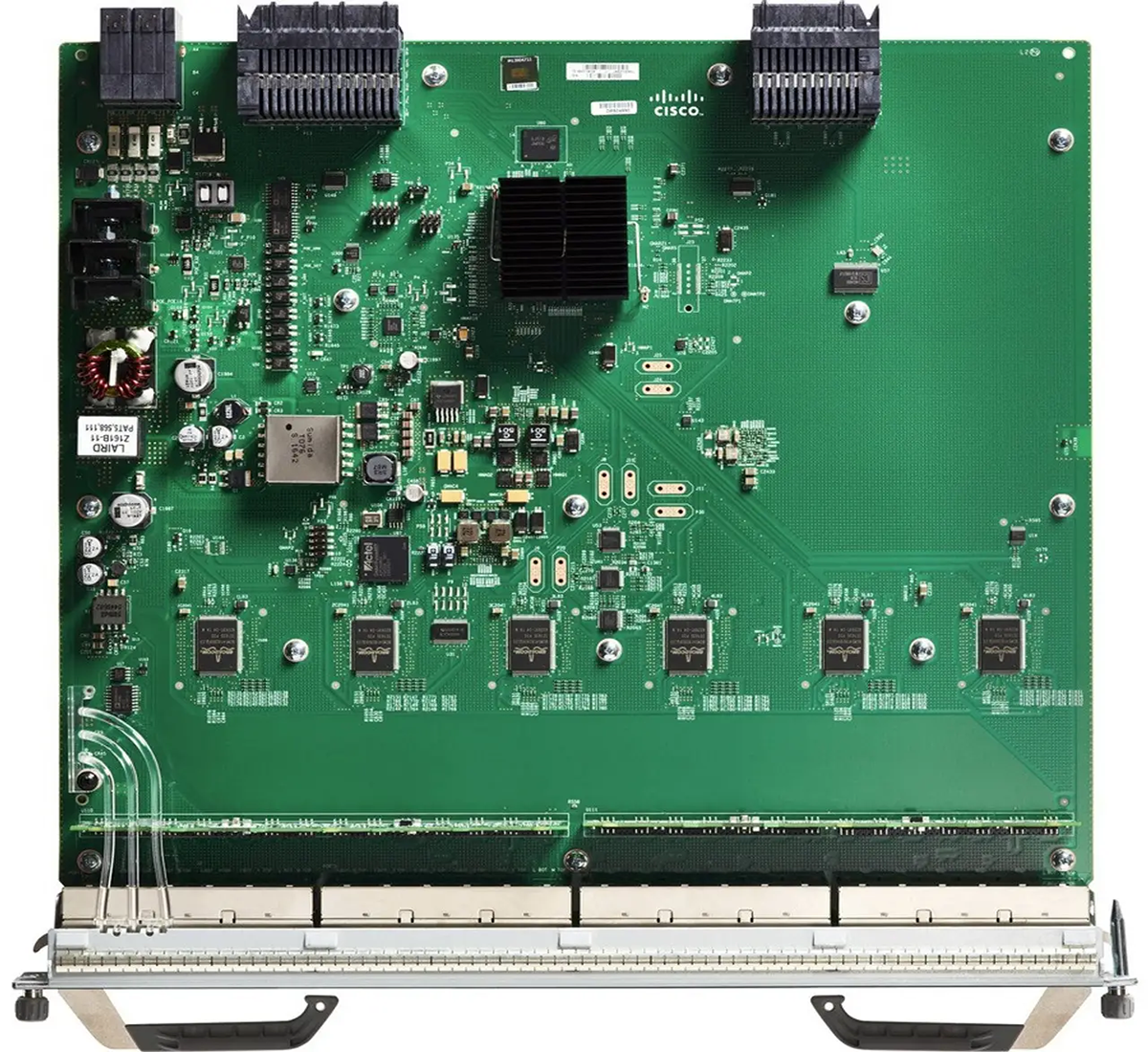

Cisco C9400-LC-48U - Switch Line Card

Cisco Part Number: C9400-LC-48U is a Cisco Catalyst 9400 Series 48-Port UPOE 10/100/1000 (RJ-45) line card

The Cisco Catalyst 9400 Series switches, a key modular component of the Catalyst 9000 family, redefine network capabilities for a hybrid world. This series, featuring the latest Catalyst 9400 SUP-2/2XL supervisor and line cards, continues to innovate, enhancing connectivity, strengthening security, and redefining experiences for diverse hybrid workforces.

The Cisco Catalyst 9400 Series switches stand as Cisco’s primary modular enterprise switching platform, prioritizing security, IoT, and cloud integration. Positioned as foundational elements for SD-Access, Cisco’s leading enterprise architecture, these switches ensure exceptional investment protection. With a chassis architecture supporting up to 9 Tbps of system bandwidth and robust power delivery via high-density IEEE 802.3bt PoE (60W and 90W), redundancy is a standard across the portfolio. Featuring advanced High Availability (HA) capabilities like SSO/NSF, uplink resiliency, and N+1/N+N redundancy for power supplies, the Catalyst 9400 Series offers enterprise optimization with innovative dual-serviceable fan tray design, side-to-side airflow, and closet-friendly ~16 in. depth. Scaling up to 384 access ports, the system provides a variety of multigigabit and fiber options, supporting advanced routing, SD-Access capabilities, and network system virtualization for small to medium-sized campus environments.

The C9400-LC-48U UPOE line card for the Catalyst 9400 Series switch supports PoE, PoE+, and Cisco UPOE, providing 15W, 30W, or 60W to access points. This 60W inline power accommodates a variety of devices, such as IP phones, IPTVs, surveillance cameras, and virtual desktop clients, eliminating the need for additional wall or ceiling circuits. Additionally, it leverages Energy Efficient Ethernet standards for enhanced power efficiency.

Specifications:

• 48 nonblocking ports.
• 10/100/1000 module (RJ-45).
• Supported on Cisco IOS XE Software Release 16.6.1 or later.
• Cisco UPOE enabled, providing up to 60W on all ports.
• Energy Efficient Ethernet 802.3az.
• IEEE 802.3af/at and Cisco pre-standard PoE.
• IEEE 802.1AE (MACsec-256) capability in hardware.
• Layer 2 to Layer 4 Jumbo Frame support up to 9216 bytes.
• Designed for enterprise and commercial use, powering IP phones, wireless base stations, cameras, and more.
• Ideal for campus and branch applications requiring enhanced performance.

Bandwidth per slot by chassis for C9400-LC-48U line card:
