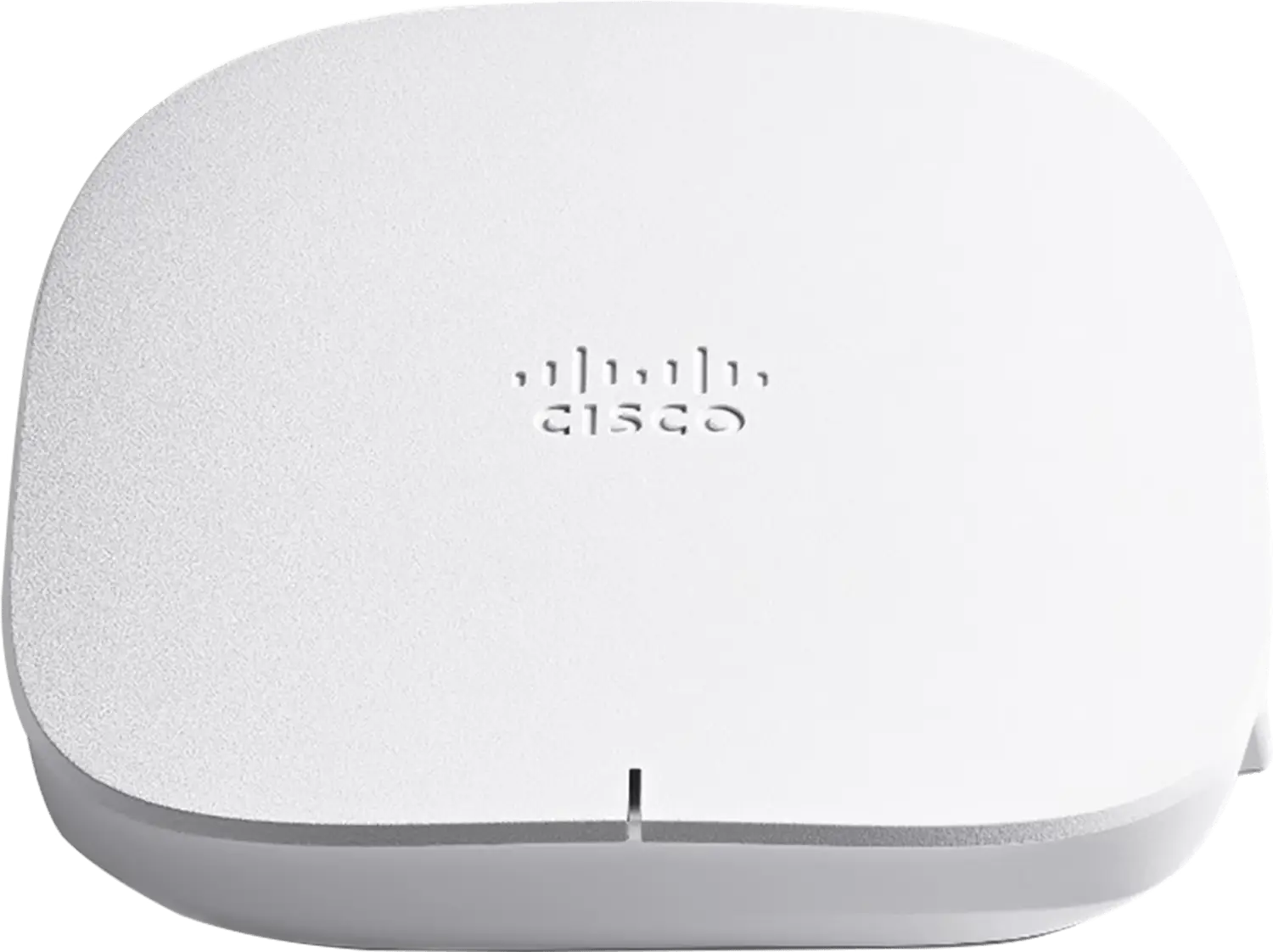

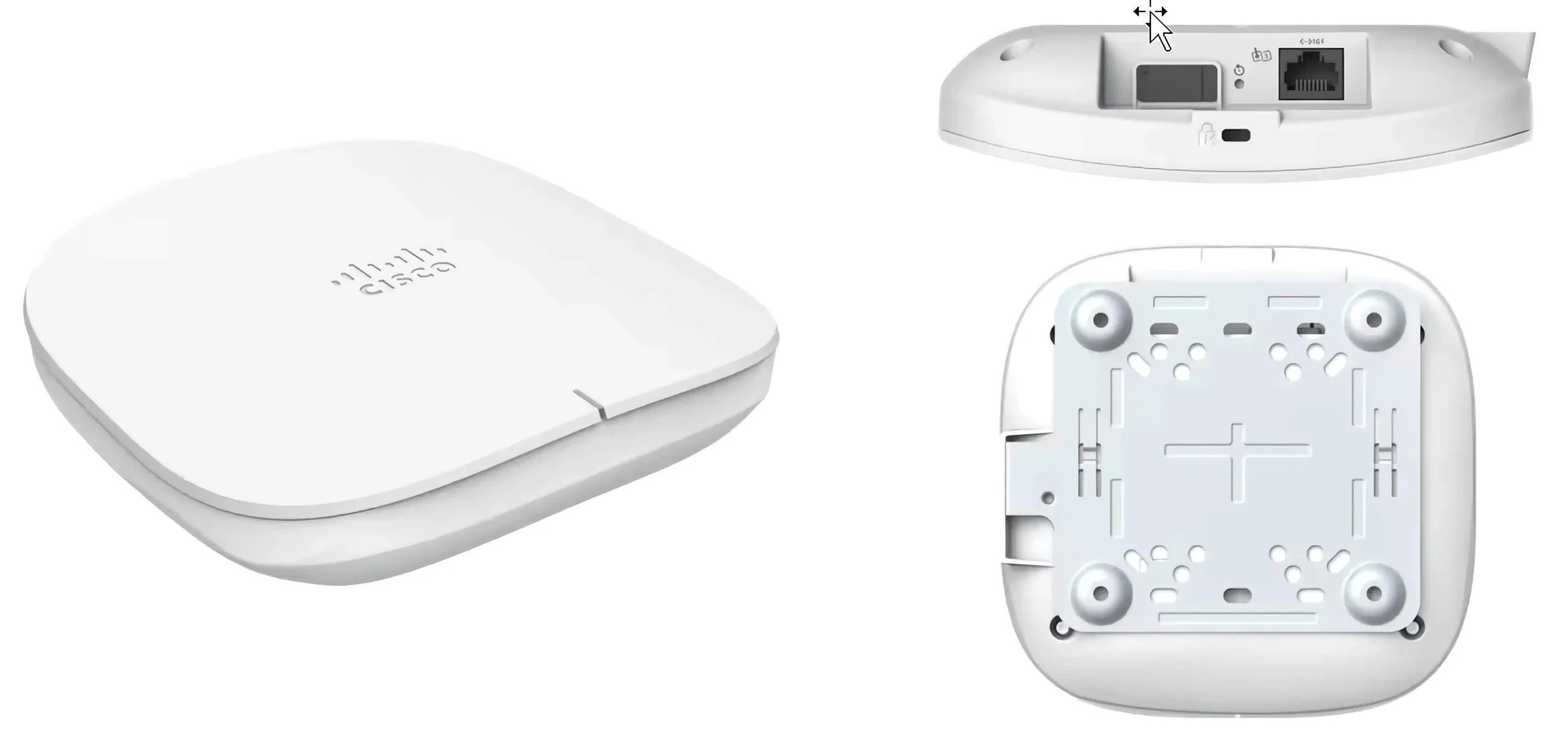

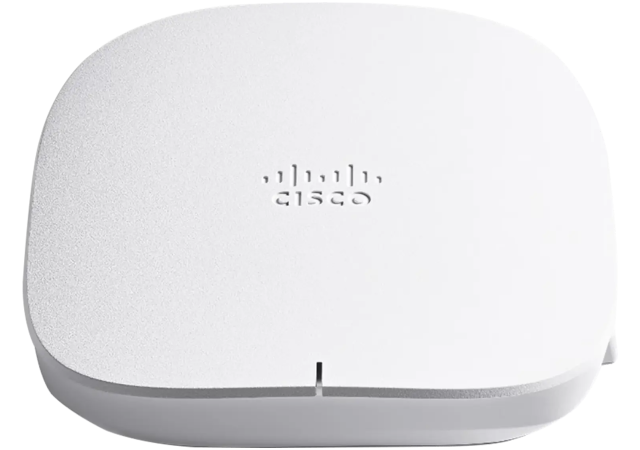

Cisco Business CBW150AX-E-UK - Access Point

Cisco Part Number: CBW150AX-E-UK is a Cisco Business 150AX Wi-Fi 6 Access Point, Ceiling Mounted for United Kingdom

The Cisco Business 150AX Access Point offers exceptional wireless performance, supporting the latest Wi-Fi 6 standard (802.11ax) for faster, more efficient connectivity. Designed to meet the evolving needs of modern networks, it features mesh technology, allowing seamless network expansion in areas without existing cabling.

This access point provides enhanced coverage and capacity for Wi-Fi 6-enabled devices, including smartphones, tablets, and high-performance laptops, while maintaining backward compatibility with 802.11ac Wave 1 and Wave 2 standards. Deployment is simple and user-friendly, whether through the Cisco Business Mobile App or the integrated web-based interface (WebUI).

Authentication and Security

• WiFi protected access - WPA2 and WPA3, including WPA2-Enterprise authentication.
• 802.1X, RADIUS Authentication, Authorization, and Accounting (AAA).
• Segmentation via VLANs (up to 16).
• 802.11r and 802.11i
• Guest network can also authenticate against a Social Login Account (Google and Facebook.

Maximum number of associated wireless clients

• 200 per Wi-Fi radio, for a total of 400 clients per access point, or 1000 in a system.

Maximum number of access points

• 50
• Recommended up to 25

Maximum number of mesh extenders

• Maximum number of associated Cisco Business mesh extenders: 25 per Access Point, up to 8 hops

Data rates supported on CBW150AX-E-UK

• 802.11a: 6, 9, 12, 18, 24, 36, 48, and 54 Mbps
• 802.11b/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54 Mbps
• 802.11n data rates on 2.4 GHz: 6.5 to 300 Mbps (MCS0-MCS15, HT 20/40)
• 802.11ac data rates on 5 GHz: 6.5 to 867 Mbps (MCS0-MCS9)
• 802.11ax data rates on 2.4 & 5GHz: 6.5 to 1200 Mbps (MCS0-MCS11)
