Cisco Wireless CW9176i-CFG - Wireless Access Point

Cisco Part Number: CW9176i-CFG is a Cisco Wireless 9176I(W7,3 radio,3 band 4x4,UWB),Global, CFG: Configurable – customizable accessories and packaging

The Cisco Wireless 9176 Series Access Points offer : High-performance Wi-Fi 7 AP , Radio specification Tri-band (2.4 GHz, 5 GHz, & 6 GHz) and Spatial streams of 12 spatial streams,
4x4: 4 MU-MIMO across 3 radios, 3 bands (2.4 GHz, 5 GHz, 6 GHz)

Cisco Wireless CW9176i-CFG Access Point:

• Aggregate frame rate : 18 Gbps
• Interface Single multigigabit: 10 Gbps interface
• UWB :Yes
• USB: 2.0 9W
• Management:
  - Cloud-managed with Meraki cloud
  - Managed on premises with Cisco Catalyst Center
• Power: 802.3at/bt PoE+ and UPoE compliant
• Performance features:
  - UL/DL-OFDMA, TWT support, BSS coloring, SU-MIMO, UL/DL MU-MIMO support
  - Maximal ratio combining (MRC) and beamforming
  - 20 and 40 MHz channels (802.11n)
  - 20, 40, 80 MHz channels (802.11ac wave 2)
  - 20, 40, 80, and 160 MHz channels (802.11ax)
  - 20, 40, 80, 160 and 320 MHz channels (802.11be)
  - Up to 4K-QAM Packet aggregation

The Cisco Wireless CW9176i Access Point is a cutting-edge wireless solution designed to meet the demands of modern high-density environments. Powered by the latest Wi-Fi 7 technology, it operates across 2.4 GHz, 5 GHz, and the ultra-wide 7 GHz spectrum, providing lightning-fast connectivity with enhanced capacity and reduced interference. This tri-band access point is ideal for businesses seeking to support growing numbers of devices and high-bandwidth applications like video conferencing and IoT deployments.

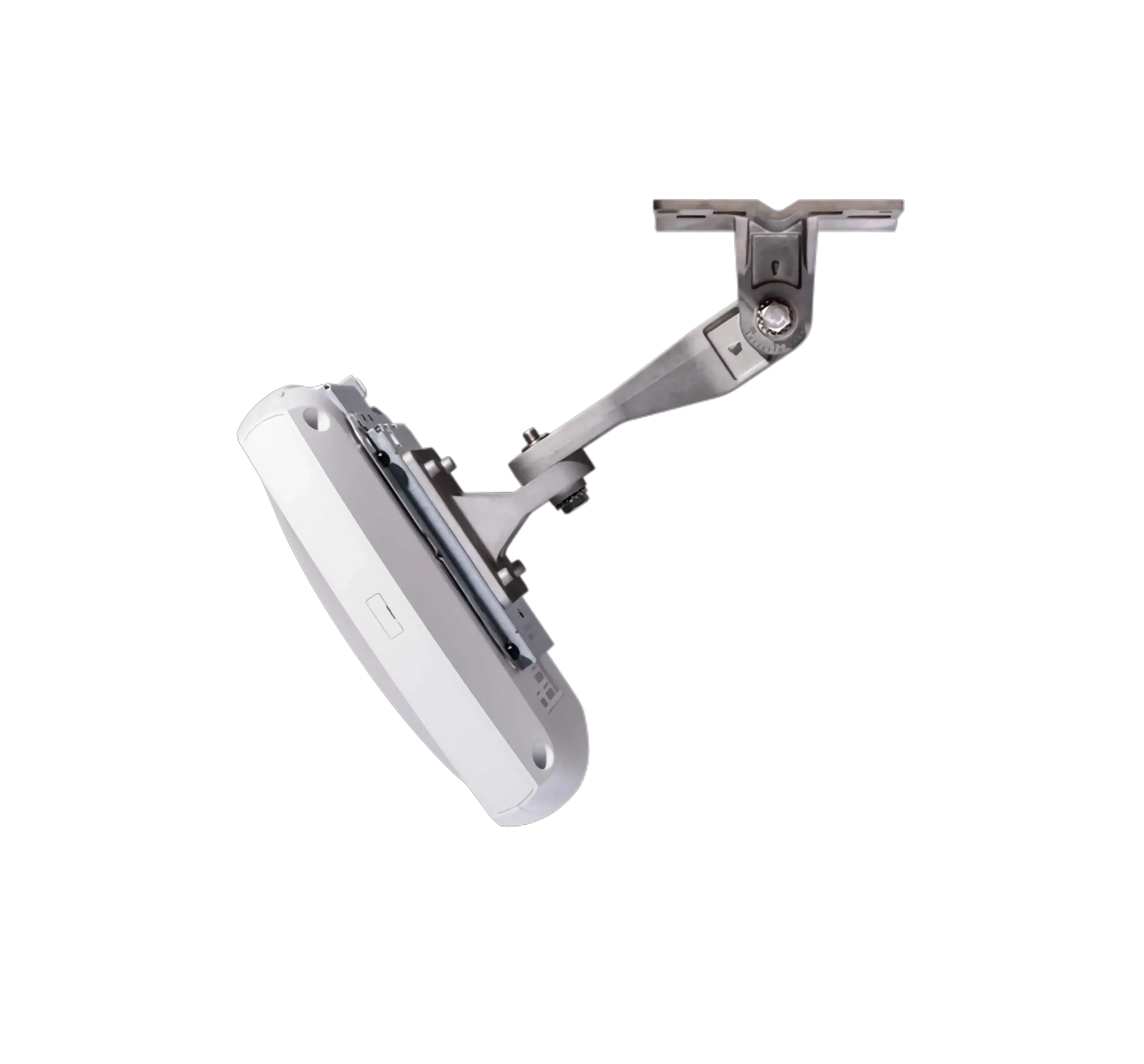

With advanced security features, including Cisco DNA Center integration, the CW9176i ensures seamless network management and robust protection against threats. Its AI-powered analytics and automation simplify troubleshooting and performance optimization, reducing IT overheads. The device also features flexible mounting options and PoE support, making installation in offices, warehouses, or public spaces hassle-free.

Built for reliability, the CW9176i includes built-in redundancy and resilience to ensure uninterrupted connectivity. It also supports hybrid work models, offering secure and efficient wireless coverage for diverse operational needs. Designed to align with Cisco’s sustainability goals, this access point delivers energy-efficient performance, making it a future-proof choice for environmentally-conscious organizations.
