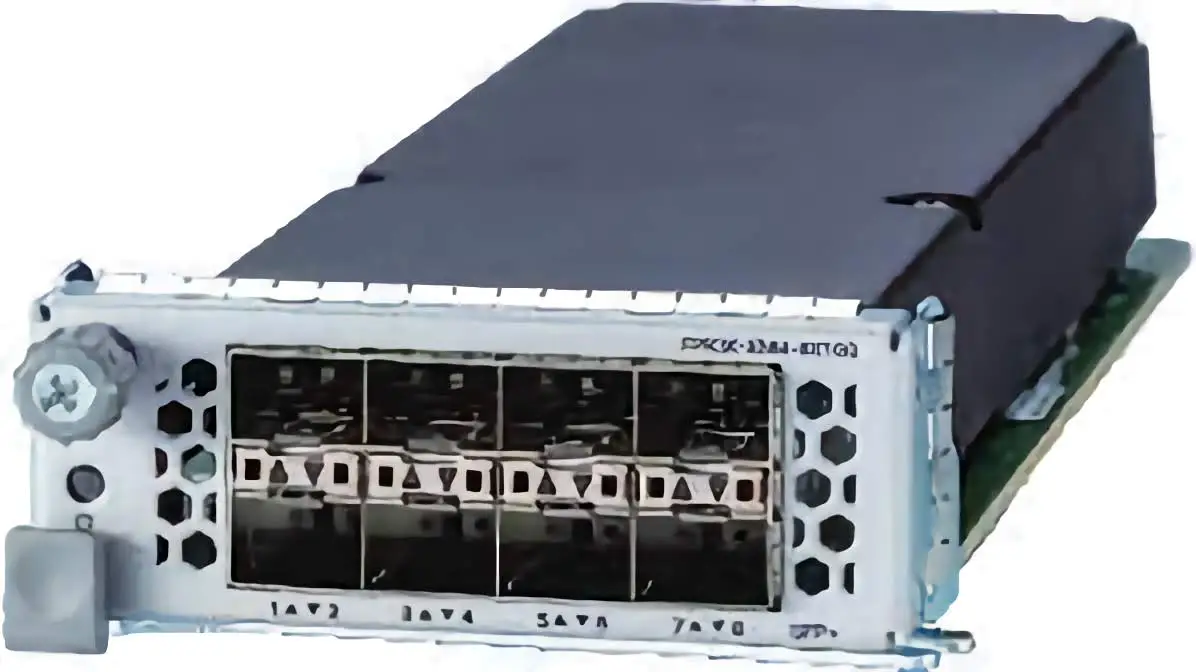

Cisco Part Number: FPR3K-XNM-8X25G= is a Cisco SECURE FIREWALL 3100 8-port 1/10/25G ZSFP Network Module, spare
The Secure Firewall 3100 series features a network module slot (NM-2) that supports optional, removable I/O modules to add ports or offer various interface types. The module inserts into the chassis’s front panel, with designated slots for easy access. Two specific modules, the FPR3K-XNM-8X10G and FPR3K-XNM-8X25G=, offer full-duplex Ethernet traffic at varying speeds (1 Gb to 25 Gb per port). The FPR-X-NM-8X10G is compatible across all Secure Firewall 3100 models, while the 8X25G version supports only the 3130 and 3140 models.

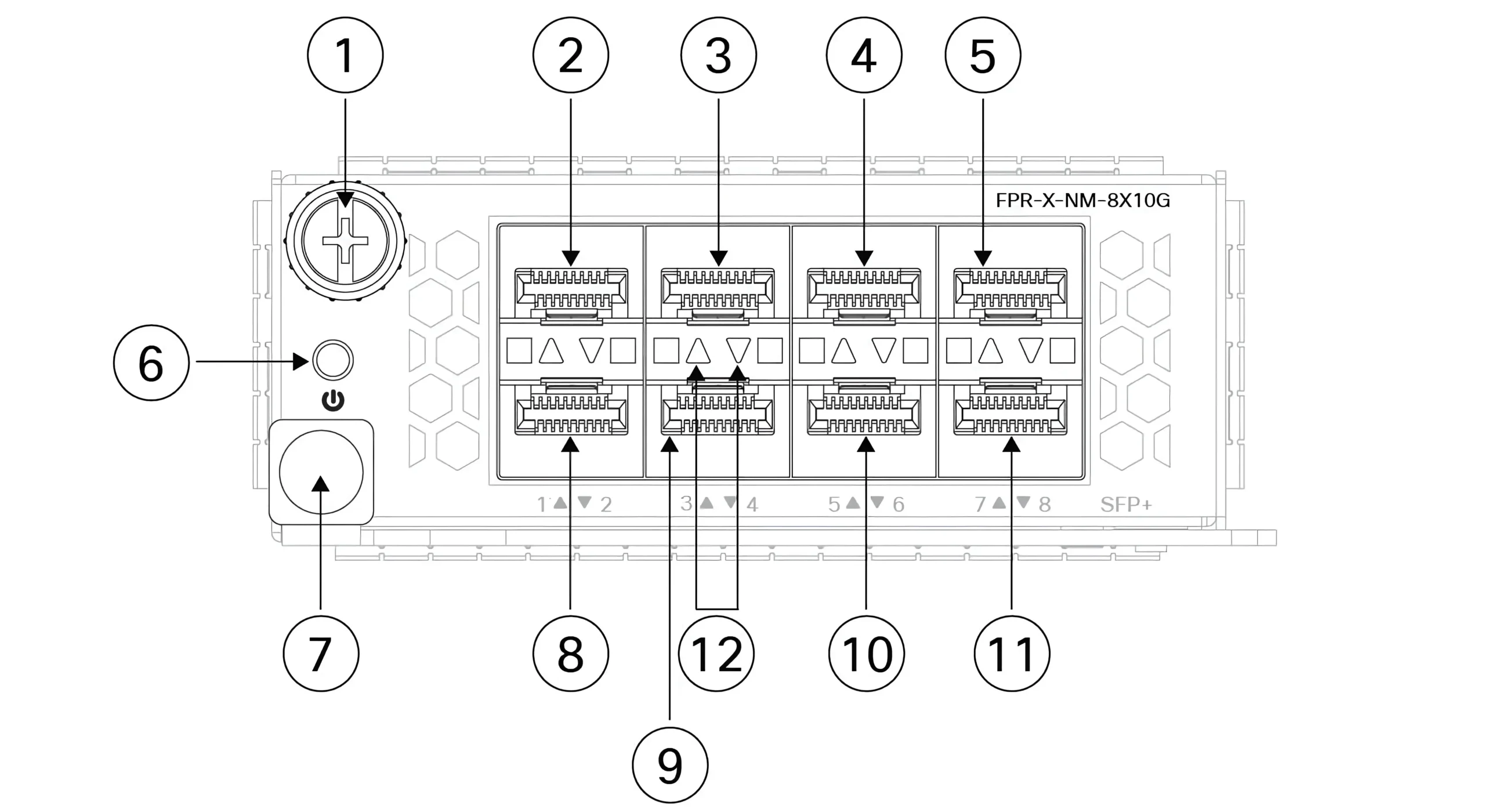

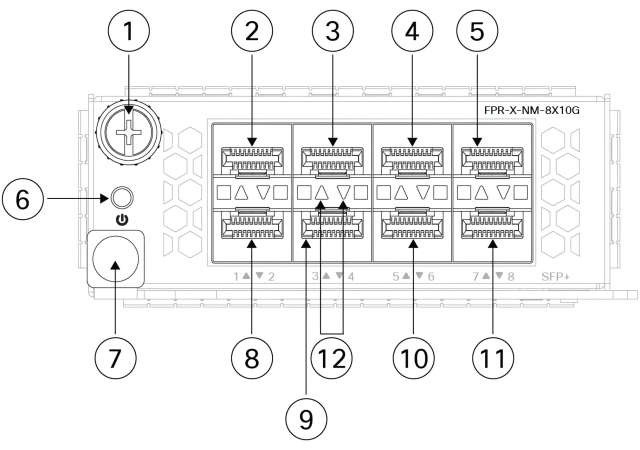

The module layout on the panel includes eight ports, with numbering from left to right for the top and bottom rows. It supports SFP/SFP+/SFP28 transceivers, with a variety of Cisco-supported transceiver options available. The Secure Firewall 3100 enables hot-swapping, allowing network module replacement of the same type without rebooting; however, modules of different types require a chassis reboot for detection.
For successful configuration, users should refer to the device's configuration guide, ensuring proper module management and understanding procedures for enabling or disabling network ports during module swaps. This modular, customizable approach ensures that Secure Firewall 3100 systems meet diverse network traffic and connectivity demands effectively.
