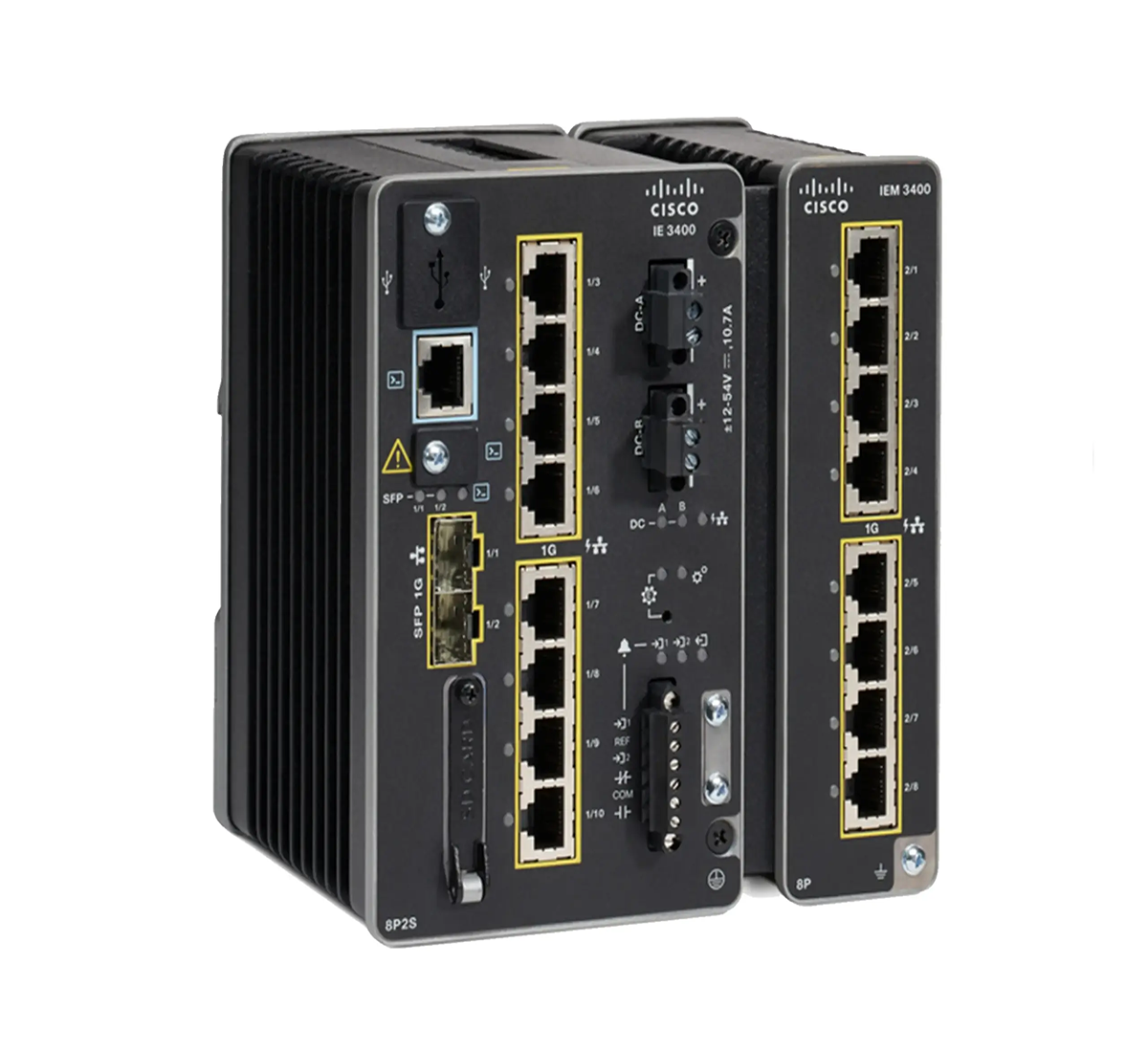

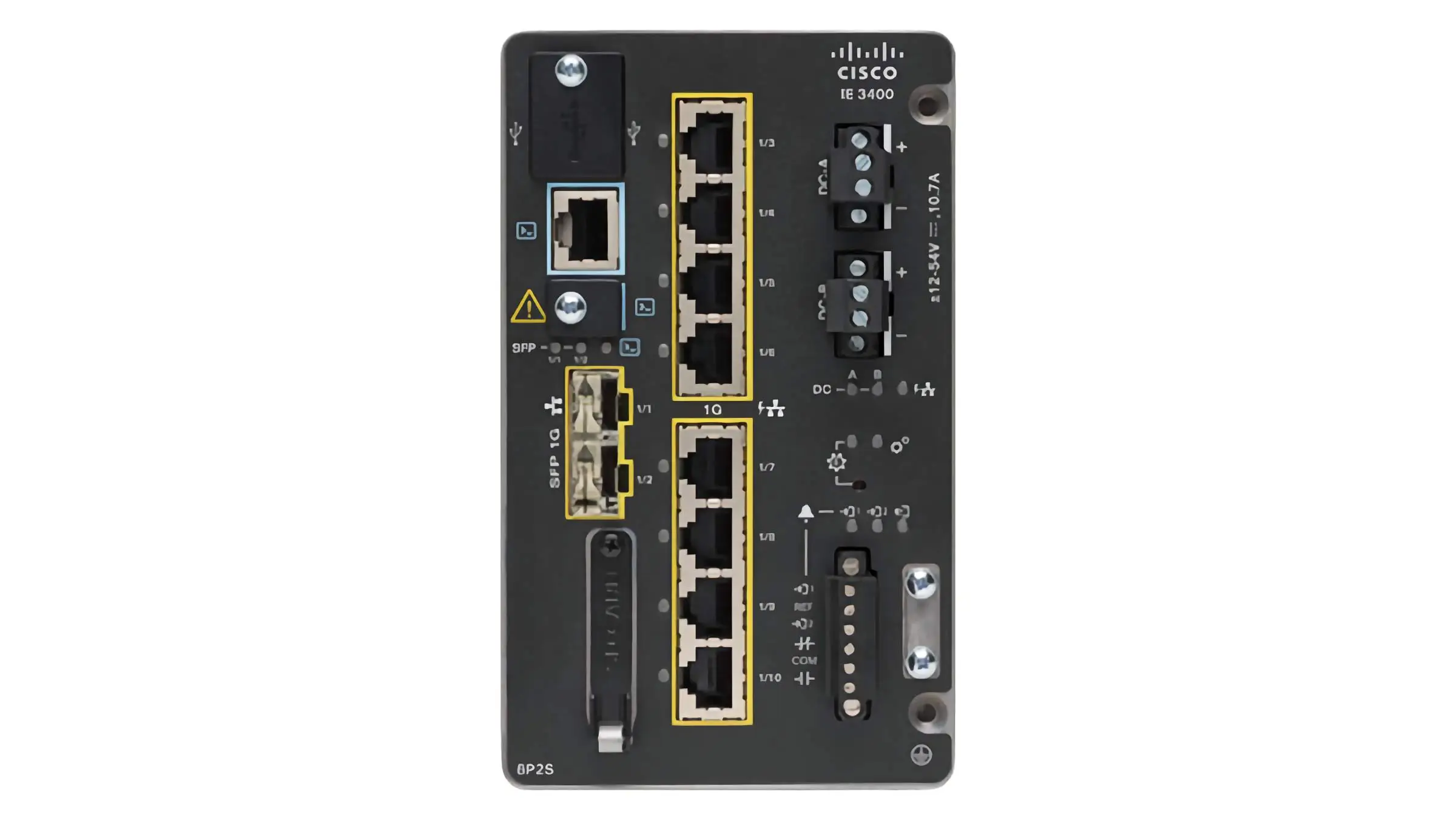

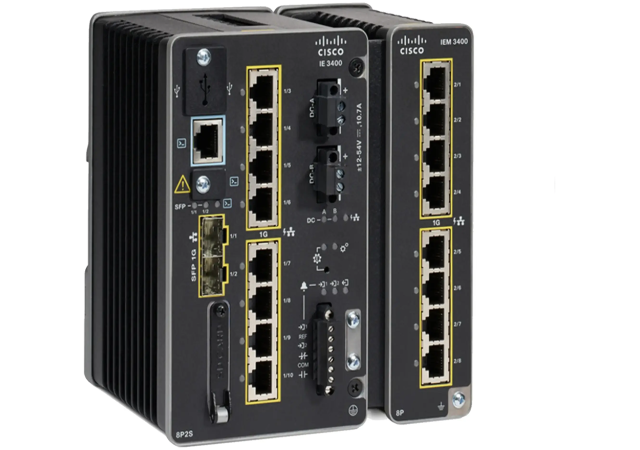

Cisco Part Number: IE-3400-8P2S-A is a Catalyst IE3400 with 8 GE PoE/PoE+, 2 GE SFP, Adv. Modular, Network Advantage
The Cisco Catalyst IE3400 Rugged Series switches provide advanced Gigabit Ethernet connectivity in a compact form factor, catering to diverse industrial applications that demand robust and durable products. Designed for challenging environments in manufacturing, energy, transportation, mining, smart cities, and oil and gas sectors, the modular Cisco Catalyst IE3400 Rugged Series offers the flexibility to expand up to 26 ports of Gigabit Ethernet using various expansion module options. Additionally, it is well-suited for extended enterprise deployments in outdoor spaces, warehouses, and distribution centers.
Running on the Cisco IOS XE, a cutting-edge operating system with embedded security and trust features, including secure boot, image signing, and the Cisco Trust anchor module, the IE3400 Series ensures a secure networking environment. Cisco IOS XE also supports API-driven configuration with open APIs and data models, enhancing customization possibilities.
The management of the Cisco Catalyst IE3400 Rugged Series is facilitated by robust tools such as Cisco DNA Center, and the platform can be easily configured through a modern GUI tool named WebUI. Furthermore, it supports Full Flexible NetFlow (FNF), providing real-time visibility into traffic patterns and enabling thorough threat analysis through Cisco Stealthwatch.
The IE3400 Series boasts resilient features like Media Redundancy Protocol (MRP), Resilient Ethernet Protocol (REP), Device Level Ring (DLR), and dual-input power supplies, ensuring robust network stability.
With an expansion module, the IE3400 series supports a power budget of up to 480W for PoE/PoE+, distributed across 24 ports. This capability makes it an ideal choice for connecting PoE-powered end devices such as IP cameras, phones, wireless access points, sensors, and more. The platform offers versatility, durability, and security, making it a reliable solution for demanding industrial and enterprise environments.
IE3400 Hardware configurations
| Product number* | Total ports | 10/100/1000 RJ45 Copper ports | 100/1000 SFP ports | 1GE/2.5G RJ45 Copper ports | Software license (Default)** | PoE/ |
|---|---|---|---|---|---|---|
| PoE (+) budget | ||||||
| IE-3400-8T2S-E | 10 | 8 | 2 | N.A. | Network Essentials | N.A. |
| IE-3400-8T2S-A | 10 | 8 | 2 | N.A. | Network Advantage | N.A. |
| IE-3400-8P2S-E | 10 | 8 | 2 | N.A. | Network Essentials | 240W (base), 480W (with expansion module) |
| IE-3400-8P2S-A | 10 | 8 | 2 | N.A. | Network Advantage | 240W (base), 480W (with expansion module) |
| Brand | Cisco |
|---|---|
| Product type | Switch |
| Product Family | Catalyst, Industrial |
| Number of ports | 10 ports |
| Ports specification | 8 x 10/100/1000 + 2 x Gigabit SFP |
| Switching layer | L2 |
| Managed | Yes |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 240 W |
| Forwarding rate | N/A |
| Switching capacity | N/A |
| MAC Address Table Size | 16000 |
| VLANs supported | 256 |
| Routing Protocols | OSPF (IPv4 and IPv6), BGP (v4 and v6), ISIS (v4 and v6), RIP (v1 and v2), EIGRP (v4 and v6), Policy based routing (PBR), VRRP (v4 and v6), HSRP (v4 and v6), BFD Echo Mode for OSPFv3 |
| Stackable | No |

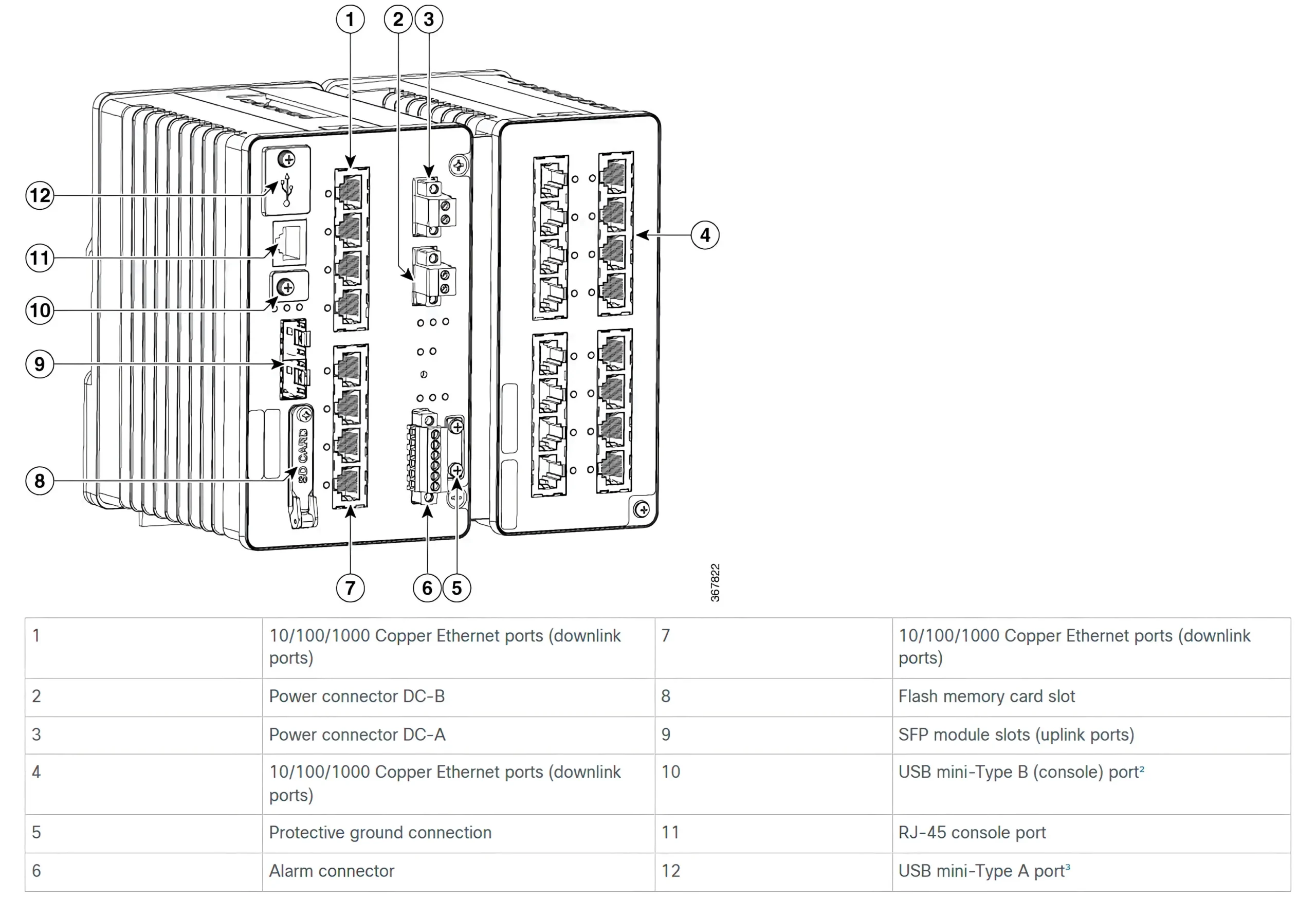

| Interfaces | 8 x 10/100/1000 Base-T RJ-45 ¦ 2 x 1000Base-X SFP ¦ 1 x serial (RS-232) RJ-45 ¦ 1 x mini-USB Type B ¦ 2 x alarm ¦ 1 x alarm |
| RAM | 4 GB |
| Flash | 1.5 GB |
| Expansion Slots | 1 (total) / 1 (free) x SD Memory Card |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -40 °C |
| MTBF | 401,313 hours |
| Power Supply | External power adapter |
| Included Accessories | N/A |

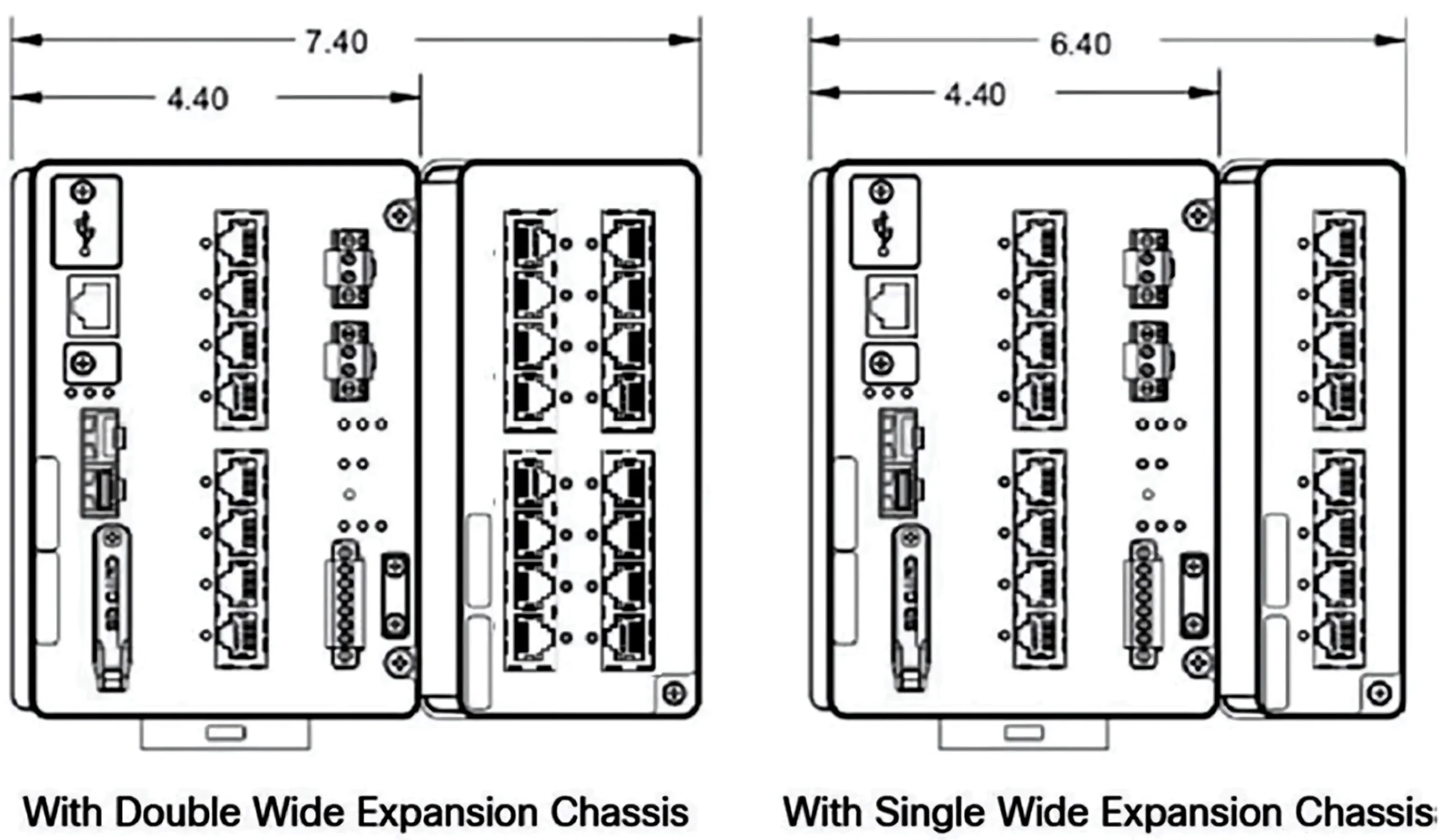

| Width | 11.2 cm |
| Depth | 13.5 cm |
| Height | 15.2 cm |
| Weight | 2.3 Kg |
| Warranty | Five-year limited HW warranty |
