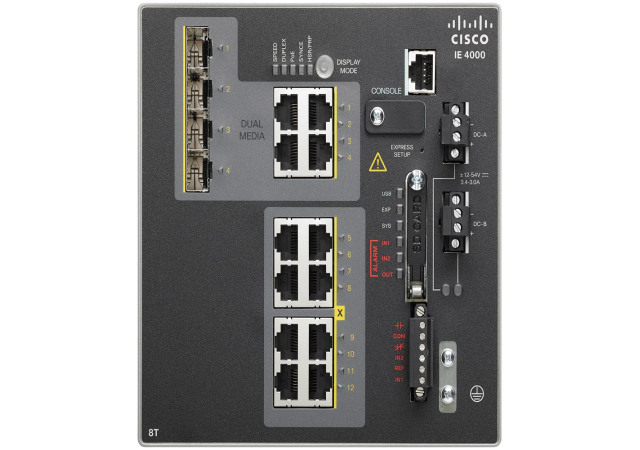

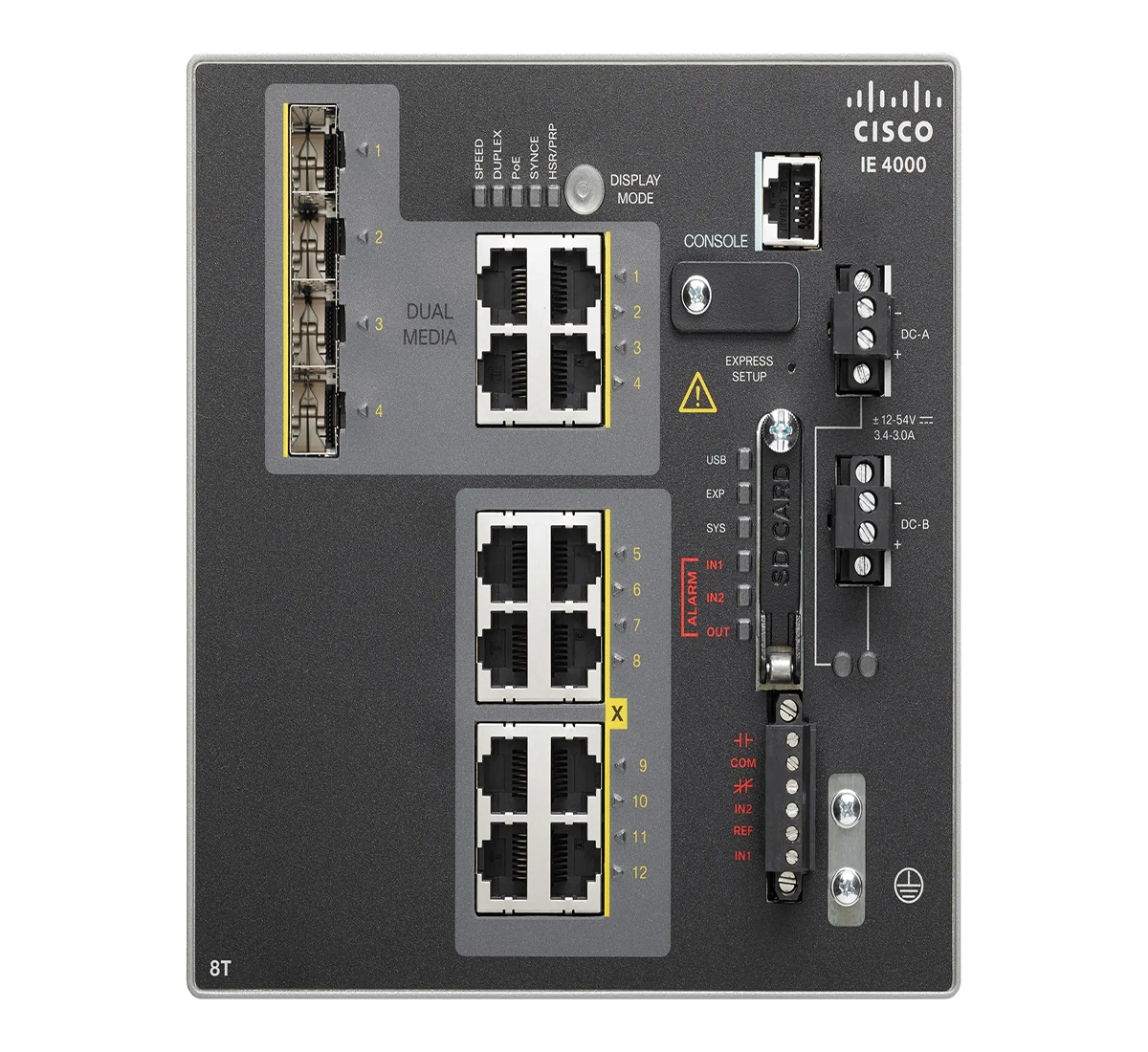

Cisco Part Number: IE-4000-8T4G-E is a IE4000 switch with 8 FE copper and 4 GE combo uplink ports
The Cisco Industrial Ethernet (IE) 4000 Series enhances Cisco's ruggedized switching portfolio by providing Gigabit connectivity, superior high-bandwidth switching capacity, and the reliability of Cisco IOS Software. This series ensures highly secure access and incorporates industry-leading convergence ring protocols, thereby supporting resilient and scalable networks in compliance with industry requirements.
Designed for applications in industrial Ethernet settings that demand robust and durable solutions, the IE 4000 Series finds its utility in manufacturing, energy, transportation, and smart cities. The IE 4000 is equipped with built-in SW image verification, guaranteeing the authenticity of Cisco Software. Boasting improved overall performance, increased bandwidth, advanced security features, and enhanced hardware capabilities, the Cisco IE 4000 Series seamlessly complements the existing industrial Ethernet portfolio, which includes switches like the Cisco IE 2000, IE 3200, IE 3300, and IE 3400.
With its versatility, the IE 4000 Series facilitates the secure extension of enterprise networks into challenging environments. It supports a software-defined access extension for the Internet of Things (IoT), enabling connectivity in outdoor areas, warehouses, distribution centers, roadways, etc. This extension is managed through a robust enterprise-grade intent-based network management platform, such as the Cisco DNA Center.
The installation and configuration of the Cisco IE 4000 are made user-friendly through a GUI-based Device Manager. It also provides out-of-the-box industrial usage configuration and simplified manageability, ensuring advanced security and facilitating the delivery of data, video, and voice services over industrial networks. The IE 4000 Series stands as a reliable solution for organizations seeking efficient and secure networking solutions in challenging and demanding industrial environments.
Hardware configuration:
|
Product number |
Total ports |
GE combo (SFP or RJ45) uplinks (4G)1 |
Additional combo (SFP or RJ45) ports |
RJ45 copper ports (T) |
SFP fiber ports (S) |
PoE/PoE+ ports (P, GP), Maximum PoE power budget |
Default software License |
|---|---|---|---|---|---|---|---|
|
IE-4000-8T4G-E |
12 |
4 GE combo uplink ports |
|
8 FE |
|
|
LAN Base feature set2 |
1 Combo ports provide one copper and one fiber physical port and only one can be activated at a time.
