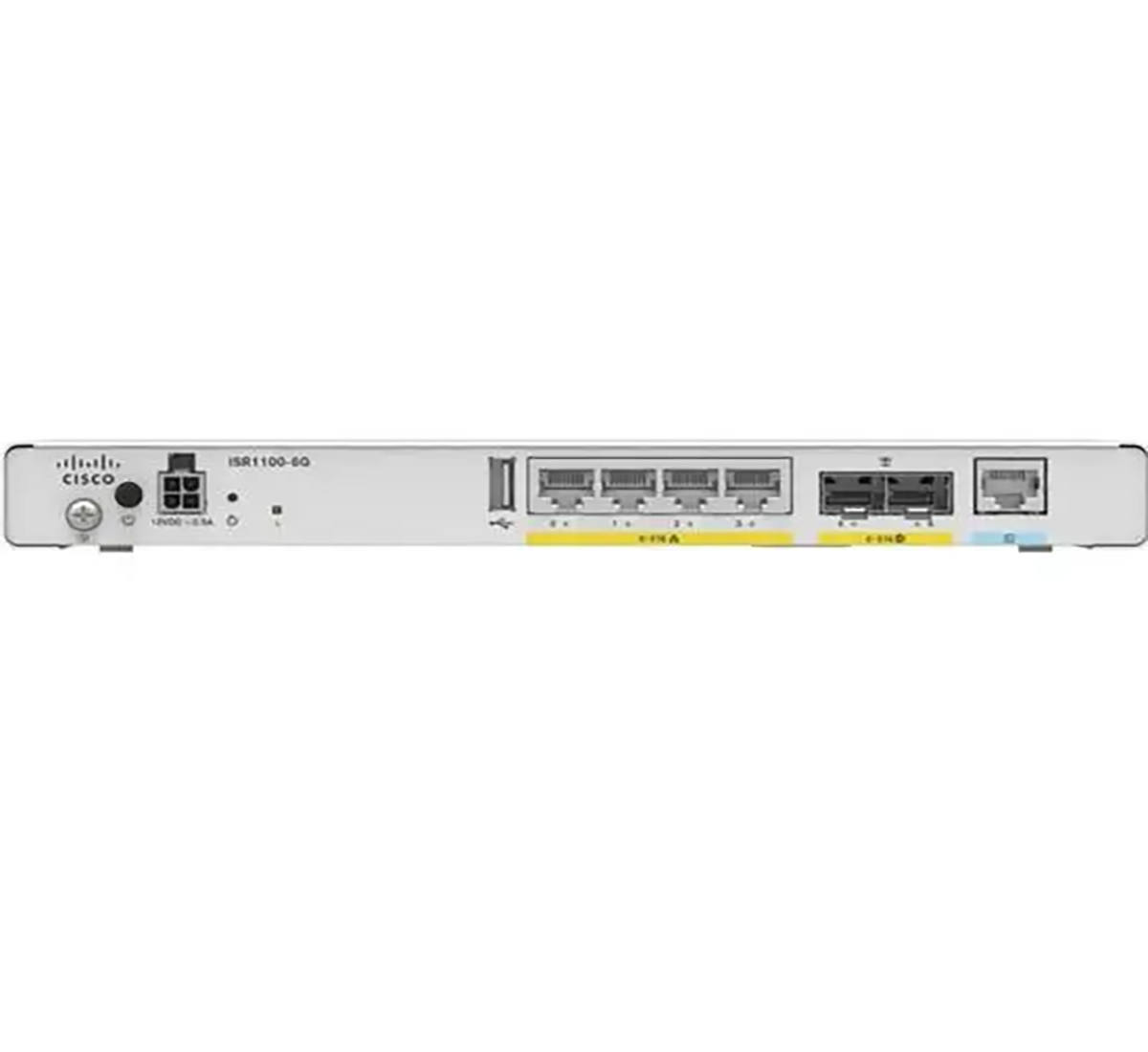

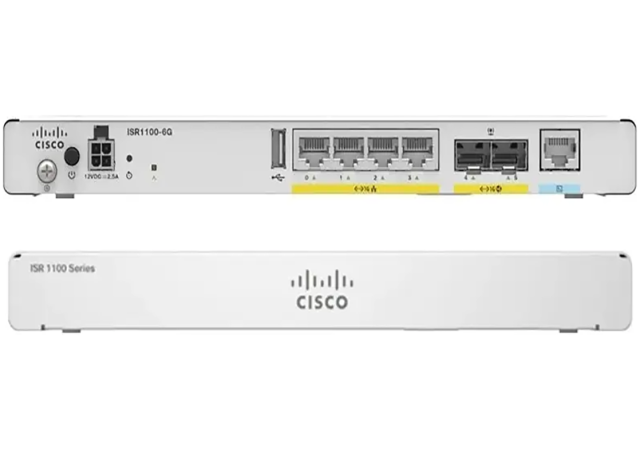

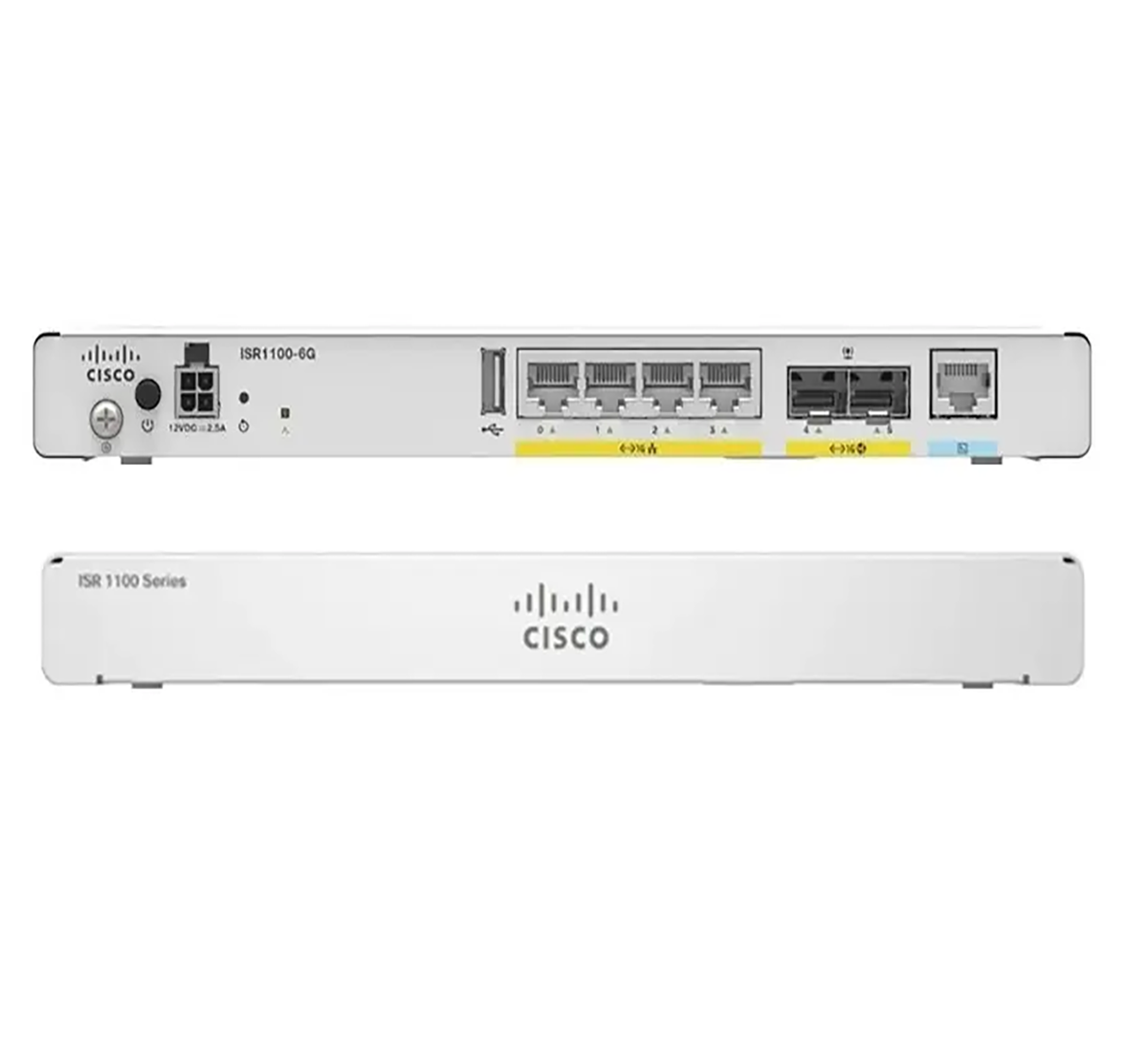

Cisco Part Number: ISR1100-6G is a Cisco ISR1100 Router, 4 GE LAN/WAN Ports and 2 SFP ports, 4GB RAM
The ISR 1100 Series and ISR 1100X Series, integral components of the Cisco 1000 Series Integrated Services Routers (ISR), operate on either the Viptela operating system or the IOS XE SD-WAN operating system. These devices seamlessly integrate wide area network (WAN) capabilities with robust security features, presenting a high-performance, wired platform.
Designed to deliver enterprise-grade performance coupled with top-tier SD-WAN functionality, both the ISR 1100 Series and ISR 1100X Series routers provide a powerful solution for diverse networking needs. The ISR 1100 Series is equipped with 4GB DRAM, while the ISR 1100X Series boasts 8GB DRAM, catering to varying requirements.
Cisco Software-Defined WAN (SD-WAN) introduces a cloud-first approach, furnishing unmatched visibility into your WAN infrastructure, ensuring optimal connectivity for end-users, and delivering a comprehensive security framework for safeguarding your network. This innovative architecture offers transport independence, a wide array of network and security services, and flexibility in endpoint configurations.
Functioning as perimeter devices for sites like remote offices, branch offices, campuses, or data centers, the ISR 1100 Series and ISR 1100X Series routers play a pivotal role in establishing secure virtual overlay networks across diverse WAN transports. Operating in controller mode, they facilitate the creation and management of these networks, ensuring robust security and seamless connectivity.
Performance specification of the ISR1100 series
|
Performance parameter |
ISR 1100X-6G |
ISR 1100-6G |
ISR 1100X-4G |
ISR 1100-4G |
|---|---|---|---|---|
|
SD-WAN IPsec throughput (1400 Bytes) |
1889 Mbps |
1889 Mbps |
477 Mbps |
477 Mbps |
|
SD-WAN IPsec throughput (IMIX) |
972 Mbps |
972 Mbps |
411 Mbps |
411 Mbps |
|
SD-WAN overlay tunnels |
3000 |
1500 |
500 |
250 |
Cisco ISR1100-6G chassis specification:
| Item | Specification |
|---|---|
| Services and Slot Density | |
| CPU | Intel 2.2 GHz 4-core |
| RJ45 Console | 1 |
| USB Type A | USB 3.0, 4.5 W Maximum. |
| Bulk Flash | Cisco ISR1100-6G: |
| 8GB eMMC pSLC (5.8 GB usable) | |
| Cisco ISR1100X-6G : | |
| 16GB eMMC pSLC (13.1 GB usable) | |
| Serial Flash | Dual 16 MB |
| Memory DDR4 ECC DRAM | Cisco ISR1100-6G: 4 GB |
| Cisco ISR1100X-6G : 8 GB | |
| GE WAN Ports | 4 |
| GE SFP Ports | 2 |
| Physical Specifications | |
| Form Factor | 10.2 in x 7 in x 1.1 in |
| Operating Conditions | |
| Temperature | Fanless design |
| 0 to 40°C (32 to 104°F) at sea level (temperature de-rating of 1.5 deg C per 1000 feet of altitude applicable up to max of 10,000 feet or 3000 m) | |
| Altitude | Maximum 3000 m (10000 ft) |
| Humidity | 10 to 85% RH non-condensing |
| Transportation/Storage Conditions | |
| Temperature | -40 to 70°C (-40 to 158°F) |
| Humidity | 5 to 95% RH non-condensing |
| Altitude | 4570 m (15000 ft) |
| Reliability | |
| MTBF | Approximately 1.6 million hours (about 183 years) at 25°C ambient |
