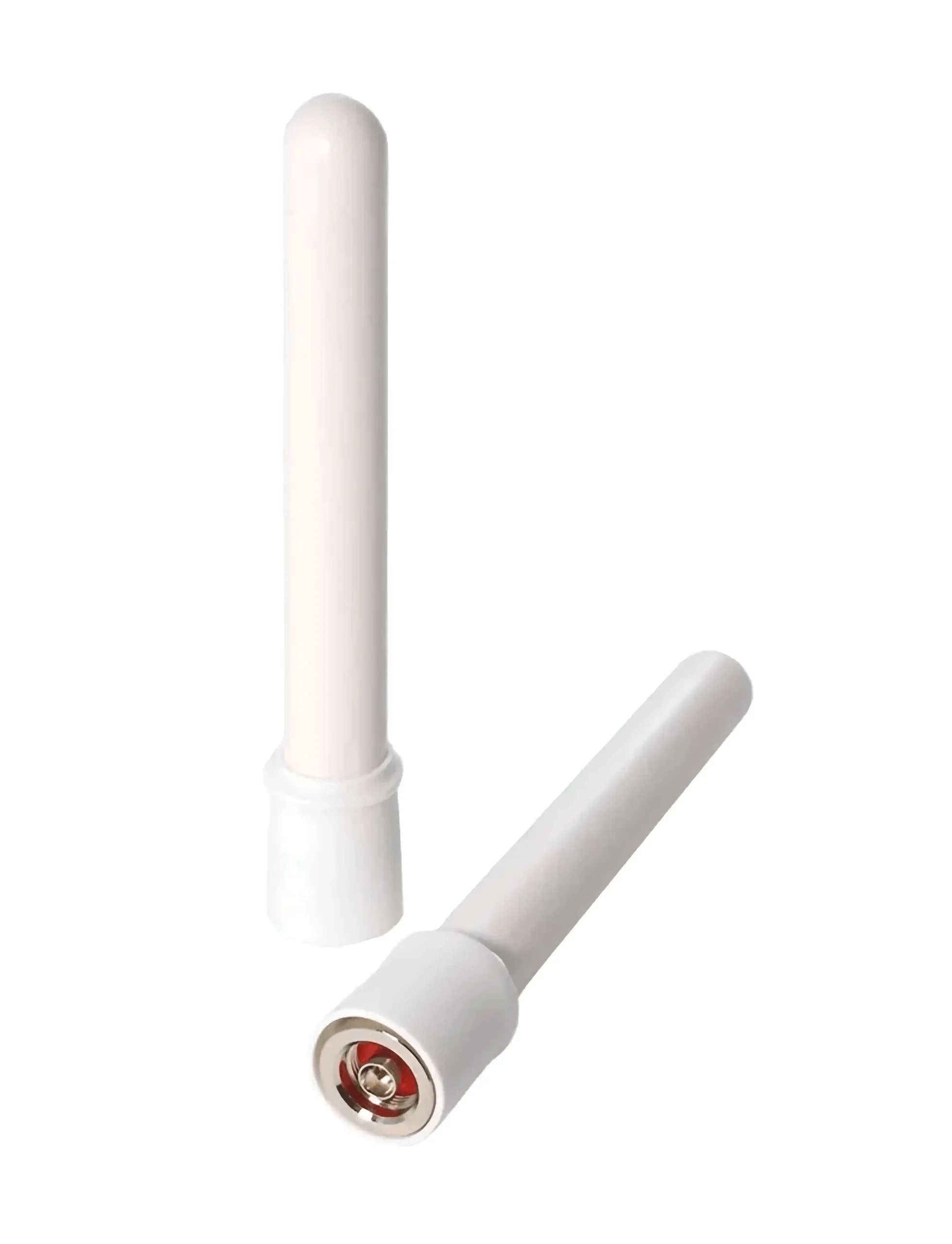

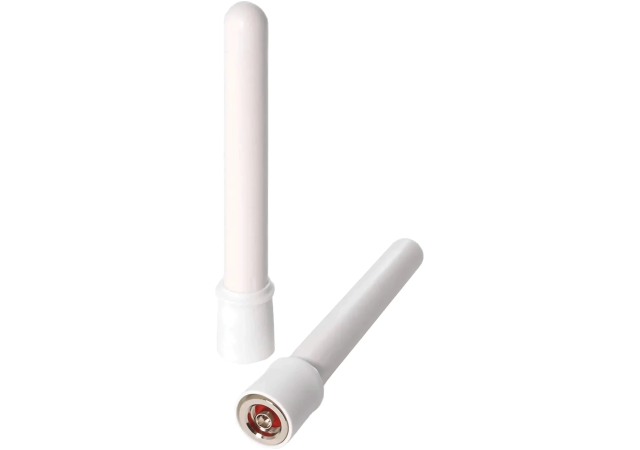

Cisco Meraki MA-ANT-20 - Dual-band antennas

Meraki Part Number: MA-ANT-20 is a Meraki Dual-band omni-antennas (4/7 dBi)

Compatibility: MR62, MR66, MR72, MR74, MR76, MR84, MR86

Improve the reach and connectivity of a network by increasing signal strengths between repeaters and clients.

The Meraki antenna is a multi-band, omni-directional antenna designed for use with Meraki APs that have N-type connectors. It
is a versatile antenna and is suitable for a broad range of applications. The MA-ANT-20 is sold in sets of 2.

Key features:

• Antenna type: omni-directional
• Frequency range: (2 GHz): 2.400 - 2.500 GHz; (5 GHz): 5.150 – 5.875 GHz
• Gain: 4/7 dBi
• Half-power bandwidth/horizontal: 360° / vertical: 45°
• Dimensions: 1.0 in × 7.1 in (25 mm × 180 mm), 0.17 lbs (79 g)
• Material: ABS plastic
• Temperature: -40°F – 158°F (-40°C – 70°C)

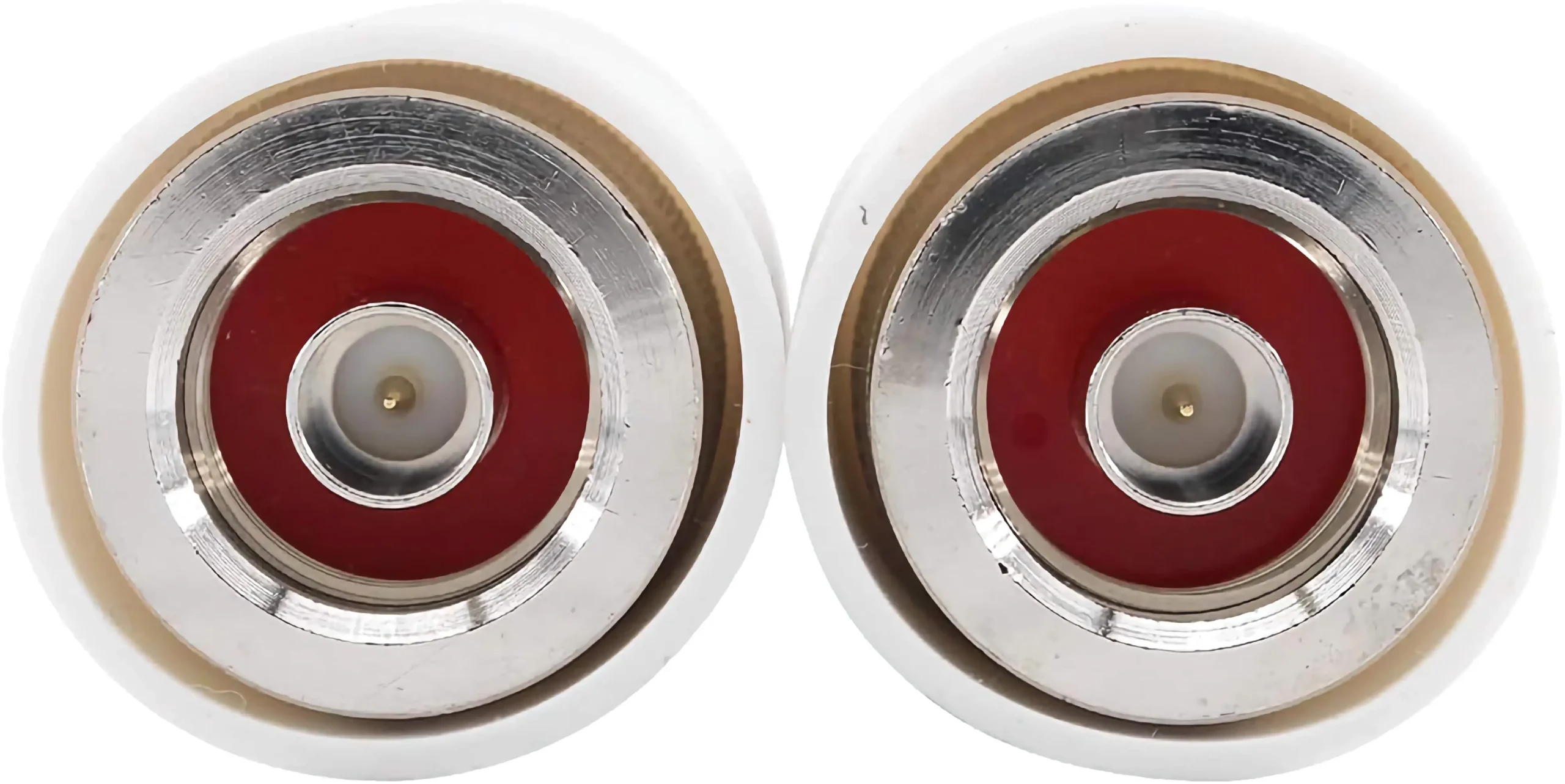

• Connector: N-type

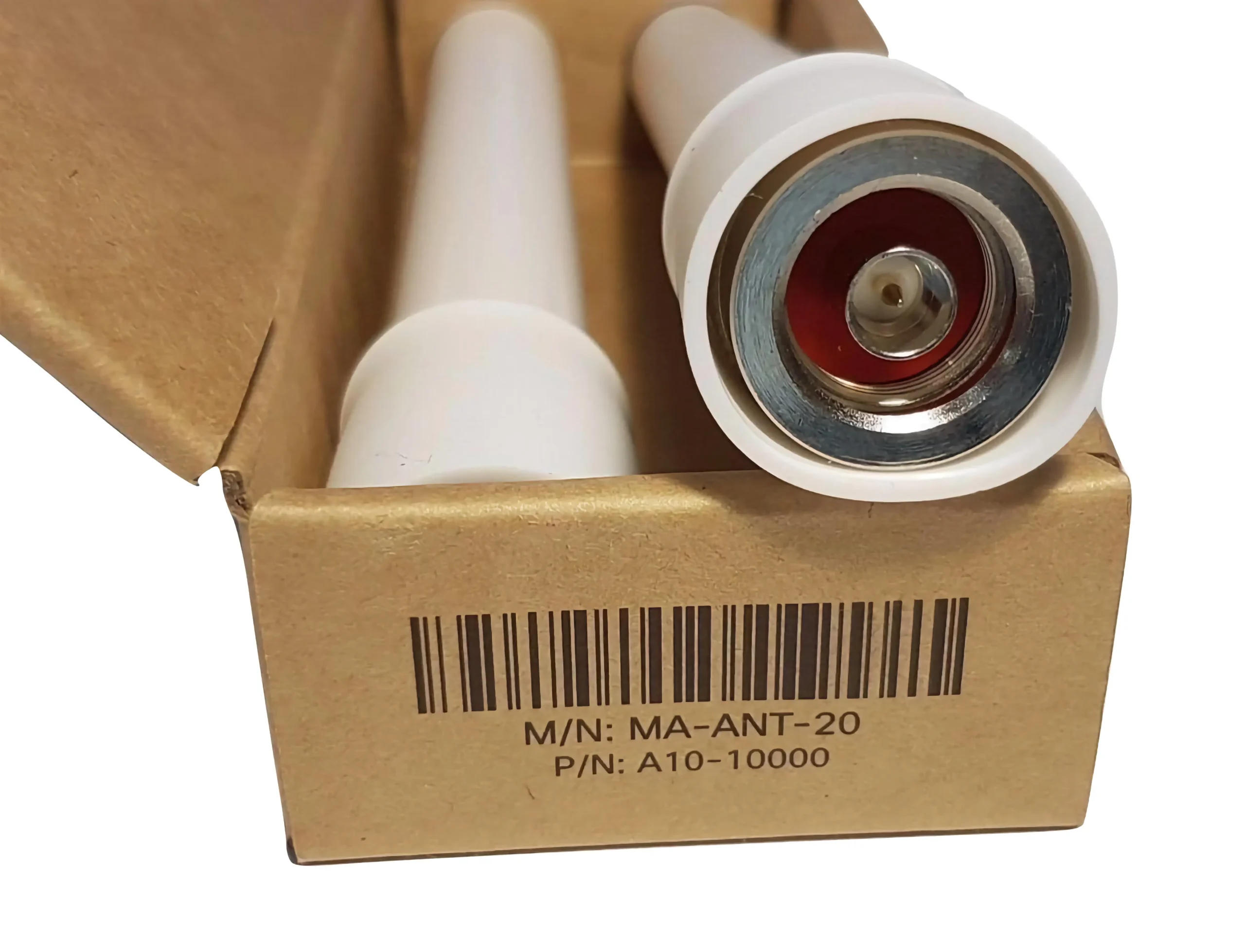

• Contains two Cisco Meraki MA-ANT-20 antennas
• Directly to unit (no cable required)
