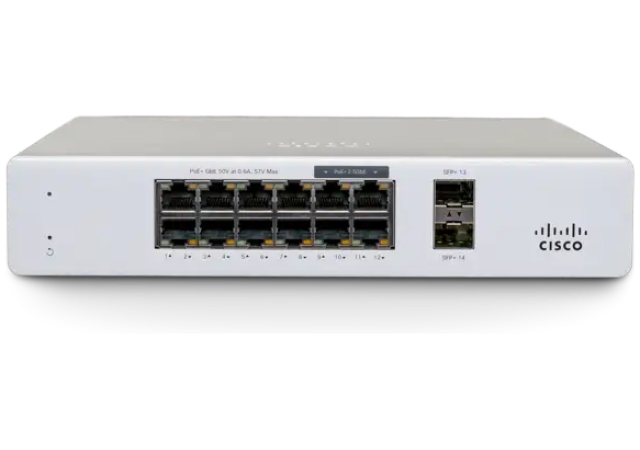

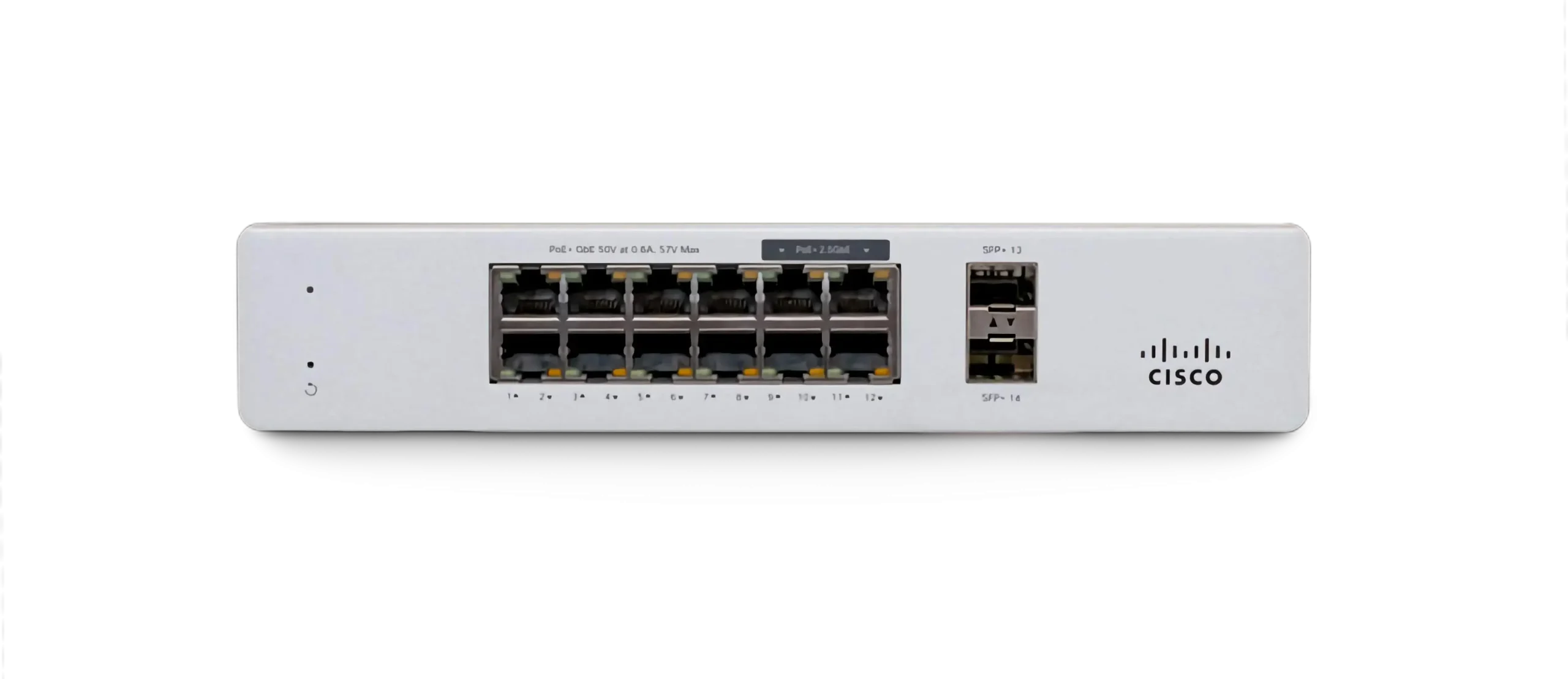

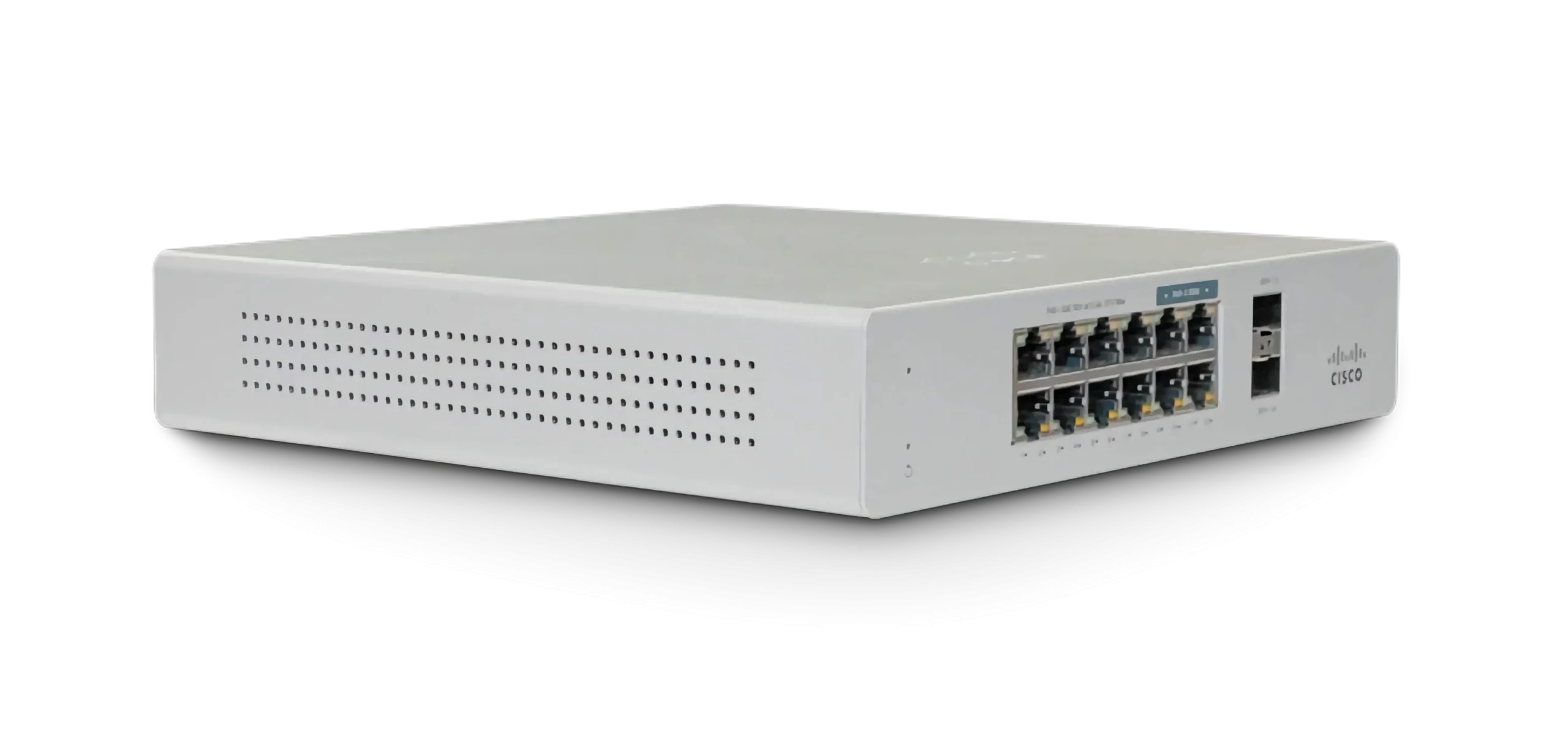

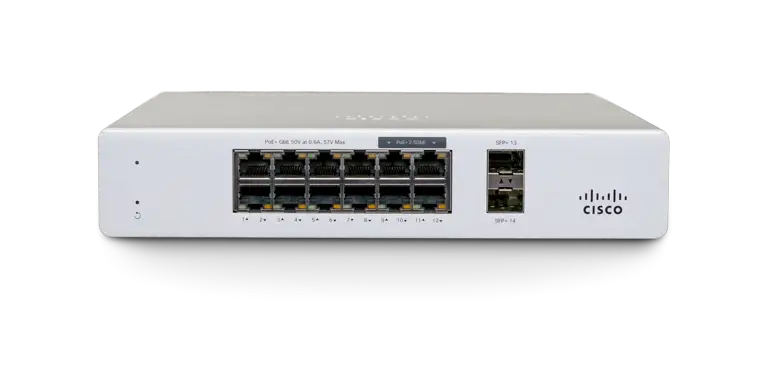

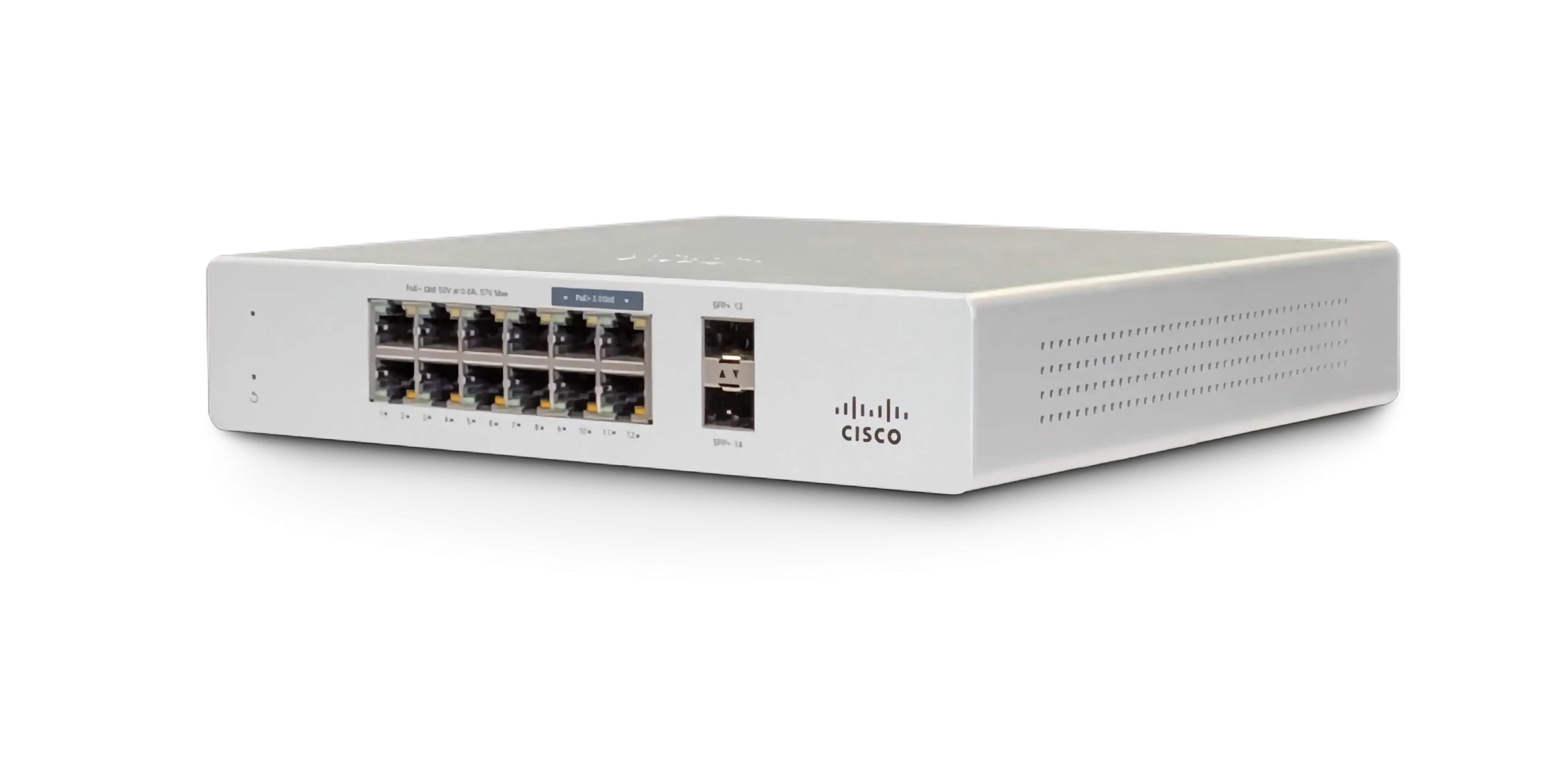

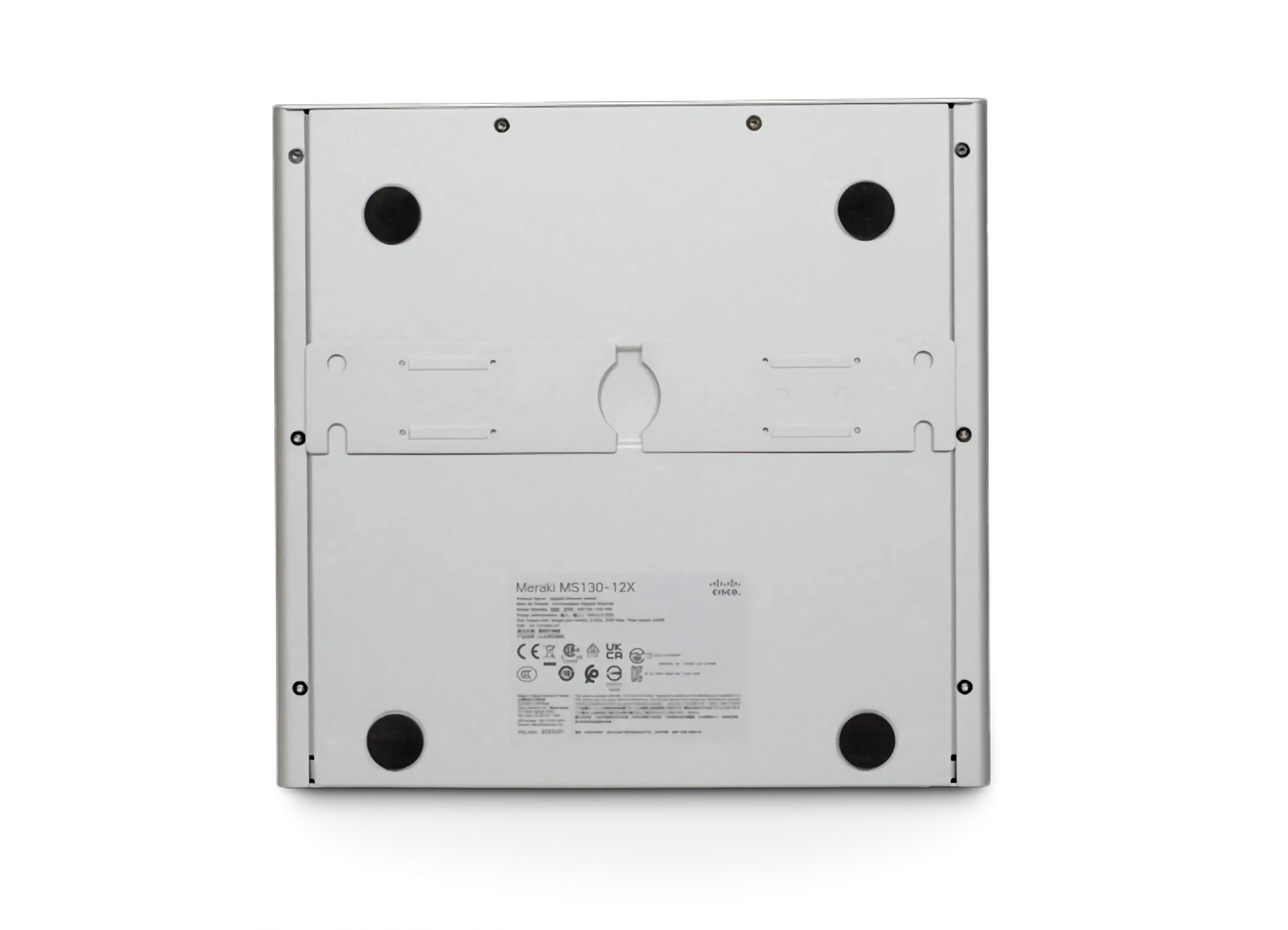

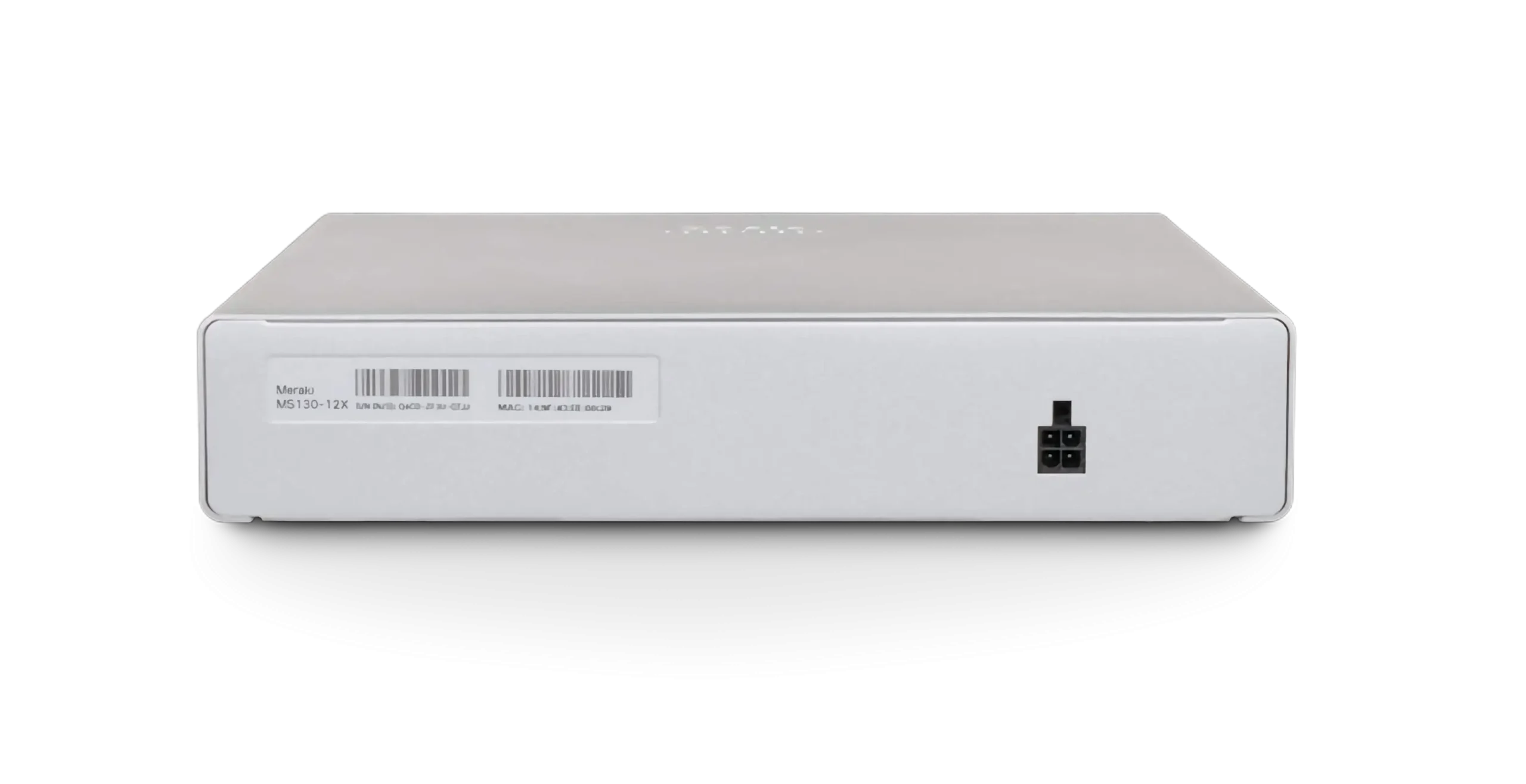

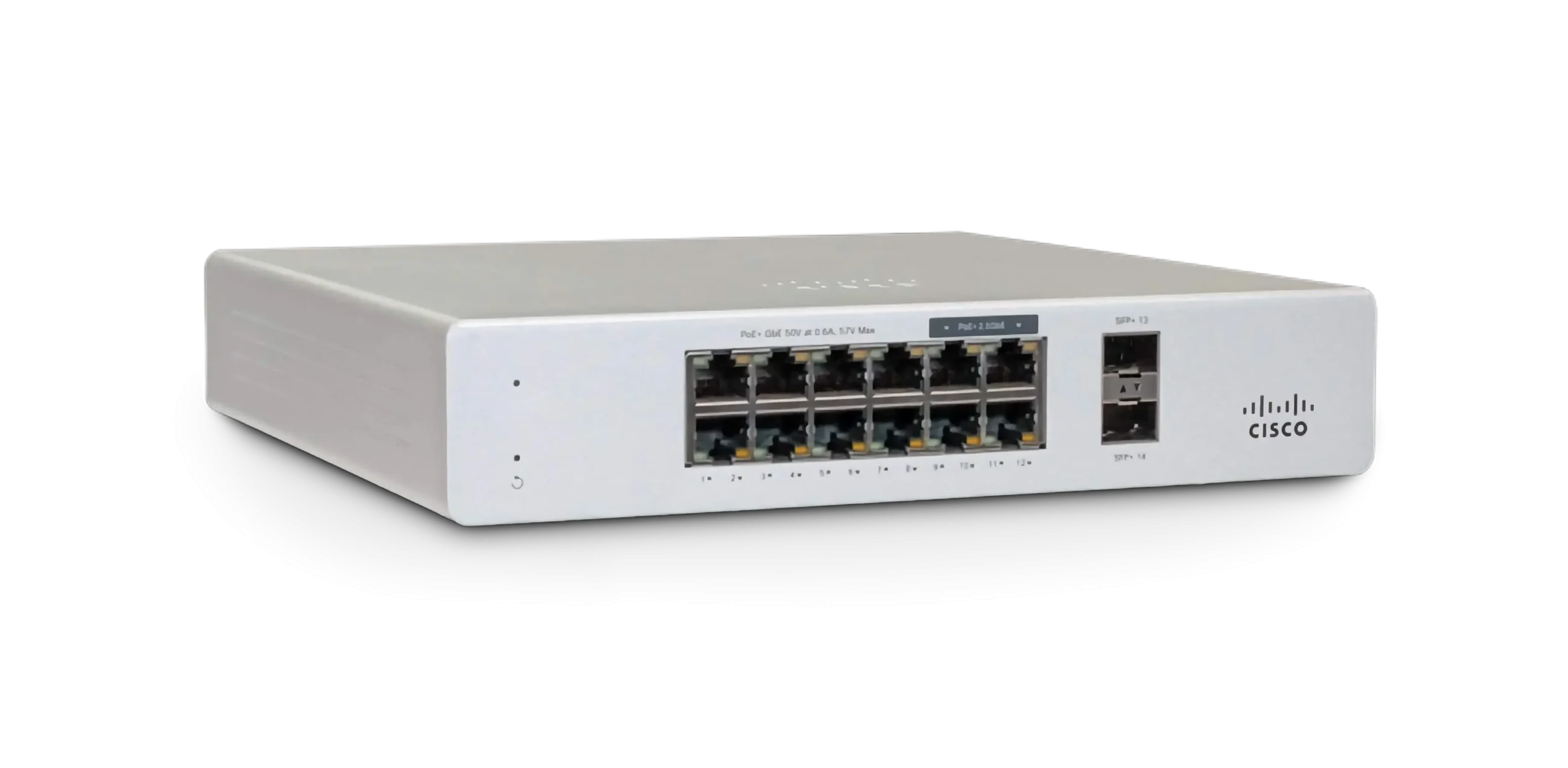

Cisco Meraki MS130-12X-HW - Compact PoE Switch

Meraki Part Number: MS130-12X-HW is a Meraki MS130-12X Cloud Mgd. 8GE + 4x(2.5GE) 240W PoE Switch

MS130-12X-HW quick specification:

• Interfaces: 8 x 1 GbE RJ45, 4 x 2.5GbE RJ45
• Uplinks: 2x 10 GbE SFP+
• Switching Capacity: 76 Gbps
• PoE budget: 240 W PoE+

Cisco Meraki MS130 switches are designed for Layer 2 access switching, ideal for both branch offices and campus deployments. The MS130 series offers various configurations to address diverse networking needs, with up to 740W power support and multiple port densities, including SFP+ uplinks. These switches are well-equipped to handle future wireless infrastructure demands, making them suitable for a wide range of environments. With 10 models available, the MS130 switches provide flexible and scalable solutions for modern networking requirements.

MS130 series Features:

• Managed through the Cisco Meraki Dashboard for streamlined control.
• Remote Packet Capture tools accessible via the Meraki Dashboard.
• Supports automatic firmware upgrades for enhanced security and performance.
• Integration with SNMP/Syslog for network monitoring.
• IPv4/6 Access Control List (ACL) support.
• 802.1Q VLAN tagging for network segmentation.
• DHCP Snooping for enhanced network security.
• 802.1X Authentication for secure access control.
• 10/100/1000 Mbps RJ45 and 100M/1G/2.5G mGbE RJ45 connectivity.
• Available models with 4x 10 Gbps SFP+.
• 802.3bt PoE with up to 30W per port.
