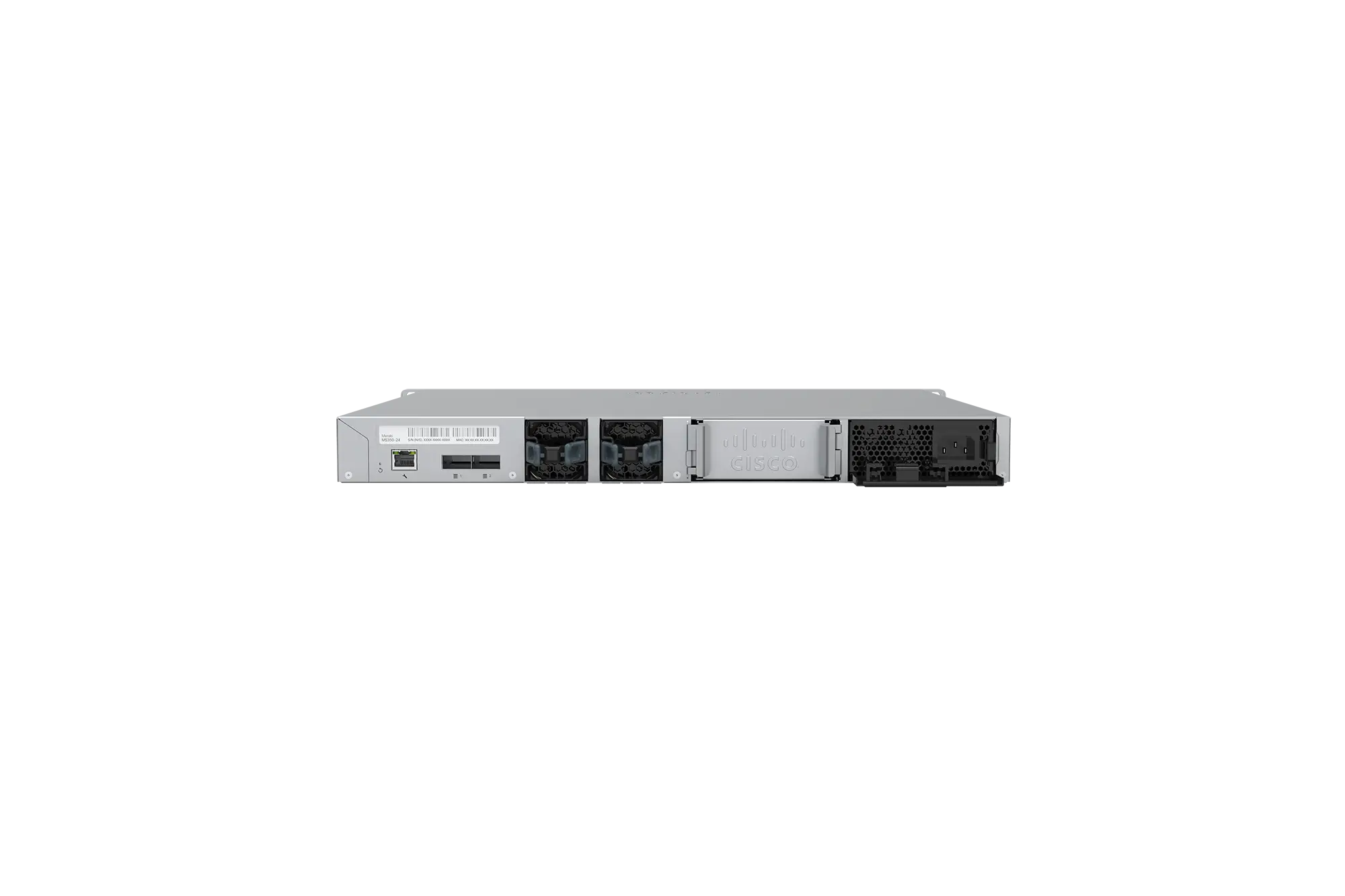

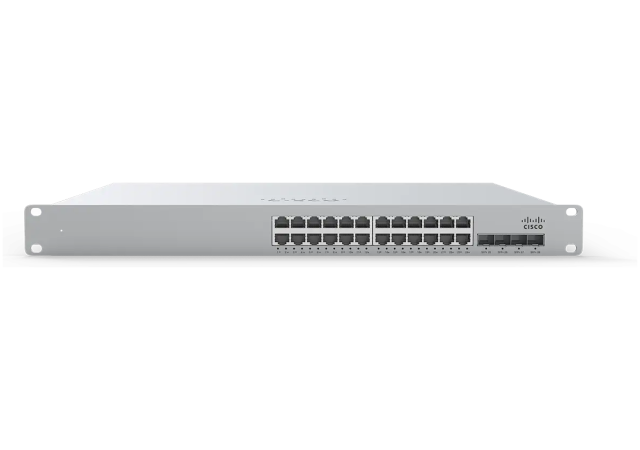

Cisco Meraki Part Number: MS350-24P-HW is a Meraki MS350-24 L3 Stackable Cloud-Managad 24x GigE 370W PoE+ Switch
Quick Specs:
• 24 x 10/100/1000BASE-T Ethernet RJ45 with auto negotiation and auto-MDIX3
• 4 x SFP+ 10GbE uplink
• 2 x stacking ports
• 370 W PoE / PoE+
The Cisco Meraki MS350 series offers 10G SFP+ uplinks and high-performance access switching for large enterprises and campuses. With optional PoE/PoE+ support, scalable Layer 3 routing, and modular power/fans, it's ideal for mission-critical networks. The MS350-24X features 8 multigigabit ports and UPoE support. Managed through an intuitive cloud-based interface, Meraki switches eliminate the need for cryptic command lines. Simply plug in and configure without CLI. Meraki's centralized management provides granular network visibility with detailed event and change logs.
Technical comparison of MS350-24 Models
| MS350-24 | MS350-24P-HW | MS350-24X | |
|---|---|---|---|
| 1GbE RJ45 | 24 | 24 | 16 |
| 10GbE SFP+ | 4 | 4 | 4 |
| mGbE RJ45 (100M/1G/2.5G/5G/10G) | - | - | 8 |
| 40G Hardware Stack Port | 2 | 2 | 2 |
| Dedicated Mgmt Interface | 1 | 1 | 1 |
| Hot Swap Fans | Yes | Yes | Yes |
| Hot Swap Power Supply | Yes, Dual | Yes, Dual | Yes, Dual |
| Layer 3 Switching | Yes | Yes | Yes |
| UPoE Capable | - | - | Yes |
Throughput and Capabilities of MS350-24 Models
| MS350-24 | MS350-24P-HW | MS350-24X | |
|---|---|---|---|
| Layer 3 Routing | Yes | Yes | Yes |
| PoE+ Capable | - | Yes, 370W | Yes, 740W |
| UPoE Capable | - | - | Yes (8 mGbe ports) |
| Switching Capacity | 128 Gbps | 128 Gbps | 176 Gbps |
| Stacking Bandwidth | 160 Gbps | 160 Gbps | 160 Gbps |
