BRAND: Cisco

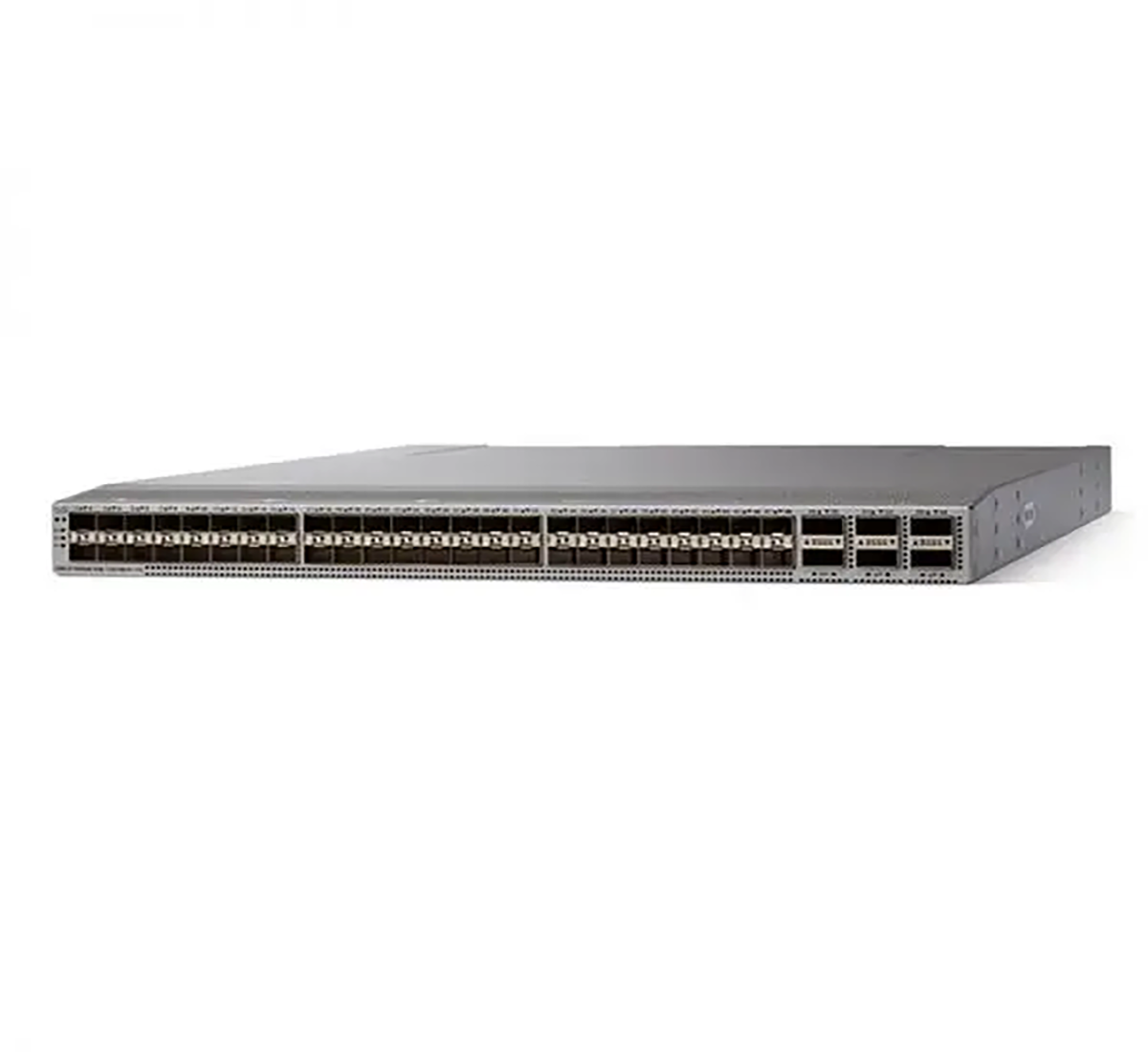

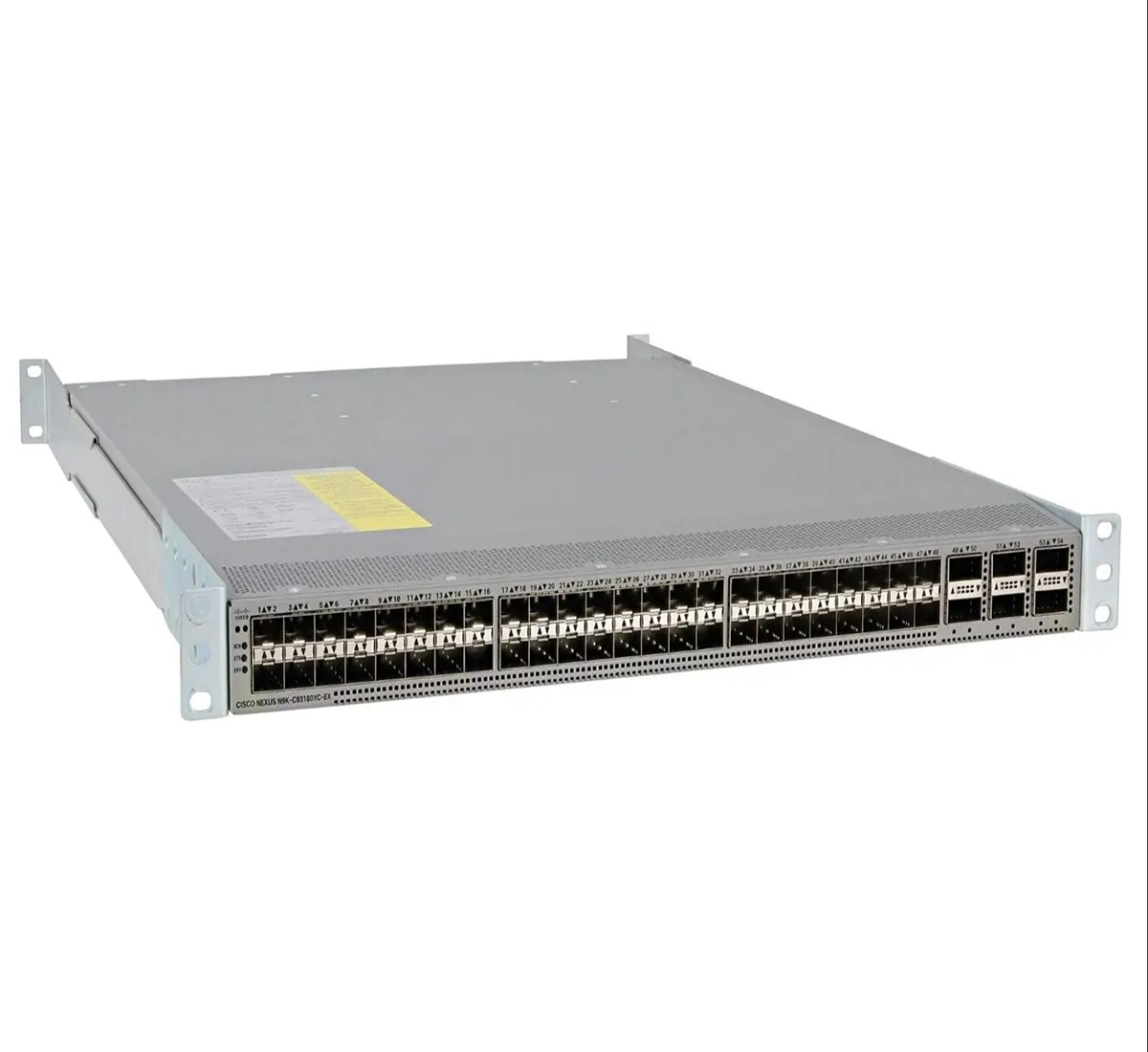

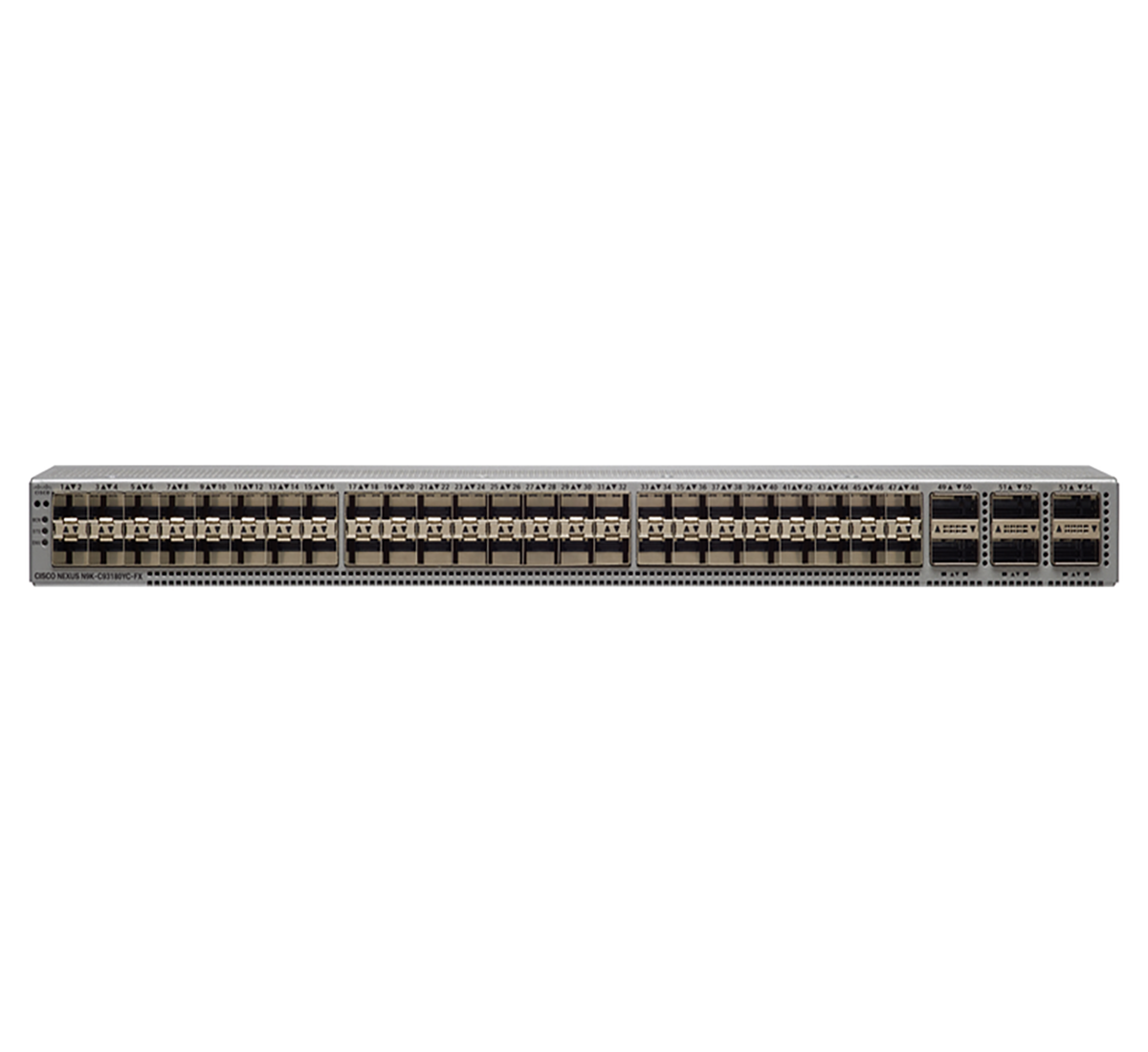

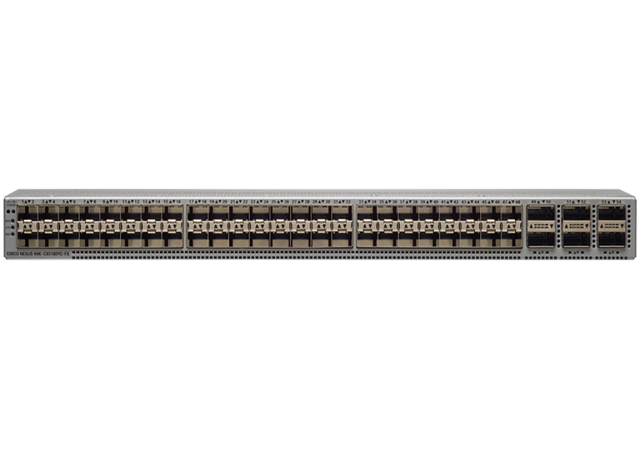

Cisco Nexus N9K-C93180YC-FX= - Data Centre Switch

MPN: N9K-C93180YC-FX=
Request a Quote
OUT OF STOCK
FINANCE AVAILABLE
Paypal Visa Mastercard American Express
Free Technical Support
Can't decide?
Free Technical Support
We can help you decide which hardware is best for you
orders@cloudappliances.co.uk 020 3880 8840 Mon-Fri: 8AM-7PM
Description
Tech Overview
Our Services
Links & Documents

Cisco Part Number: N9K-C93180YC-FX= is a Cisco Nexus 9300 with 48p 1/10G/25G SFP and 6p 40G/100G QSFP28, MACsec, and Unified Ports capable (spare)

The Cisco Nexus 9300-FX Series is part of the fixed Cisco Nexus 9000 platform, utilizing Cisco Cloud Scale technology. Designed for cost-effective cloud-scale deployments, it supports increased endpoints and cloud services with wire-rate security and telemetry. Built on a modern system architecture, this platform ensures high performance, catering to the evolving needs of highly scalable data centers and growing enterprises.

The Cisco Nexus 9300-FX series switches offer diverse interface options, facilitating a seamless migration from 100-Mbps, 1-Gbps, and 10-Gbps speeds to 25-Gbps at the server, and from 10- and 40-Gbps speeds to 50- and 100-Gbps at the aggregation layer. With large buffers, flexible Layer 2 and Layer 3 scalability, and high performance, these switches provide investment protection, addressing the dynamic requirements of virtualized data centers and automated cloud environments.

The Cisco Nexus N9K-C93180YC-FX= Switch: a 1RU switch boasting sub-1 microsecond latency, 3.6 Tbps bandwidth, and 1.2 bpps. With 48 downlink ports supporting 1-, 10-, or 25-Gbps Ethernet or 16-, 32-Gbps Fibre Channel options[1], it serves as a convergence point for primary storage, compute servers, and back-end storage at the top of the rack. The uplink accommodates six 40- and 100-Gbps ports or a mix of 1-, 10-, 25-, 40-, 50-, and 100-Gbps connections, allowing seamless migration. IEEE compliance, FC-FEC, RS-FEC for 25-Gbps, and wire-rate MACsec encryption on all ports ensure robust performance.

Cisco Nexus 9300-FX Series Switch specifications:

Feature

Cisco Nexus N9K-C93180YC-FX=

Cisco Nexus 93108TC-FX

Cisco Nexus 9348GC-FXP

Ports

48 x 1/10/25-Gbps and 6 x 40/100-Gbps QSFP28 ports

48 x 100M/1/10GBASE-T and 6 x 40/100-Gbps QSFP28 ports

48 x 1-GBASE-T ports, 4 x 1/10/25-Gbps SFP28 ports and 2 x 40/100 QSFP28 ports

Downlink supported speeds

1/10/25-Gbps Ethernet

16/32-Gbps Fibre Channel

100-Mbps and 1/10-Gbps speeds

100-Mbps and 1-Gbps speeds

CPU

6 cores

4 cores

4 cores

System memory

Up to 32 GB

24 GB

24 GB

SSD drive

128 GB

128 GB

128 GB

System buffer

40 MB

40 MB

40 MB

Management ports

1 RJ-45 port

L1 and L2 ports are unused

2 ports: 1 RJ-45 and 1 SFP+

2 ports: 1 RJ-45 and 1 SFP+

USB ports

1

1

1

RS-232 serial ports

1

1

1

Power supplies (up to 2)

500W AC, 930W DC, or 1200W HVAC/HVDC

500W AC, 930W DC, or 1200W HVAC/HVDC

350W AC, 440W DC

Typical power (AC/DC)*

260W

276W

178W
