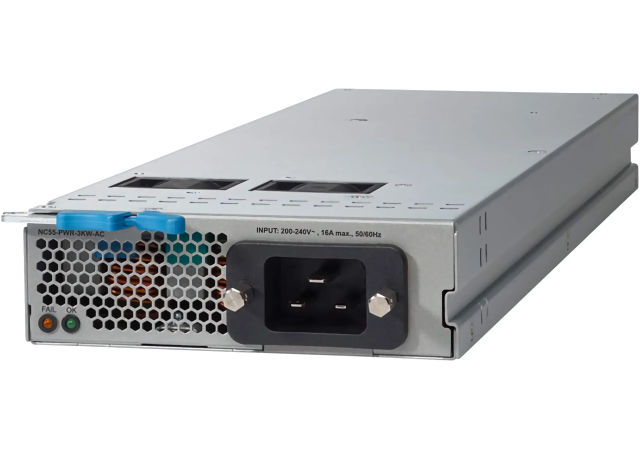

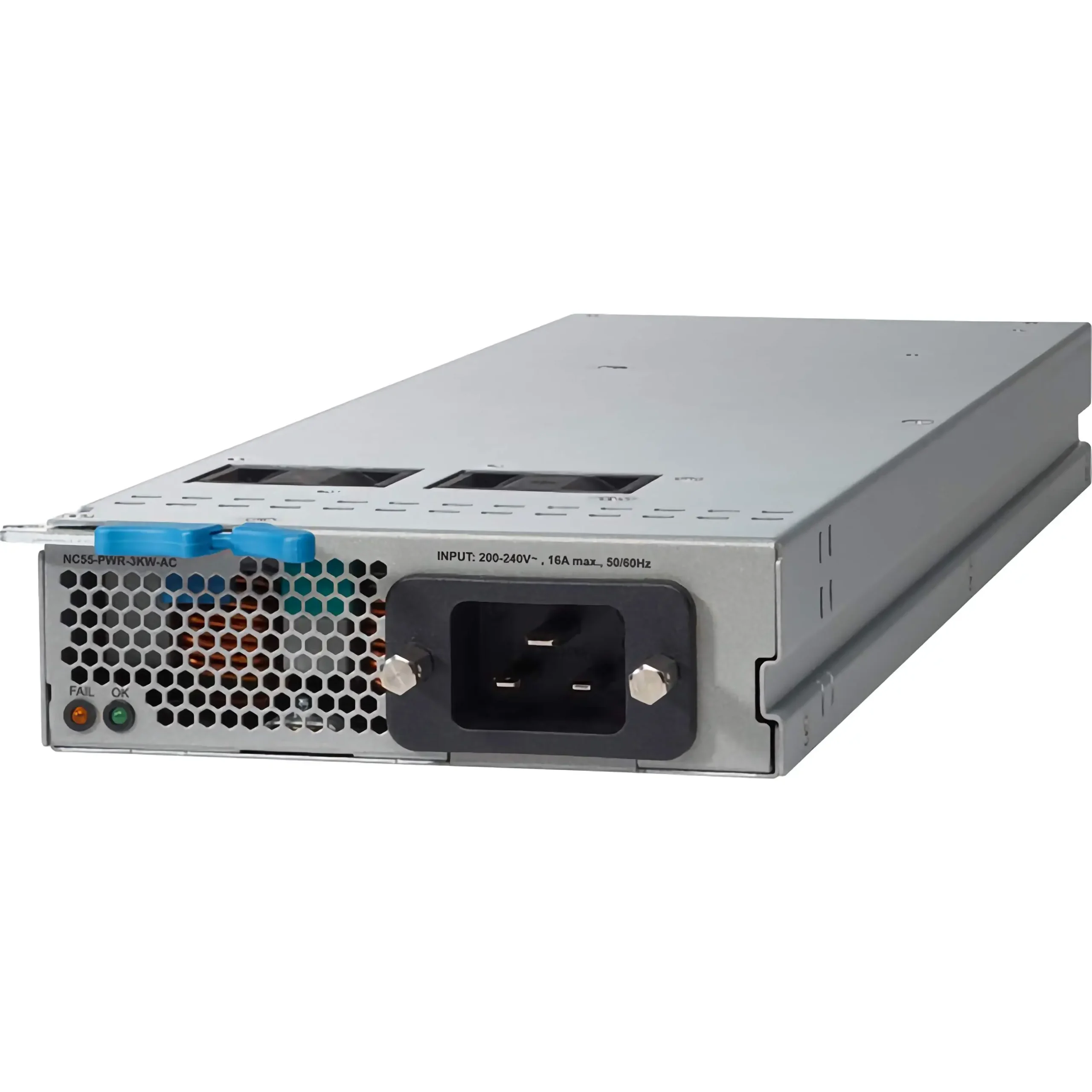

Cisco Part Number: NC55-PWR-3KW-AC= is a Cisco NCS 5500 AC 3KW Power Supply
The Cisco NCS 5500 Series supports hot-swappable, front-panel-accessible power supplies. N+1 and N+N (grid) redundancy modes are supported for a fully loaded Cisco NCS 5508, and N+1 and N+M redundancy modes are supported for a fully loaded Cisco NCS 5516. The 3000W AC and DC power supplies are 80 Plus Platinum rated, providing more than 92 percent efficiency across typical workloads.
The additional unused power-supply slots are not needed with existing line cards, but they offer headroom to support higher-bandwidth line cards in the future.
- 3000W AC power supply, single 20A input, 220V
- N+1 or N+N grid redundancy supported for Cisco NCS 5508
- N+1 or N+M redundancy supported for Cisco NCS 5516
- Hot swappable
- Front-panel-accessible
- 50 to 60 Hz frequency
- 92% or greater efficiency (20 to 100% load)
- RoHS compliant
