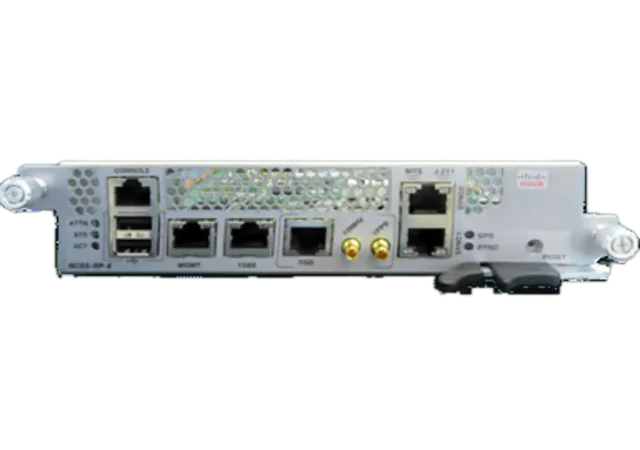

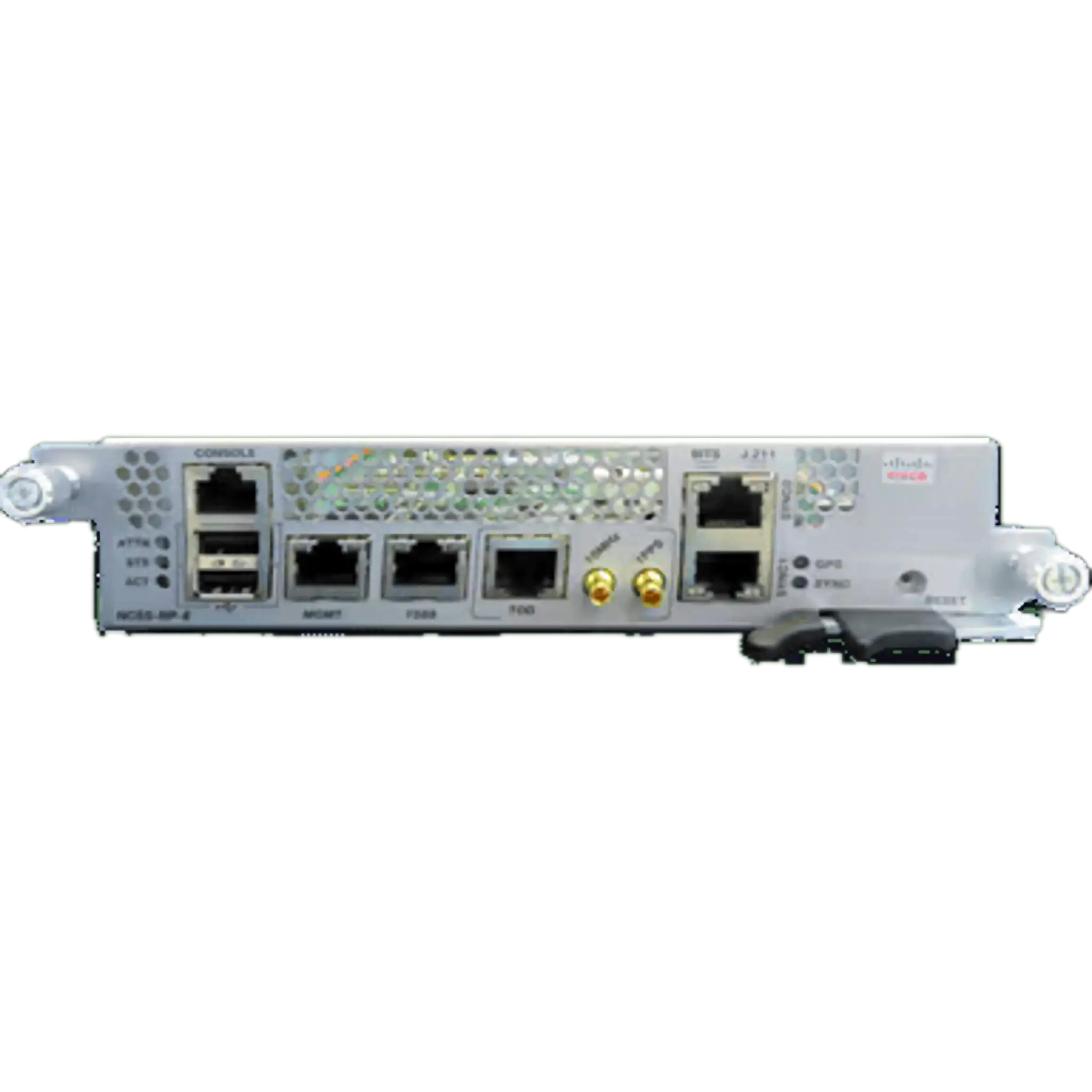

NC55-RP-E is a NCS 5500 Series Route Processor with SyncE

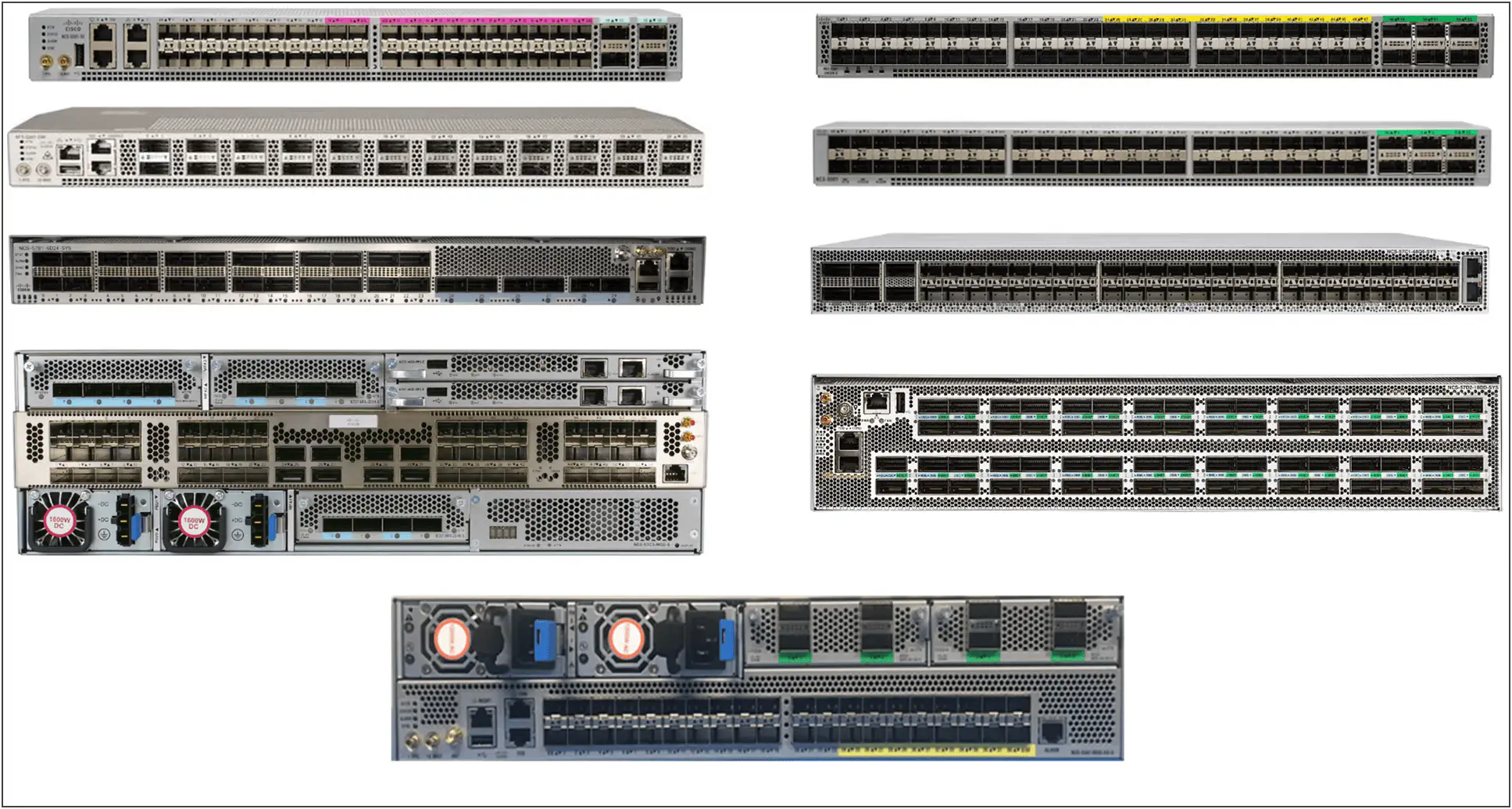

The Cisco Network Convergence System (NCS) 5500 modular chassis series includes the Cisco NCS 5504 modular chassis, Cisco NCS 5508 modular chassis and the Cisco NCS 5516 modular chassis . The Cisco NCS 5504 supports up to four line cards, six switch fabric cards, two route processors, two system controllers, three fan trays, and four power supplies. The Cisco NCS 5508 supports up to eight line cards, six switch fabric cards, two route processors, two system controllers, three fan trays, and eight power supplies. The Cisco NCS 5516 supports up to 16 line cards, 6 switch fabric cards, 2 route processors, 2 system controllers, 3 fan trays, and 10 power supplies.

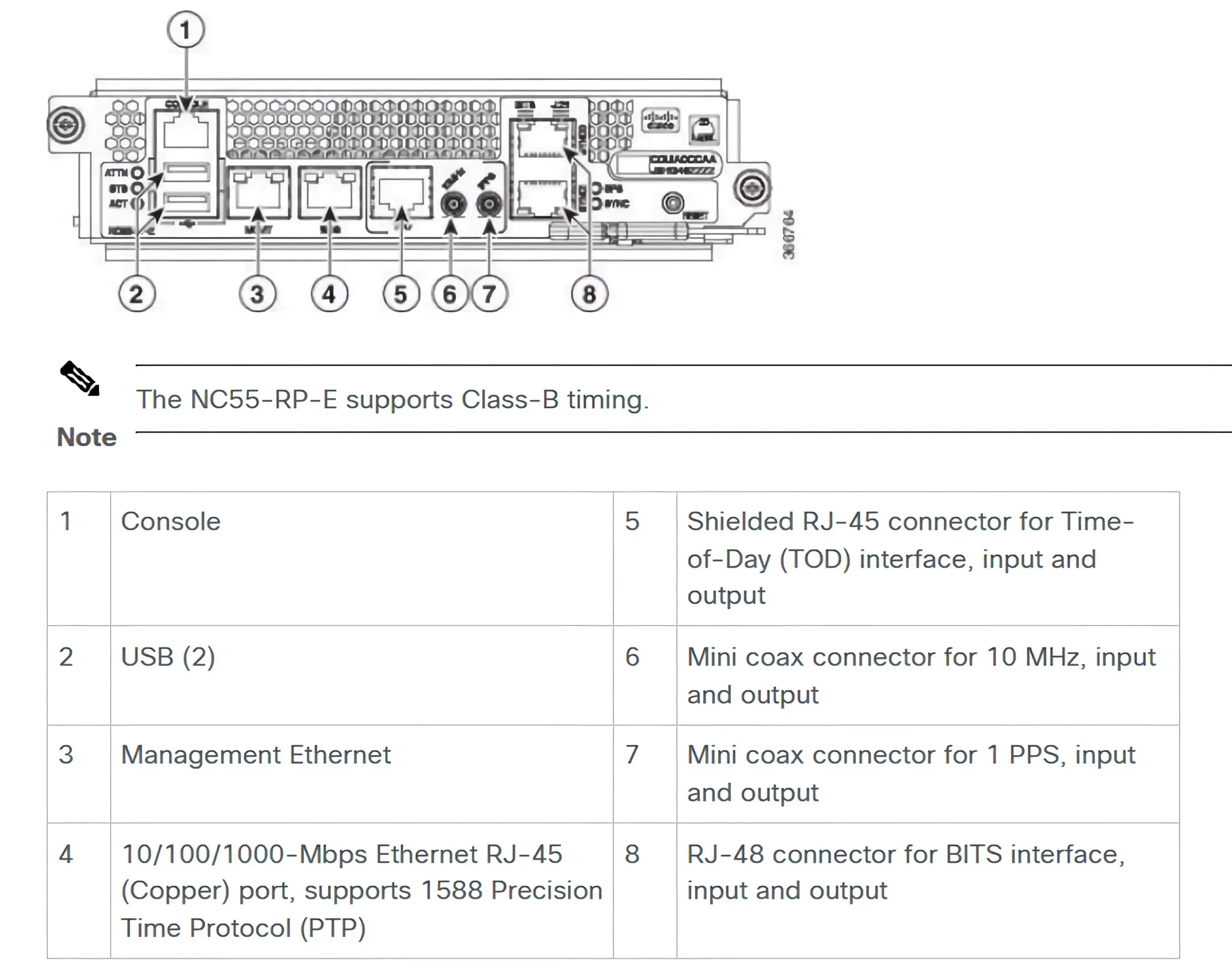

The NC55-RP-E is based on a newer generation Intel six-core CPU operating at 1.9 GHz with 32 GB of RAM and 240-GB Flash SSD storage. It provides two independent BITS ports, in/out – RJ48 connector port, and IEEE 1588 support: Copper 10/100/1000-Mbps RJ-45 Ethernet port, GPS ToD (RS422), 1-pps RS422 or 1.0/2.3 50-ohm RF connector, in/out, and 10-MHz 1.0/2.3 50-ohm RF connector, in/out.
