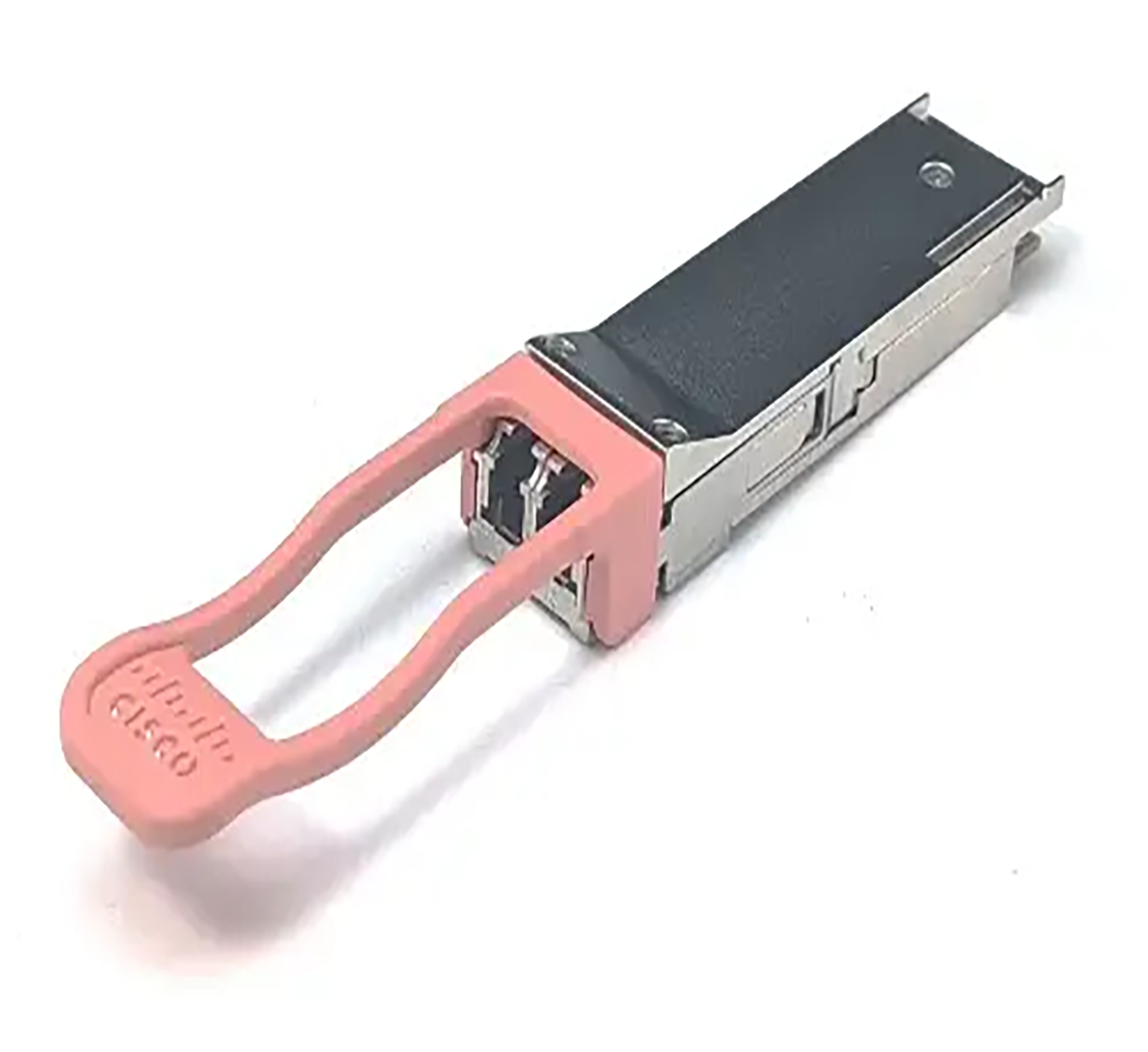

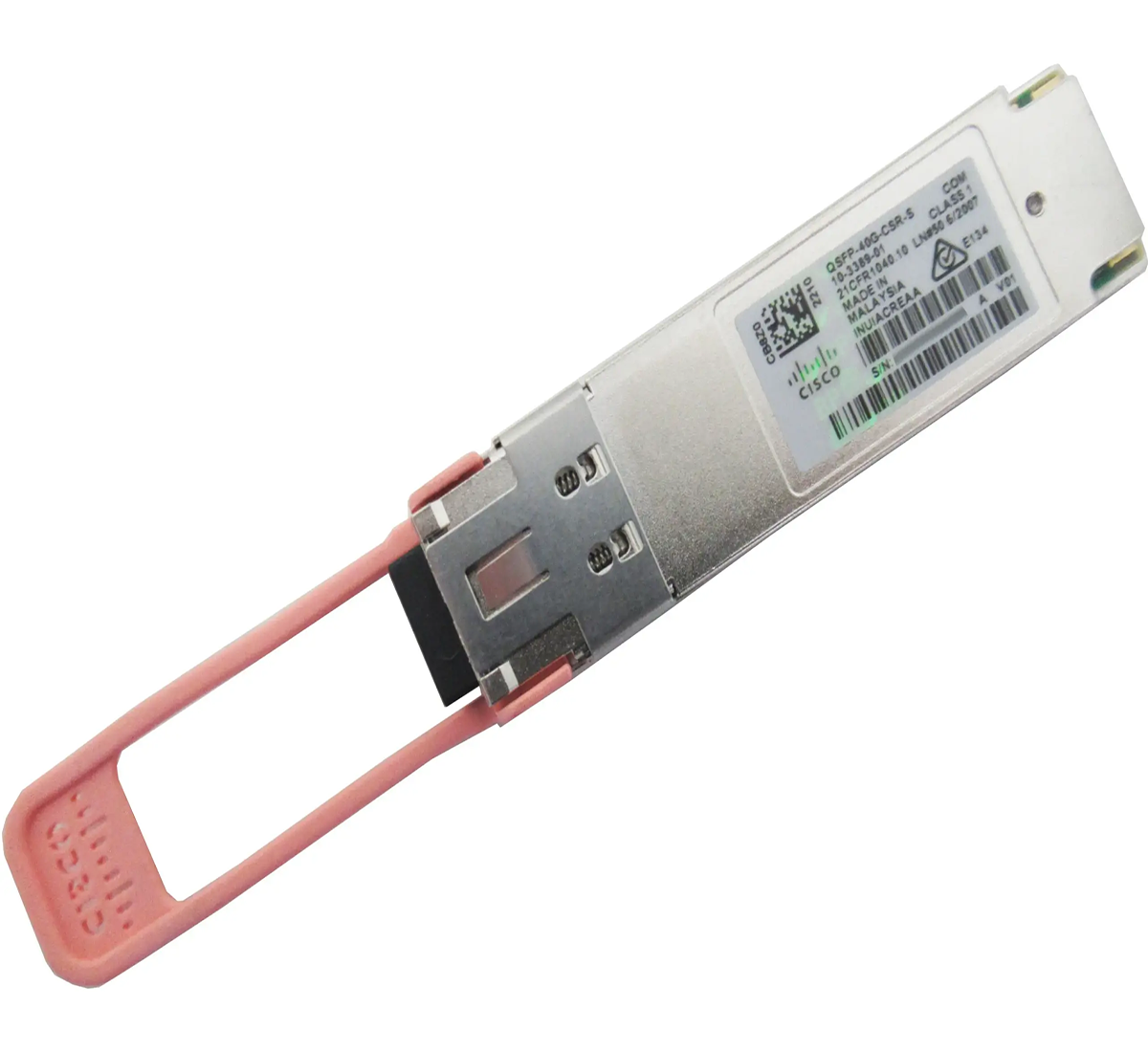

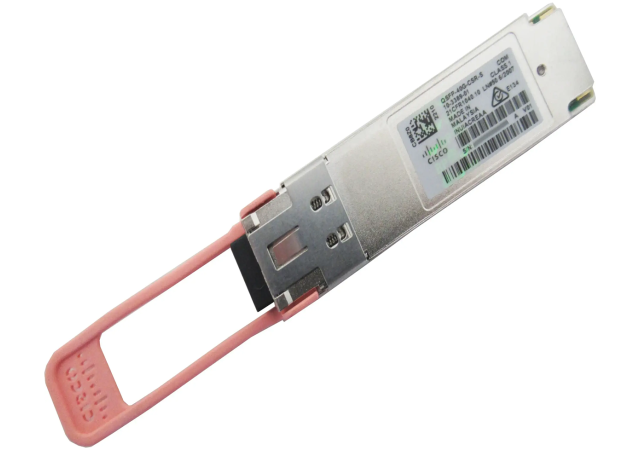

Cisco QSFP-40G-CSR-S - QSFP Transceiver

Cisco Part Number: QSFP-40G-CSR-S is a Cisco 40GBASE-CSR QSFP Module for Duplex MMF

Cisco's 40GBASE QSFP (Quad Small Form-Factor Pluggable) selection offers a diverse array of options catering to the needs of customers seeking high-density and energy-efficient 40 Gigabit Ethernet connectivity solutions. These modules are ideally suited for a range of environments including data centers, high-performance computing networks, enterprise core and distribution layers, as well as service provider applications.

Key Features and Advantages of Cisco QSFP Modules:

• Easily swappable input/output device designed to seamlessly integrate with 40 Gigabit Ethernet Cisco QSFP ports, allowing for hassle-free installation and replacement.
• Compatibility with other 40GBASE interfaces adhering to IEEE standards, ensuring interoperability where applicable, thus providing flexibility and ease of integration into existing setups.
• Rigorously certified and meticulously tested on Cisco QSFP 40G ports to ensure unrivaled performance, superior quality, and exceptional reliability, guaranteeing peace of mind for users.
• Boasting a high-speed electrical interface that complies with the rigorous IEEE 802.3ba standard, these modules deliver efficient and dependable data transmission capabilities.
• Utilizing the QSFP form factor along with a 2-wire I2C communication interface and other low-speed electrical interfaces compliant with SFF 8436 and QSFP Multisource Agreement (MSA), these modules ensure compatibility and ease of deployment across various networking environments.

Cisco QSFP-40G-CSR-S (S-Class)

The QSFP-40G-CSR-S is a pluggable optical transceiver with a duplex LC connector interface used for connectivity using MultiMode Fiber (MMF). The Cisco 40GBASE-CSR Modules support link lengths of 300, 400 meters, and 440m respectively, on laser-optimized OM3, OM4 and OM5 multimode fibers. Customers benefit through the reuse of their existing 10 gigabit duplex MMF infrastructure as they migrate to 40 Gigabit Ethernet, while maintaining the same supported link distances as 10G Ethernet on OM3 and OM4. Additionally customers can benefit from improved reach on OM5. Each QSFP-40G-CSR-S operates at four different wavelengths. Each of the four wavelengths operates at 10G over existing duplex multimode fiber using standard LC connectors. The Cisco QSFP-40G-CSR-S transceiver does not support FCoE.
